Medium temperature: ≤200 ℃
Operation method: manual
Medium: water, steam
Caliber: DN15-300
Pressure: 1.6mpa
Body material: Stainless steel
Connection method: flange

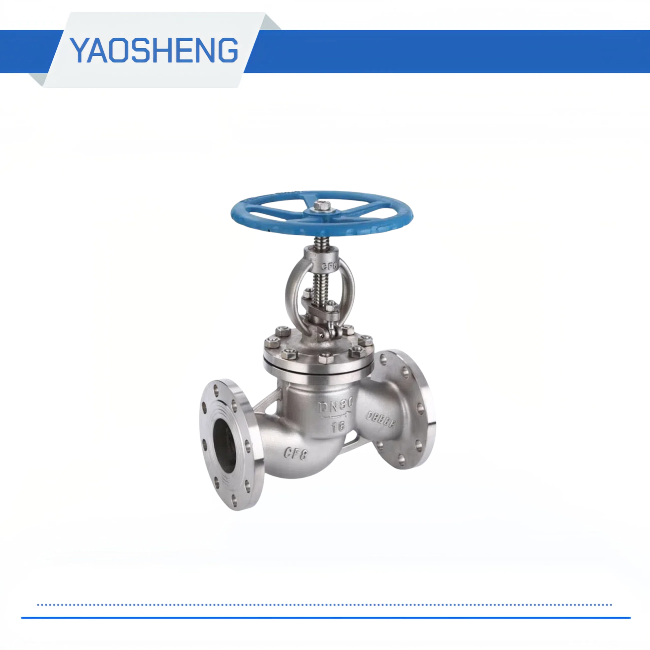

| Flanged Globe Valve Main parts and materials | |||
| Parts name | Material | ||
| Valve body Bonnet | Stainless steel | ||
| Disc | Stainless steel | ||
| Stem | Stainless steel | ||
| Yoke nut | Brass | ||
| Flanged Globe Valve Function and specification | |||||||||
| Type | Nominal pressure （mpa） | Testing pressure（mpa） | Suitable temperature | Suitable medium | |||||
| Strength (Water) | Enclose (Water) | ||||||||
| J41T-16 | 1.6 | 2.40 | 1.80 | ≤200℃ | Water，Vapour | ||||
| Flanged Globe Valve Outline and connecting measurement | |||||||||
| Type | Nominal DN(mm） | Measurement（mm） | |||||||
| L | D | D1 | D2 | b-f | z-φd | H1 | |||
| J41W-16P | 15 | 130 | 95 | 65 | 45 | 14-2 | 4*φ14 | 200 | |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4*φ14 | 200 | ||
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4*φ14 | 220 | ||
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4*φ18 | 245 | ||
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4*φ18 | 260 | ||
| 50 | 230 | 160 | 125 | 100 | 16-3 | 4*φ18 | 285 | ||
| 65 | 290 | 180 | 145 | 120 | 18-3 | 4*φ18 | 300 | ||
| 80 | 310 | 195 | 160 | 135 | 20-3 | 8*φ18 | 350 | ||
| 100 | 350 | 215 | 180 | 155 | 20-3 | 8*φ18 | 365 | ||
| 125 | 400 | 245 | 210 | 185 | 22-3 | 8*φ18 | 430 | ||
| 150 | 480 | 280 | 240 | 210 | 24-3 | 8*φ23 | 450 | ||
| 200 | 600 | 335 | 295 | 265 | 26-3 | 12*φ23 | 510 | ||
