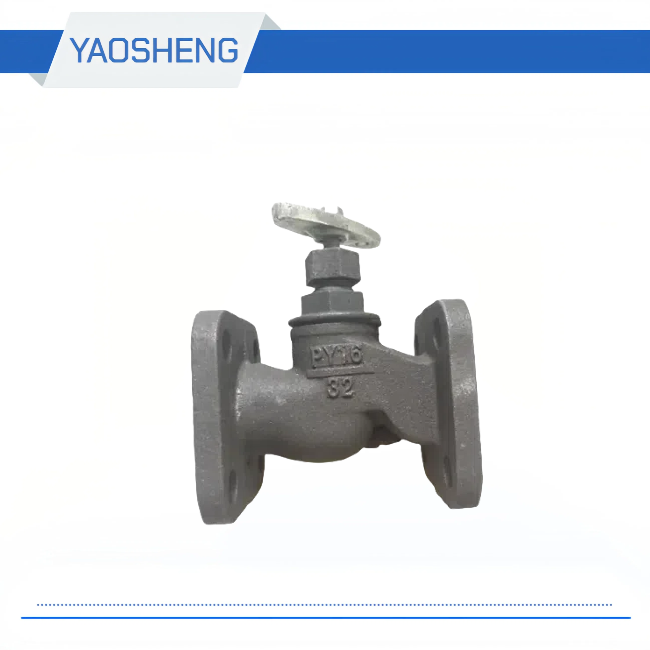

Medium temperature: ≤200 ℃
Operation method: manual
Medium: water, steam
Caliber: DN25-50
Pressure: 1.6mpa
Body material: gray cast iron
Connection method: square flange
| Square Flange Globe Valve Main parts and materials | |||
| Parts name | Material | ||
| Valve body Bonnet | Grey iron | ||
| Disc | Grey iron | ||
| Stem | Carbon steel | ||
| Square Flange Globe Valve Function and specification | |||||||||
| Type | Nominal pressure （mpa） | Testing pressure（mpa） | Suitable temperature | Suitable medium | |||||
| Strength (Water) | Enclose (Water) | ||||||||
| J41T-16 | 1.6 | 2.40 | 1.80 | ≤200℃ | water, steam | ||||
| Square Flange Globe Valve Outline and connecting measurement | |||||||||
| Type | Nominal DN(mm） | Measurement（mm） | |||||||
| L | L1 | b | f | D1 | D2 | 4xφ14 | |||
| J41T-16 | 25 | 120 | 16 | 14 | 2 | φ85 | φ68 | 4*φ14 | |
| 32 | 140 | 17 | 16 | 2 | φ100 | φ78 | 4*φ18 | ||
| 40 | 170 | 21 | 16 | 2 | φ110 | φ88 | 4*φ18 | ||
| 50 | 200 | 22 | 16 | 3 | φ125 | φ102 | 4*φ18 | ||
