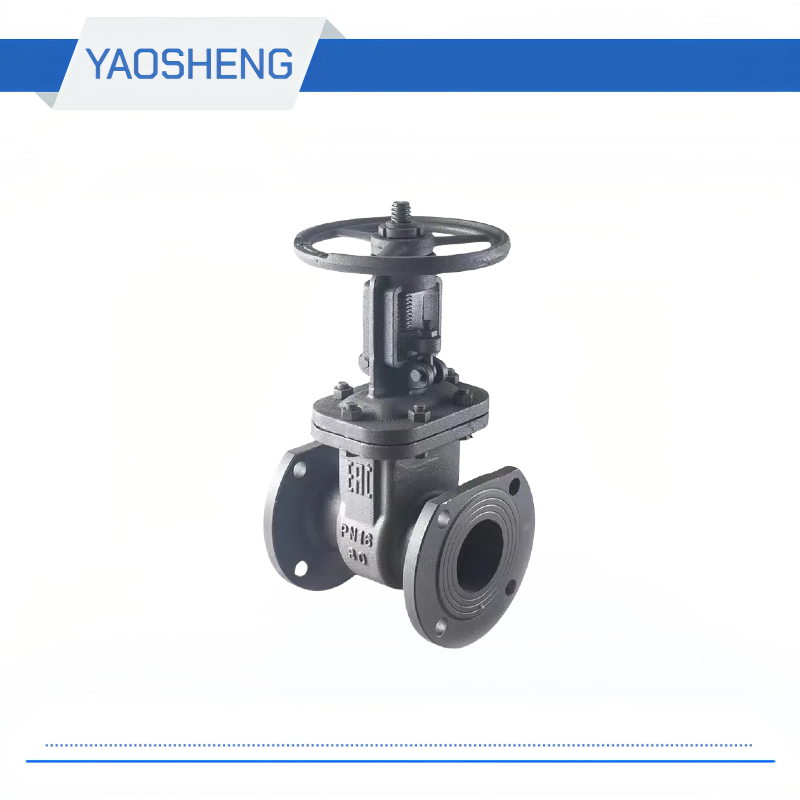

Gost Light Type Steel Gate Valve Z41H-16C

Material: WCB

Medium temperature: -29-200 ° C

Mode of operation: manual/Electric/Pneumatic

Medium: water, steam, oil, etc.

Caliber: DN40-1000

Valve type: gate valve

Connection method: flange

Body material: WCB

Working pressure: 1.6Mpa

Inquire Now Next Product

Gost Light Type Steel Gate Valve Z41H-16C Main parts and materials
Parts name		Material
Valve body Bonnet		WCB
Disc		WCB
Stem		WCB
Yoke nut		Ductile iron

Gost Light Type Steel Gate Valve Z41H-16C Function and specification
Type	Nominal pressure	Testing pressure		Suitable temperature	Suitable medium
		Strength (Water)	Enclose (Water)
Z41H-16C	1.6	2.4	1.76	—29—200℃	Water，Vapour，Oil

Outline and connecting measurement
Type	DN (mm)	L	D	D1	D2	b-f	Z×φd	H	H1	DO	Weight (KG)
Z41H-16C	50	180	160	125	102	16-2	4×φ18	285	340	180	12
	80	210	195	160	133	18-2	4×φ18	337	419	215	19
	100	230	215	180	158	19-2	8×φ18	383	486	245	26
	150	280	280	240	212	23-2	8×φ22	522	665	275	46
	200	330	335	295	268	26-3	12×φ22	647	836	300	70
	250	450	400	355	320	27-3	12×φ26	815	1090	450	108
	300	500	445	410	370	27-3	12×φ26	886	1138	450	150
	400	600	580	525	480	32-2	16×φ30	1241	1604	500	-
