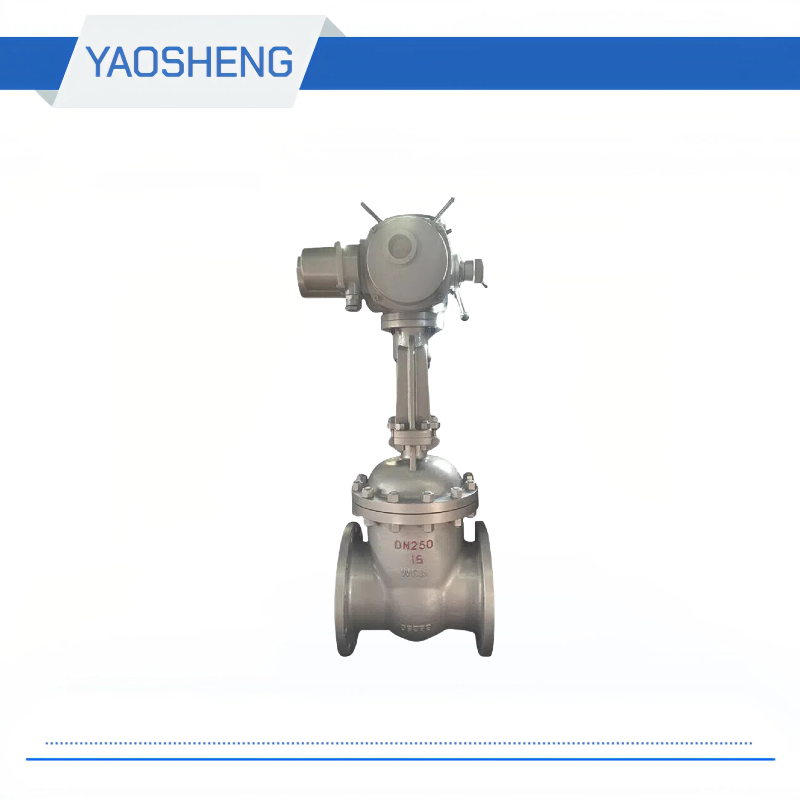

Z941H-16C / 25 DN 50-1000mm cast steel electric gate valve

Material: WCB

Medium temperature: -29-425 ℃

Operation mode: electric

Medium: water, steam, oil, etc.

Caliber: DN50-1000

Valve Type: Gate Valve

Connection method: flange / welding

Body material: WCB

Working pressure: 1.6-6.4Mpa

This product is suitable for all kinds of pipes that are fully open and fully closed, not for throttling.

Inquire Now Next Product

Outer dimensions and connection dimensions of cast steel electric gate valves
model	Nominal diameter (mm)	Size (mm)
model	Nominal diameter (mm)	L	D	D1	D2	bf	z-φd	H
Z941H-16C	50	250	160	125	100	16-3	4 * Φ18	310
	65	265	180	145	120	18-3	4 * Φ18	373
	80	280	195	160	135	20-3	8 * Φ18	435
	100	300	215	180	155	20-3	8 * Φ18	445
	125	325	245	210	185	22-3	8 * Φ18	570
	150	350	280	240	210	24-3	8 * Φ23	630
	200	400	335	295	265	26-3	12 * Φ23	735
	250	450	405	355	320	30-3	12 * Φ25	969
	300	500	460	410	375	30-4	12 * Φ25	976
	350	550	520	470	435	34-4	16 * Φ25	1120
	400	600	580	525	485	36-4	16 * Φ30	1452
	450	650	640	585	545	40-4	20 * Φ30	1541
	500	700	705	650	608	44-4	20 * Φ34	1880
	600	800	840	770	718	48-5	20 * Φ36	1874
	700	900	910	840	788	50-5	24 * Φ41	2083
	800	1000	1020	950	898	52-5	24 * Φ41	2400
	900	1100	1120	1050	998	54-5	28 * Φ41	2950
	1000	1200	1255	1170	1110	56-5	28 * Φ48	3245

Material of main parts of cast steel electric gate valve
Part Name		material
Body / bonnet		WCB
gate		WCB
Valve stem		WCB / 2cr13
Stem nut		Ductile iron / brass

Z941H-16C / 25 DN 50-1000mm cast steel electric gate valve

Performance specifications of cast steel electric gate valve
model	Nominal pressure (mpa)	Test pressure (mpa)		proper temperature	Applicable medium
		Strength (water)	Sealed (water)
Z941H-16C	1.6	2.4	1.76	—29—425 ° C	Water, steam, oil, etc.
Z941H-25C	2.5	3.8	2.8

Tips:

1.Compact structure, reasonable design, good valve rigidity, smooth passage.

2.The use of flexible graphite packing, reliable sealing, light and flexible operation

Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,Water treatment and etc.

Product Advantages:

1.We have Sand or Precision casting technology,So we can as your drawing design and production.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding.

6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

7.The kind valve we usually use Wooden cases to package, We also can according to specific customer's requests.
