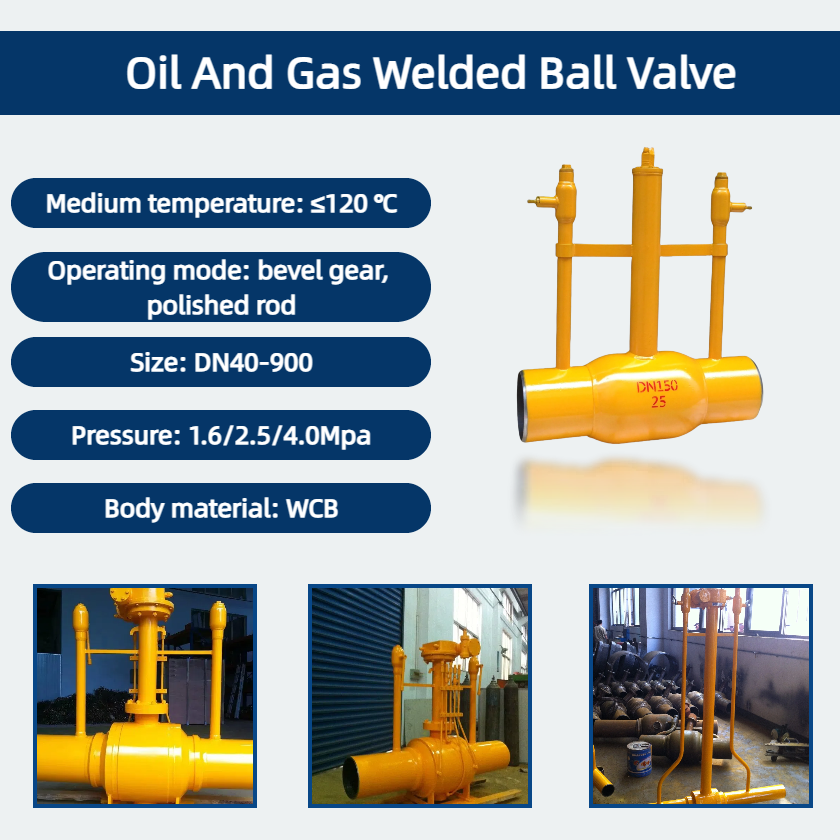

Medium temperature: ≤120 ℃
Operating mode: bevel gear, polished rod
Medium: natural gas, gas, gas and medium that does not react with carbon steel
Size: DN40-900
Pressure: 1.6/2.5/4.0Mpa
Body material: WCB
Connection method: welding

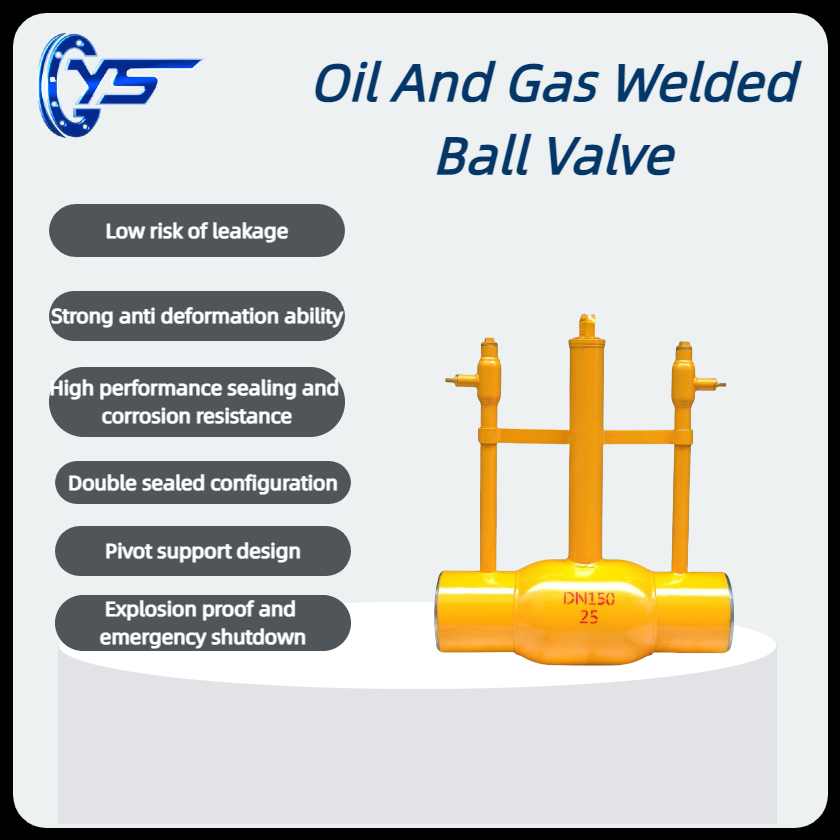

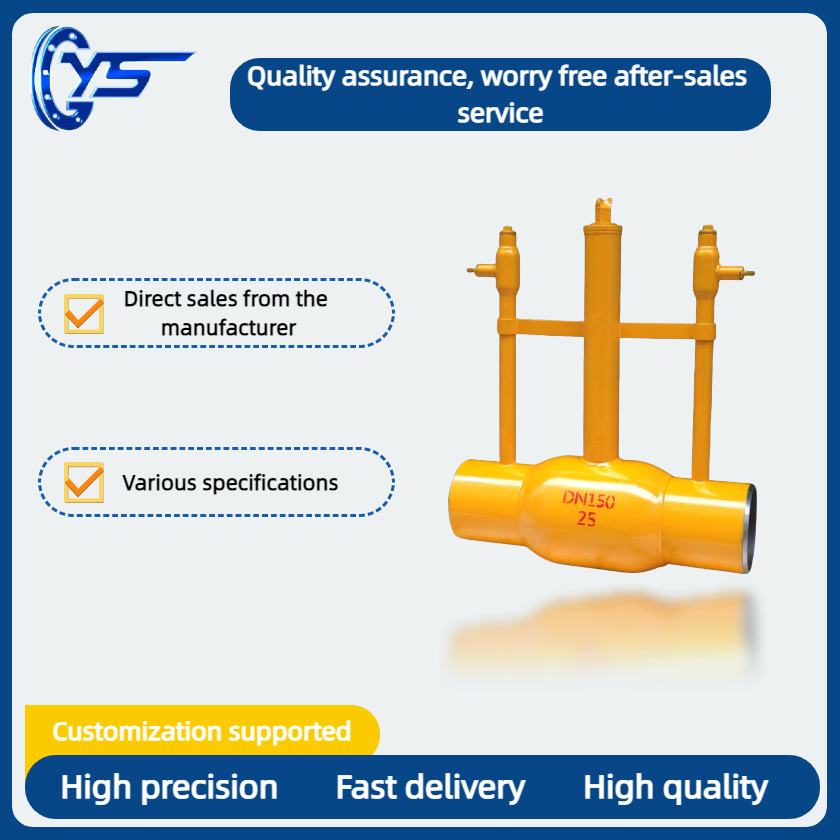

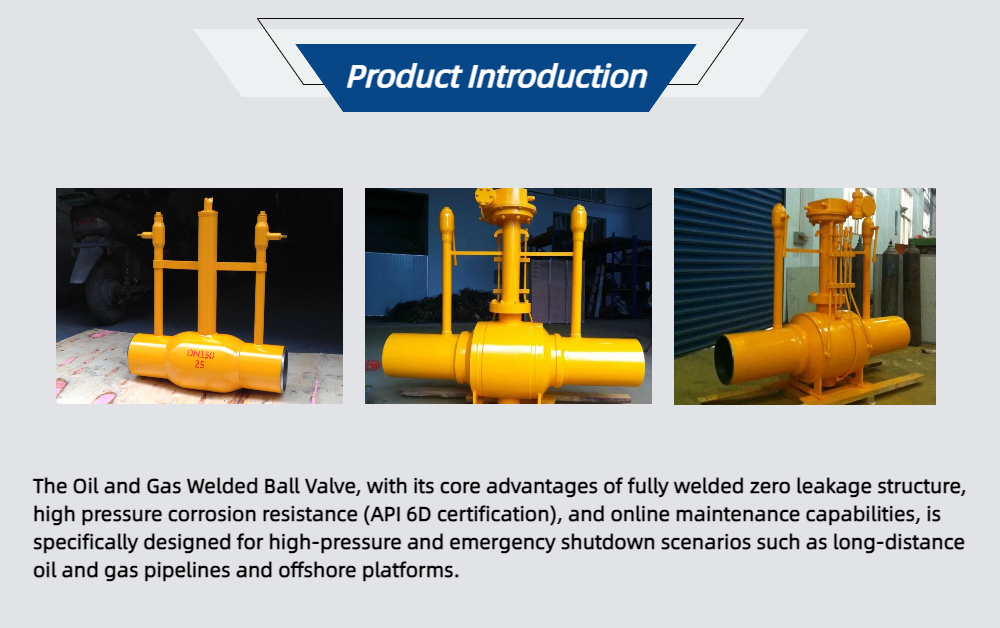

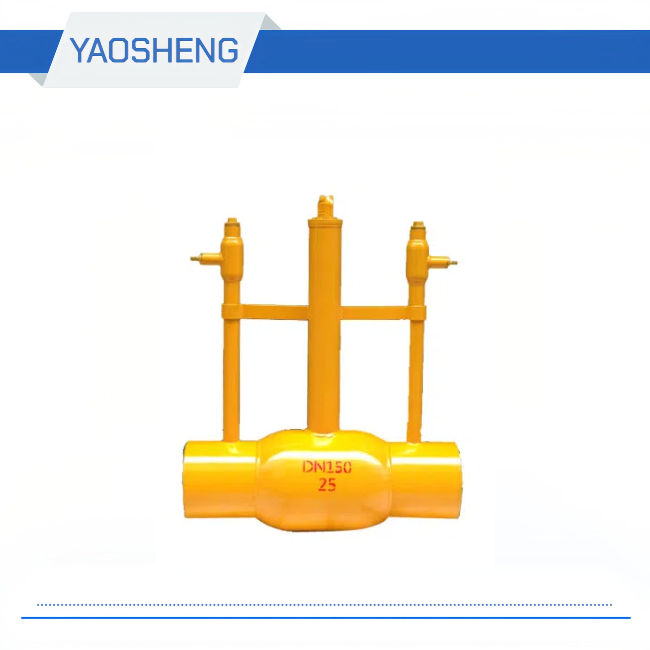

Gas all- welded ball valves are widely used in urban gas pipelines,our products advantages:
1.Small construction spece, low construction cost;
2.The operator does not need to enter the well,The valve can be operated with a T-handle on the well, and it's not danger of choking;
3.According to the depth of underground gas pipeline, the valve can be provided with different lengthening height.
Different port connections can be designed;
4.The valve with double diverging structure makes the pipe safer and more convernient for installation,debugging and maintenance.
5.All welded structure, no leakage part, The possibility of maintenance is relatively low, the valve weight is lighter.
Oil And Gas Welded Ball Valve Material of main parts | |||
Part Name | material | ||
Valve body | WCB | ||
ball | stainless steel | ||
Valve stem | stainless steel | ||
seal | PTFE |
Oil And Gas Welded Ball Valve Dimensions and connection dimensions | ||||||||
PN | Nominal diameter (mm) | Size (mm) | ||||||
A | L | D1 | d | D (GB) | ||||
25 | 40 | 300 | 1000 | 88.9 | 38 | 45 | ||
50 | 300 | 1000 | 114.3 | 50 | 57 | |||
65 | 300 | 1000 | 139.7 | 65 | 73 | |||
80 | 300 | 1000 | 168.3 | 80 | 89 | |||
100 | 300 | 1000 | 177.8 | 100 | 108 | |||
125 | 400 | 1000 | 219.1 | 125 | 133 | |||
150 | 400 | 1000 | 273 | 150 | 159 | |||
100 | 300 | 1000 | 177.8 | 100 | 108 | |||
125 | 400 | 1000 | 219.1 | 125 | 133 | |||
150 | 400 | 1000 | 273 | 150 | 159 | |||
200 | 400 | 1100 | 355.6 | 200 | 219 | |||
250 | 500 | 1100 | 426 | 250 | 273 | |||
300 | 500 | 1230 | 508 | 290 | 325 | |||
350 | 500 | 1400 | 558.8 | 350 | 377 | |||
400 | 500 | 1550 | 680 | 400 | 426 | |||
500 | 600 | 1700 | 830 | 500 | 529 | |||
600 | 700 | 2000 | 1000 | 600 | 630 | |||
700 | 700 | 2195 | 1150 | 700 | 720 | |||
800 | 800 | 2300 | 1252 | 770 | 820 | |||
900 | 900 | 2550 | 1456 | 874 | 920 |
