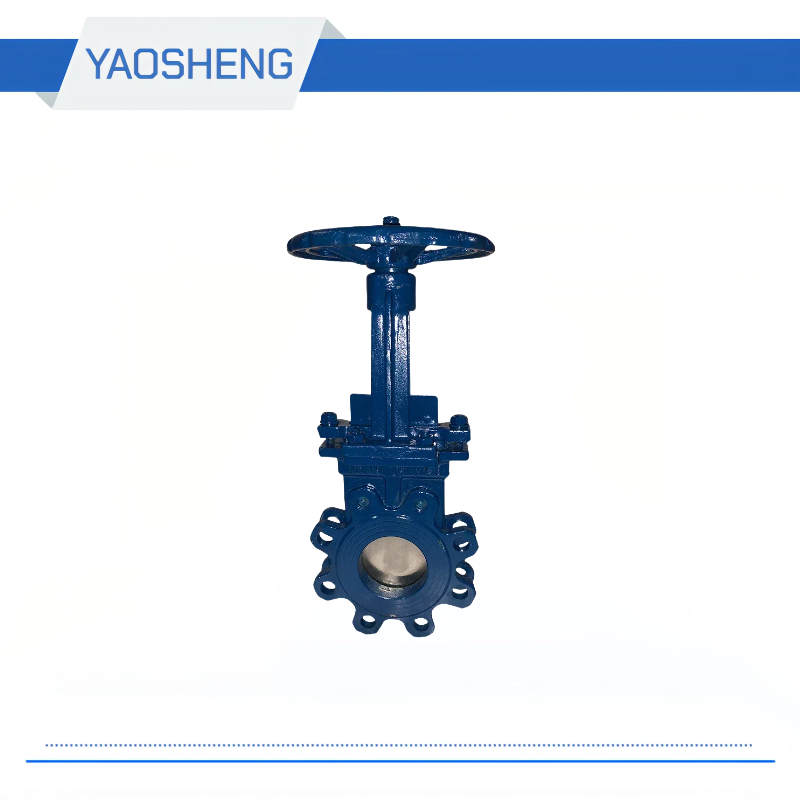

DN 50-600mm Rising Stem Knife Gate Valve

Medium temperature: ≤350 ℃
Operation mode: manual / electric / bevel gear / pneumatic / sprocket / electro-hydraulic
Medium: residue water mixture, etc.
Caliber: DN50-900
Pressure: 1.0-1.6mpa
Body material: WCB / stainless steel
Connection method: flange type (plum blossom)

Inquire Now Next Product

Product Details

Rising Stem Knife Gate Valve Main parts and materials
Part name	Material
Valve body	WCB/stainless steel
Shutter	stainless steel
Valve stem	WCB/stainless steel
filler	graphite

Rising Stem Knife Gate Vatve Function and specification
model	Nominal pressure (mpa)	Test pressure (mpa)		proper temperature	Applicable medium
		Strength (water)	Sealed (water)
PZ73H-10	1.0	1.5	1.1	≤350℃	Slag water mixture
PZ73H-16	1.6	2.4	1.8

Rising Stem Knite Gate Valve Outline and connecting measurement
model	Nominal diameter(mm)	Size (mm)
model	Nominal diameter(mm)	L	D	D1	D2	Z-φd
PZ73H-10	50	50	160	125	100	4-φM16
	65	50	180	145	120	4-φM16
	80	50	195	160	135	8-φM16
	100	50	215	180	155	8-φM16
	125	50	245	210	185	8-φM26
	150	60	280	240	210	8-φM20
	200	60	340	295	265	8-φM20
	250	70	390	350	320	12-φM20
	300	80	440	400	368	12-φM20
	400	89	565	515	482	16-φM22
	450	89	615	265	532	20-φM22
	500	114	670	620	585	20-φM22
	600	114	780	725	685	20-φM27
PZ73H-16	50	50	160	125	99	4-φM16
	65	50	185	145	120	4-φM16
	80	50	200	160	135	8-φM16
	100	50	220	180	155	8-φM16
	125	50	250	210	185	8-φM16
	150	60	285	240	210	8-φM20
	200	60	340	295	265	12-φM20
	250	70	405	355	320	12-φM24
	300	80	460	410	375	12-φM24
