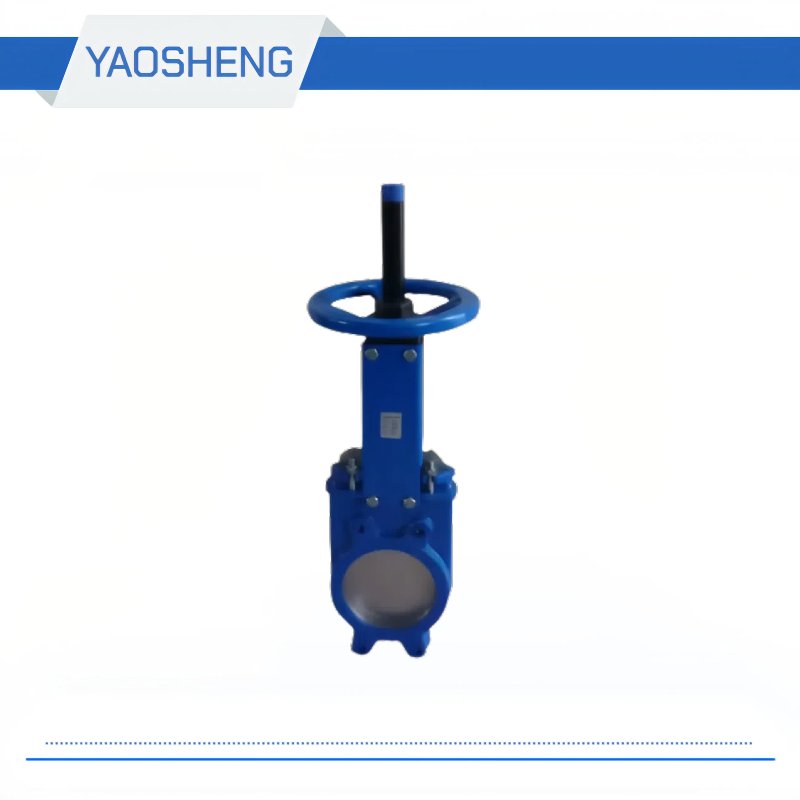

Z73 / 43X-10 / 16Q slurry gate knife gate valve

Medium temperature: ≤90 ℃
operation: manual / electric / bevel gear / pneumatic
medium: liquid solid particle content of not more than 4%
Diameter: DN50-2000
Pressure: 1.0-1.6mpa
Body Material: GGG40 ( Ductile iron, stainless steel, duplex stainless steel)
Connection: Wafer

Seated material: Metal/EPDM/Nitril/Viton/Silicone

Optional pressure rate:10Bar/150lbs

Inquire Now Next Product

Product Details

Z73 / 43X-10 / 16Q slurry gate knife gate valve Material of main parts
Parts name		Material
Valve body		GGG40
gate		stainless steel
Valve stem		2Cr13
Sealing ring		NBR / EPDM

slurry gate knife gate valve Performance specifications
Type	Nominal pressure (mpa)	test pressure		proper temperature	Applicable medium
		Shell pressure test	Sealed pressure test
Z73 / 43X-10Q	1.0	Working pressure * 1.5 times	Working pressure * 1.1 times	≤90 ℃	Liquid solid particles not exceeding 4%
Z73 / 43X-16Q	1.6

slurry gate knife gate valve Dimensions and connection dimensions
model	Nominal diameter (mm)	Size (mm)
model	Nominal diameter (mm)	L	B	C	D	E	H	H1
Z43 / 73X -10 / 16Q	50	48	135	90	105	119	295	360
	65	48	155	90	115	135	335	415
	80	51	165	120	124	150	360	455
	100	51	195	122	135	180	400	515
	125	57	220	127	160	203	455	595
	150	57	220	136	175	235	510	675
	200	60	270	136	205	280	585	805
	250	70	335	160	240	347	695	965
	300	76	385	165	275	395	765	1085
	400	89	525	168	365	530	995	1415
	450	89	565	200	435	570	1150	1620
	500	114	630	240	475	680	1250	1770
	600	114	735	255	580	780	1460	2080
