  • H42H-16/25/40 DIN Lifting Check Valve

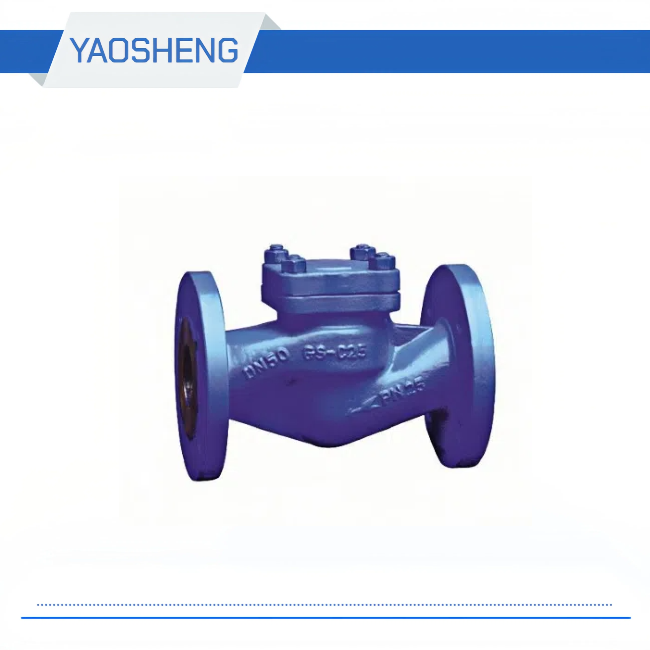

H42H-16/25/40 DIN Lifting Check Valve

Medium temperature: —196—600 ° C
Medium: water, steam, oil, etc.
Caliber: DN15-400mm
Pressure: 1.6-4.0mpa
Body material: GS-C25 CF8 CF8M
Connection method: flange
Structure length: EN558
Flange connection size: EN1092-1
Design Standard: EN 12516

Product Details

DIN Lifting Check Valve Material of main parts
Parts Name  material
Body / bonnetGS-C25 CF8 CF8M
Valve seat13Cr ss304 ss316 stellite
Disc13Cr ss304 ss316+stellite
GasketFlexible graphite + stainless steel、PTFE

DIN Lifting Check Valve Application: hot oil system, steam system, hot and cold water system.

H42H-16/25/40 DIN Lifting Check Valve

DIN Lifting Check Valve Performance specifications
ModelNominal Pressure       (mpa)Test Pressure(mpa)(water)Proper TemperatureApplicable Medium
StrengthSeal
H42H-16/25/401.6/2.5/4.01.5*PN1.1*PN—196—600℃Water,Vapour,Oil


DIN Lifting Check Valve Dimensions and connection dimensions
ModelNominal Diameter
(mm)
size(mm)
LDD1D2b-fz-φd
H42H-161513095654516-24*φ14
20150105755818-24*φ14
25160115856818-24*φ14
321801401007818-24*φ18
402001501108818-34*φ18
5023016512510220-34*φ18
6529018514512220-34*φ18
8031020016013820-38*φ18
10035022018015820-38*φ18
12540025021018822-38*φ18
15048028524021222-38*φ22
20060034029526824-312*φ22
25073040535532026-312*φ26
30085046041037828-412*φ26
35098052047043830-416*φ26
400110058052549032-416*φ30
H42H-251513095654516-24*φ14
20150105755818-24*φ14
25160115856818-24*φ14
321801401007818-24*φ18
402001501108818-34*φ18
5023016512510220-34*φ18
6529018514512222-38*φ18
8031020016013824-38*φ18
10035023519016224-38*φ22
12540027022018826-38*φ26
15048030025021828-38*φ26
20060036031027830-312*φ26
25073042537033532-312*φ30
30085048543039534-416*φ30
35098055549045038-416*φ33
400110062055050540-416*φ36
H42H-401513095654516-24*φ14
20150105755818-24*φ14
25160115856818-24*φ14
321801401007818-24*φ18
402001501108818-34*φ18
5023016512510220-34*φ18
6529018514512222-34*φ18
8031020016013824-38*φ18
10035023519016224-38*φ18
12540027022018826-38*φ22
15048030025021828-38*φ26
20060037532028534-312*φ30
25073045038534538-312*φ33
30085051545041042-416*φ33
35098058051046546-416*φ36
400110066058553550-416*φ39
