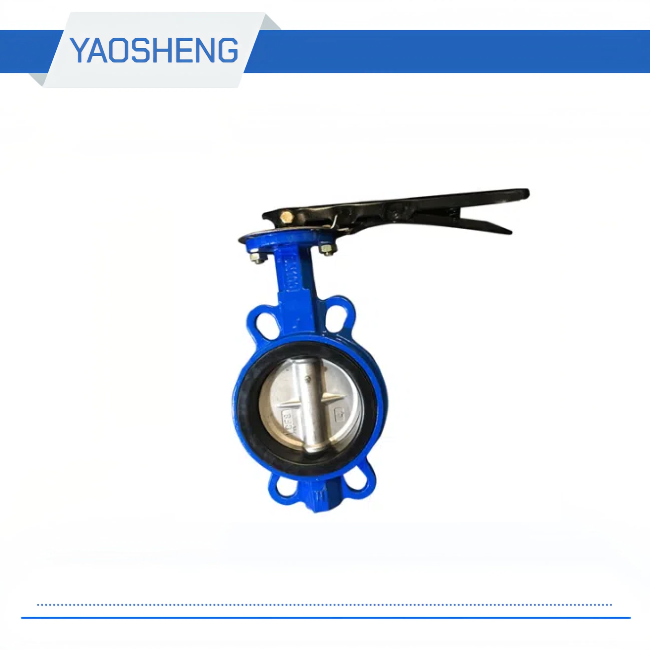

D71X-10 / 10Q / 16 / 16Q Wafer Centerline Butterfly Valve

Medium temperature: ≤80 ℃
Medium: water
Size: DN40-1000
pressure: 1.0-1.6mpa
valve body material: gray cast iron / nodular cast iron
connection method: wafer type

Product Details

 Wafer Centerline Butterfly Valve Dimensions and connection dimensions
modelNominal diameter
(mm)
Size (mm)
φHBZ-φdL
D71X-10 / 16401101602344-φ2143
501251702344-φ2343
651451782614-φ2346
801602022618-φ1846
100180222259.54-φ2352
1252102333124-φ2356
1502402573124-φ2656
2002952953604-φ2660

 Wafer Centerline Butterfly Valve Material of main parts
Part Namematerial
Valve bodyGrey cast iron / nodular cast iron
ButterflyDuctile iron / SS
Valve shaftCarbon steel
Sealing ringEPDM

D71X-10 / 10Q / 16 / 16Q Wafer Centerline Butterfly Valve

 Wafer Centerline Butterfly Valve Performance specifications
modelNominal pressure
(mpa)
Test pressure (mpa)proper temperatureApplicable medium
Strength (water)Sealed (water)
D71X-101.0 1.50 1.10 ≤80 ℃water
D371X-10
D71X-161.6 2.40 1.80 ≤80 ℃water
D371X-16

Tips:

1.Compact structure, reasonable design, good valve rigidity, smooth passage.

2.The use of flexible graphite packing, reliable sealing, light and flexible operation



Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.



Product Advantages:



1.We have Sand or Precision casting technology,So we can as your drawing design and production.

2.Customers' logos are available cast on the valve body.

3. All our casting with tempering procedure before Processing.

4. Use the CNC lathe during whole process.

5. The disc sealing surface use plasma welding machine welding.

6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

7.The kind valve we usually use Bags to package, We also can according to specific customer's requests.

8. Production Obviously advantages:

1)Wafter center line butterfly valve D71X/D371X-10/10Q/16/16Q

2)High- Performance & Multi-Material valve parts

3)OEM & ODM

4)All service life, easy assembly

5)Multi-color as per customer choice

6)Multi standard & Connection



Company Advantages:

1.We are manufacturer Since 1992.

2.CE,API,ISO approved.

3.Fast delivery.

4.Low price with high quality.

5.Professional work Team!
