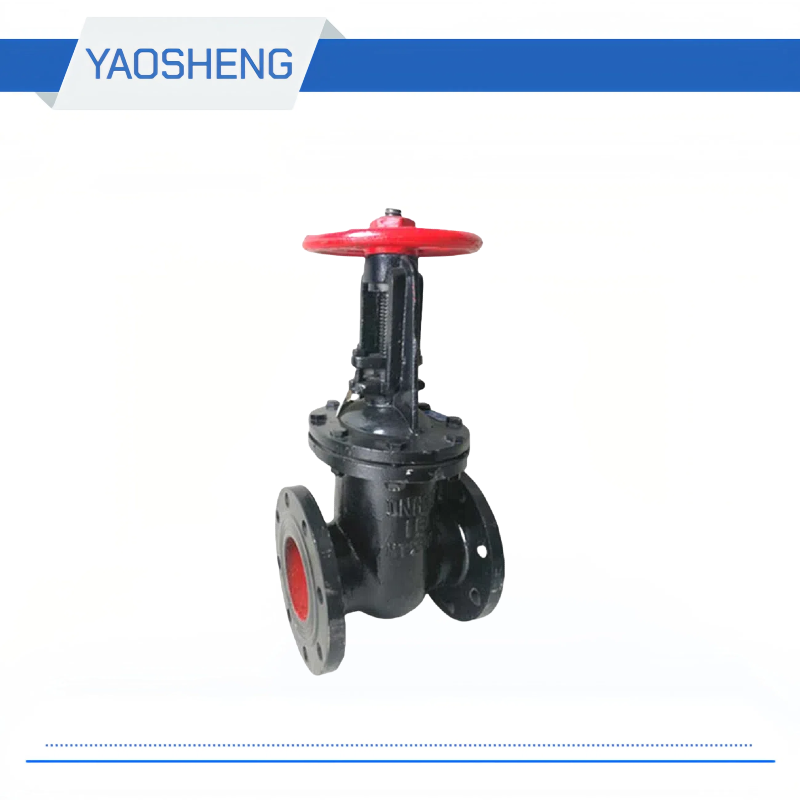

Gost Cast Iron Gate Valve Z44T-10/Z41T-16

Material: gray/ cast iron/ HT200
Medium temperature: ≤200°C
Mode of operation: manual/ Electric
Medium: water, steam
Caliber: DN50-1200
Valve type: gate valve
Connection method: flange
Working pressure: 1.0/1.6Mpa

Inquire Now Next Product

Product Details

Gost cast lron Gate Valve Z44T-10/241T-16 Main parts and material
Part name	Material
Valve body Bonnet	Grey iron
Disc	Grey iron
Stem	WCB
Yoke nut	Ductile iron

Gost cast lron Gate Valve Z44T-10/241T-16 Function and specification
model	Nominal pressure (mpa)	Test pressure(mpa)		proper temperature	Applicable medium
		Strength (water)	Sealed (water)
Z41/44T-10	1.00	1.50	1.10	≤200°C	Water

Gost cast lron Gate Valve Z44T-10/241T-16 Outline and connecting measurement
model	Nominal diameter(mm)	Size(mm)
model	Nominal diameter(mm)	L	D	D1	D2	b-f	z-φd
Z41/44T-10	50	180	160	125	100	17-2	4-φ18
	80	210	195	160	135	19-2	4-φ18
	100	230	215	180	155	19-2	8-φ18
	150	280	200	240	210	21-3	8-φ23
	200	330	340	295	265	23-3	12-φ23
	250	450	395	350	320	26-3	12-φ23
	300	500	445	400	368	26-3	12-φ23
