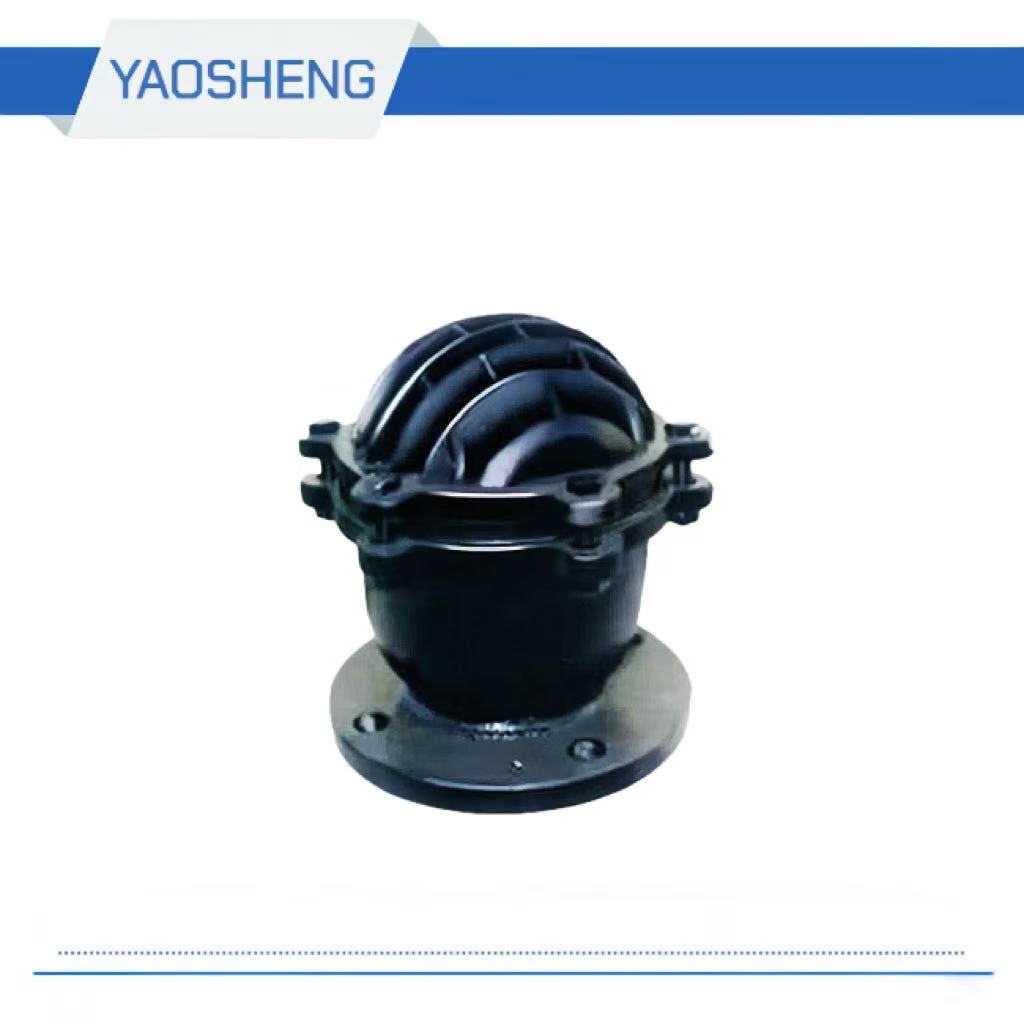

Medium temperature: ≤50 ℃
Medium: water
caliber: DN50-500mm
pressure: 0.25-0.6mpa
body material: gray cast iron
connection method: flange
| H42X-2.5 Lifting Foot Valve Material of main parts | |||
| Part Name | material | ||
| Valve body | grey cast iron | ||
| Bonnet | grey cast iron | ||
| Disc | grey cast iron | ||
| Sealing ring | rubber | ||
| Performance Specifications of Lifting Foot Valve H42X | |||||||
| model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
| strength | seal | ||||||
| H42X-2.5 | 0.25 | 0.40 | 0.28 | ≤50 ℃ | water | ||
| Lifting Foot Valve H42X Dimensions and Connection Dimensions | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| H | D | D1 | D2 | bf | z-φd | ||
| H42X-2.5 | 50 | 120 | 140 | 110 | 90 | 12-2 | 4 * φ14 |
| 65 | 135 | 160 | 130 | 110 | 12-2 | 4 * φ14 | |
| 80 | 165 | 185 | 150 | 125 | 14-2 | 4 * φ18 | |
| 100 | 175 | 205 | 170 | 145 | 14-2 | 4 * φ18 | |
| 125 | 210 | 235 | 200 | 175 | 14-2 | 8 * φ18 | |
| 150 | 250 | 260 | 225 | 200 | 16-3 | 8 * φ18 | |
| 200 | 280 | 315 | 280 | 255 | 18-3 | 8 * φ18 | |
| 250 | 390 | 370 | 335 | 310 | 18-3 | 12 * φ18 | |
| 300 | 410 | 435 | 395 | 362 | 19-3 | 12 * φ23 | |
| 350 | 520 | 485 | 445 | 412 | 25-3 | 12 * φ23 | |
