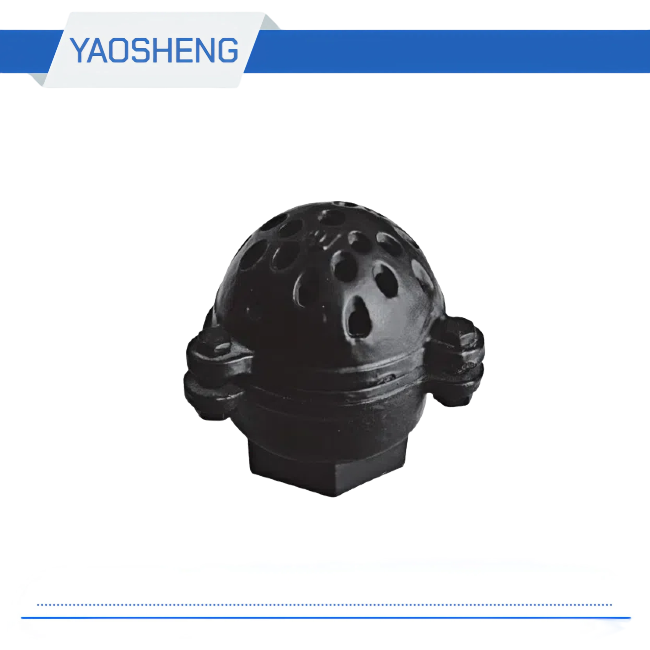

H12X-2.5 Thread Lifting Foot Valve

H12X-2.5 Thread Lifting Foot Valve Material of main parts
Part Name		material
Valve body		grey cast iron
Bonnet		grey cast iron
Disc		grey cast iron
Sealing ring		rubber

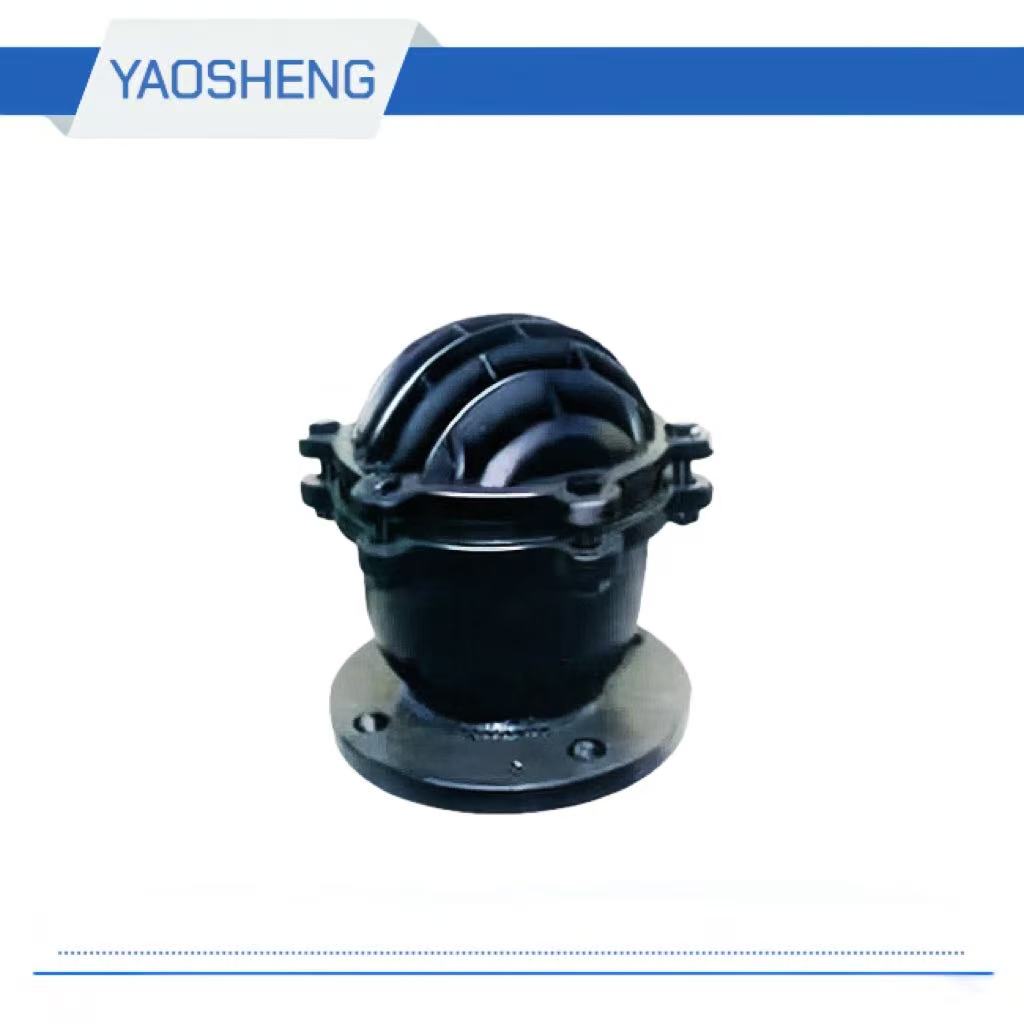

Performance Specifications of Lifting Foot Valve H42X
model	Nominal pressure (mpa)	Test pressure (mpa)		proper temperature	Applicable medium
		strength	seal
H42X-2.5	0.25	0.40	0.28	≤50 ℃	water

Lifting Foot Valve H42X Dimensions and Connection Dimensions
model	Nominal diameter (mm)	Size (mm)
model	Nominal diameter (mm)	H	D	D1	D2	bf	z-φd
H42X-2.5	50	120	140	110	90	12-2	4 * φ14
	65	135	160	130	110	12-2	4 * φ14
	80	165	185	150	125	14-2	4 * φ18
	100	175	205	170	145	14-2	4 * φ18
	125	210	235	200	175	14-2	8 * φ18
	150	250	260	225	200	16-3	8 * φ18
	200	280	315	280	255	18-3	8 * φ18
	250	390	370	335	310	18-3	12 * φ18
	300	410	435	395	362	19-3	12 * φ23
	350	520	485	445	412	25-3	12 * φ23
