Medium temperature: ≤200 ℃
Operation mode: bevel gear / denso
Medium: water, oil, steam
Caliber: DN200-1200
Pressure: 1.6-2.5mpa
Body material: WCB
Connection method: welding
| Full Welded Ball Valve Main parts and materials | |||
| Parts name | Material | ||
| Valve body | WCB | ||
| Ball | stainless steel | ||
| Valve stem | stainless steel | ||
| seal | PTFE | ||
| Full Welded Ball Valve Function and specification | ||||||||
| Type | Nominal pressure （mpa） | Testing pressure（mpa） | Suitable temperature | Suitable medium | ||||
| Strength (Water) | Enclose (Water) | |||||||
| Q361F-16C | 1.6 | 2.4 | 1.8 | ≤200℃ | Water, oil, steam | |||
| Q361F-25C | 2.5 | 3.8 | 2.8 | ≤200℃ | Water, oil, steam | |||

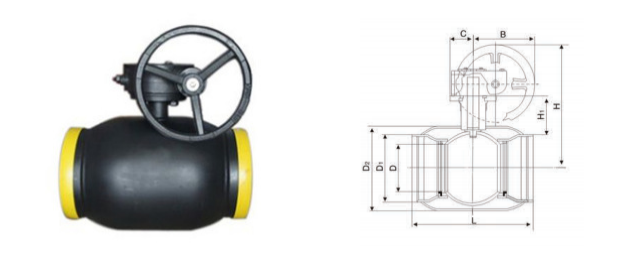

| Full Welded Ball Valve Outline and connecting measurement | ||||||||
| PN | Nominal DN(mm） | Measurement（mm） | ||||||
| L | D | D1 | D2 b-f | H | ||||
| 16 25 | 200 | 400 | 150 | 219.1 | 273 | 315 | ||
| 250 | 530 | 200 | 273 | 355.6 | 398 | |||
| 300 | 635 | 250 | 323.9 | 457 | 465 | |||
| 350 | 686 | 300 | 377 | 508 | 530 | |||
| 400 | 762 | 350 | 426 | 595 | 530 | |||
| 450 | 838 | 450 | 480 | 595 | 530 | |||
| 500 | 914 | 400 | 530 | 680 | 630 | |||
| 600 | 1067 | 500 | 630 | 810 | 762 | |||
| 700 | 1346 | 59 | 730 | 982 | 830 | |||
| 800 | 1524 | 690 | 830 | 1130 | 910 | |||
| 900 | 1727 | 790 | 930 | 1285 | 1025 | |||
| 1000 | 1900 | 890 | 1016 | 1405 | 1165 | |||
| 1200 | 2050 | 1190 | 1219 | 1576 | 1289 | |||
