  • DN 8-100mm Brass Gate Valve

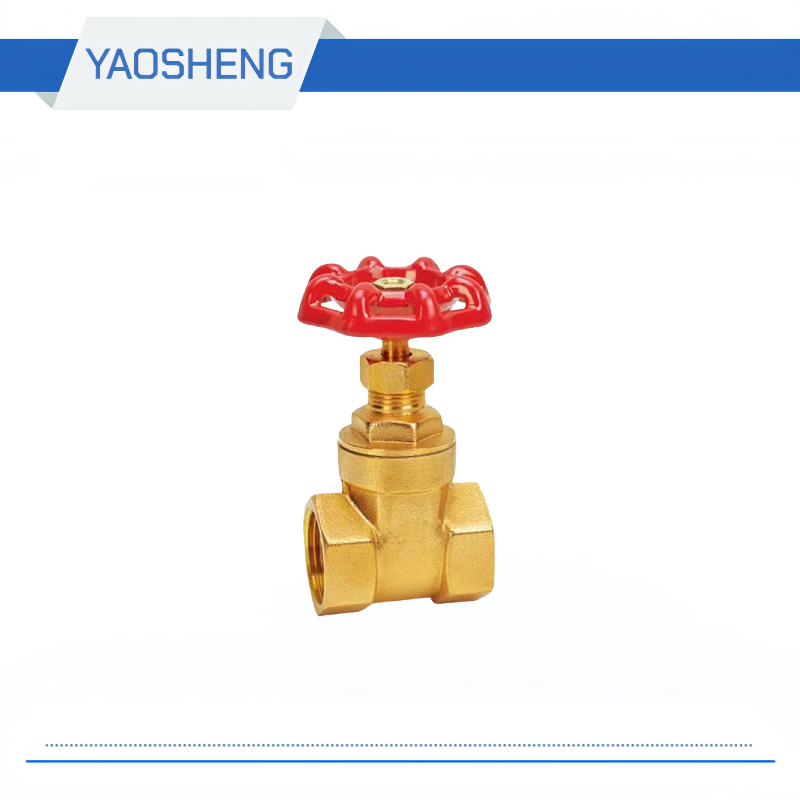

DN 8-100mm Brass Gate Valve

Material: brass
Medium temperature: -10-120 ° C
Mode of operation: manual
Medium: water, oil, non-corrosive, non-corrosive gas
Caliber: DN15-100
Valve type: gate valve
Connection method: thread
Working pressure: 1.6Mpa

Product Details

Brass Gate Valve Z15W-16 Main parts and materials
The main material Brass
Nominal pressure1.6mpa
Suitable temperature—10℃≤T≤120℃
Suitable mediumWater, oil,
non-corrosive,
non-corrosive gas
ThreadNPT/BST/ISO228

DN 8-100mm Brass Gate Valve

Brass Gate Valve Z15W-16 Outline and connecting measurement
TypeNominal
DN(mm)
SIZEMeasurement(mm)
LBHD
Z15W-16151/24112.567.553
203/44416.57553
2515120.58057.5
321 1/4532796.572
401 1/258.533111.572
50264.543126.578
652 1/276.55415697
80377.565180108
100491.586.5226.5126


Tips:

  1. Compact structure, reasonable design, good valve rigidity, smooth passage.

   2.The use of flexible graphite packing, reliable sealing, light and flexible operation



Applications:

Industrial applications: Petroleum, Chemical, Paper Making, Fertilizer, Coal Mining,water treatment and etc.



Product Advantages:

  1. We have Sand or Precision casting technology,So we can as your drawing design and production.

  2. Customers' logos are available cast on the valve body.

  3. All our casting with tempering procedure before Processing.

  4. Use the CNC lathe during whole process.

  5. The disc sealing surface use plasma welding machine welding.

  6. Every valve must be tested before delivery from the factory, only qualified ones can be shipped.

  7.The kind valve we usually use Pallets to package, We also can according to specific customer's requests.


Company Advantages:

1.We are manufacturer Since 1992.

2.CE,API,ISO approved.

3.Fast delivery.

4.Low price with high quality.

5.Professional work Team!
