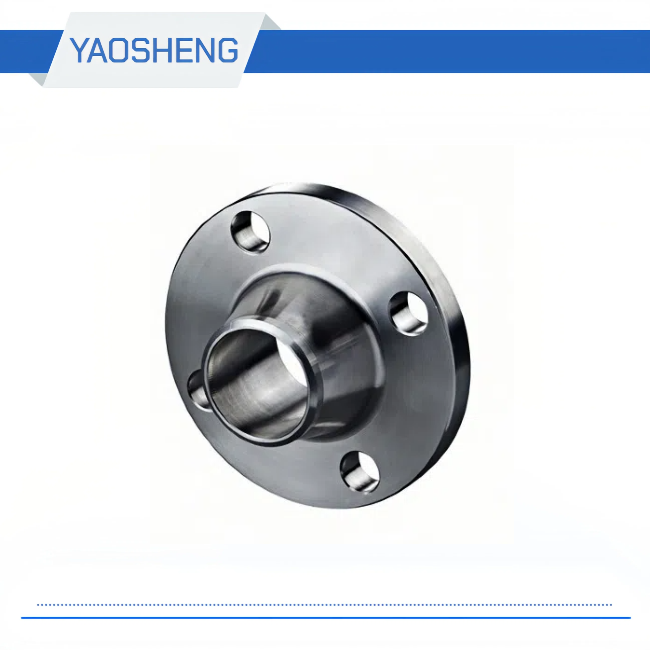

Process:Forging+machining+heating Treatment
Style:customized
Surface:rust proof,black/yellow paint,galvanized
Standard ASME B 16.5
Material support: Q235, 16MN, A105, F304, F316, F321
Pressure: 150LB-2500LB
DN:1/2"-24"
| Nominal Pipe Slze | Outsie Diam | Diam at Base of Hub | O.D. of Raisd Face | Thick-ness | BORE | LENGTH THRU HUB | Diam. ofHub at Bevel | Radus of Fillet | Threa dLength | |||||
| Welding Neck Socket Welding | Slip-on Socket Weldig | Lap Joint 12 | Counter Bore Min Threadd Min | Welding Neck | Slip-on Threaded SocketWelding | Lap Joint | ||||||||
| D | x | G | t | B1 | B2 | B3 | B | T1 | T2 | T3 | A | R | Q | |
| 1/2 3/4 1 | 95 117 124 | 38.1 47.8 53.8 | 35.1 42.9 50.8 | 14.2 15.7 17.5 | 15.7 20.8 26.7 | 22.4 27.7 34.5 | 22.9 28.2 35.1 | 23.6 29.0 35.8 | 52.3 57.2 62.0 | 22.4 25.4 26.9 | 22.4 25.4 26.9 | 21.3 26.7 33.5 | 3.0 3.0 3.0 | 15.7 15.7 17.5 |
| 11/4 11/2 2 | 133 155 165 | 63.5 69.9 84.1 | 63.5 73.2 91.9 | 19.1 20.6 22.4 | 35.1 40.9 52.6 | 43.2 49.5 62.0 | 43.7 50.0 62.5 | 44.5 50.5 63.5 | 65.0 68.3 69.9 | 26.9 30.2 33.3 | 26.9 30.2 33.3 | 42.2 48.3 60.5 | 4.8 6.4 7.9 | 20.6 22.4 28.4 |
| 21/2 3 31/2 | 191 210 229 | 100.1 117.3 133.4 | 104.6 127.0 139.7 | 25.4 28.4 30.2 | 62.7 78.0 90.2 | 74.7 90.7 103.4 | 75.4 91.4 104.1 | 76.2 92.2 104.9 | 76.2 79.2 81.0 | 38.1 42.9 44.5 | 38.1 42.9 44.5 | 73.2 88.9 101.6 | 7.9 9.7 9.7 | 31.8 31.8 36.6 |
4 5 6 | 254 279 318 | 146.1 177.8 206.2 | 157.2 185.7 215.9 | 31.8 35.1 36.6 | 102.4 128.3 154.2 | 116.1 143.8 170.7 | 116.8 144.5 171.5 | 117.6 144.5 171.5 | 85.9 98.6 98.6 | 47.8 50.8 52.3 | 47.8 50.8 52.3 | 114.3 141.2 168.4 | 11.2 11.2 12.7 | 36.6 42.9 46.0 |
| 8 10 12 | 381 445 521 | 260.4 320.5 374.7 | 269.7 323.9 381.0 | 41.1 47.8 50.8 | 202.7 254.5 304.8 | 221.5 276.4 327.2 | 222.3 277.4 328.2 | 222.3 276.4 328.7 | 111.3 117.3 130.0 | 62.0 66.5 73.2 | 62.0 95.3 101.6 | 219.2 273.1 323.9 | 12.7 12.7 12.7 | 50.8 55.6 60.5 |
| 14 16 18 | 584 648 711 | 425.5 482.6 533.4 | 412.8 469.9 533.4 | 53.8 57.2 60.5 | 336.6 387.4 438.2 | 359.2 410.5 461.8 | 360.2 411.2 462.3 | 360.4 411.2 462.0 | 142.7 146.1 158.8 | 76.2 82.6 88.9 | 111.3 120.7 130.0 | 355.6 406.4 457.2 | 12.7 12.7 12.7 | 63.5 68.3 69.9 |
| 20 24 | 775 914 | 587.2 701.5 | 584.2 692.2 | 63.5 69.9 | 489.0 590.6 | 513.1 616.0 | 514.4 616.0 | 512.8 614.4 | 162.1 168.1 | 95.3 106.4 | 139.7 152.4 | 508.0 609.6 | 12.7 12.7 | 73.2 82.6 |
| Nominal Pipe Slze | Depth of Socket | DRILLING | BOLTING | APPROXIMATE WEIGHT | ||||||||||||||
| Bolt Clrcle Diam | Number of Holes | Diam of Holes | Diam of Bolts (inch) | Machine Bolt Length | Stud Bolt Length | Welding Neck | Slip-on and Threaded | LapJoin | Blind | Socket Welding | ||||||||
| Y | Raise dFace | Raised Face | Ring Joint | |||||||||||||||
| Kg | IP | kg | IP | Kg | IP | Kg | IP | Kg | IP | |||||||||
| 1/2 3/4 1 | 9.7 11.2 12.7 | 66.5 82.6 88.9 | 4 4 4 | 15.7 19.1 19.1 | 1/2 5/8 5/8 | 57.2 63.5 63.5 | 63.5 76.2 76.2 | 76.2 88.9 88.9 | 0.80 1.40 1.64 | 1.70 3.00 3.60 | 0.62 1.30 1.50 | 1.40 2.50 3.10 | 0.61 1.15 1.38 | 1.30 2.50 3.00 | 0.65 1.40 1.50 | 1.40 2.50 3.00 | 0.62 1.34 1.55 | 1.40 2.60 3.20 |
| 11/4 11/2 2 | 14.2 15.7 17.5 | 98.6 114.3 127.0 | 4 4 8 | 19.1 22.4 19.1 | 5/8 3/4 5/8 | 69.9 76.2 76.2 | 82.6 88.9 88.9 | 95.3 101.3 101.6 | 2.10 3.06 3.50 | 4.50 6.70 7.50 | 1.70 2.60 3.30 | 3.70 5.60 6.20 | 1.66 2.52 2.79 | 3.70 5.60 6.20 | 2.80 2.80 3.30 | 3.90 5.90 6.80 | 1.76 2.69 3.14 | 3.80 5.80 6.50 |
| 21/2 3 31/2 | 19.1 20.6 22.4 | 149.4 168.1 184.2 | 8 8 8 | 22.4 22.4 22.4 | 3/4 3/4 3/4 | 82.6 88.9 95.3 | 101.6 108.0 108.0 | 114.3 120.7 127.0 | 5.31 7.32 8.20 | 11.70 16.10 18.00 | 4.50 5.90 7.72 | 9.40 12.80 17.00 | 4.22 5.78 7.72 | 9.30 12.70 17.00 | 5.40 7.00 9.53 | 10.50 14.90 21.00 | 4.74 6.29 | 9.90 13.70 |
4 5 6 | 23.9 23.9 26.9 | 200.2 235.0 269.7 | 8 8 12 | 22.4 22.4 22.4 | 3/4 3/4 3/4 | 95.3 108.0 108.0 | 114.3 120.7 120.7 | 127.0 133.4 139.7 | 11.30 15.12 20.00 | 24.90 33.30 43.40 | 10.13 13.00 17.04 | 22.30 27.70 35.40 | 10.07 12.52 15.95 | 22.20 27.60 35.20 | 12.00 16.00 22.00 | 26.50 35.20 46.70 | ||
| 8 10 12 | 31.8 33.3 39.6 | 330.2 387.4 450.9 | 12 16 16 | 25.4 28.4 31.8 | 7/8 1 11/8 | 120.7 139.7 146.1 | 139.7 158.8 171.5 | 152.4 171.5 184.2 | 30.48 43.74 64.41 | 67.20 96.40 142.00 | 26.00 34.16 51.26 | 54.00 75.30 113.00 | 24.37 39.92 58.70 | 53.70 88.00 129.40 | 36.00 55.34 80.00 | 76.30 122.00 174.00 | ||
| 14 16 18 | 41.4 44.5 49.3 | 514.4 571.5 628.7 | 20 20 24 | 31.8 35.1 35.1 | 11/8 11/4 11/4 | 158.8 165.1 171.5 | 177.8 190.5 196.9 | 190.5 203.2 209.6 | 88.30 115.00 143.00 | 194.70 249.00 305.00 | 75.00 94.00 109.00 | 159.00 199.30 240.30 | 83.46 106.14 133.95 | 184.00 234.00 295.30 | 110.00 139.25 178.00 | 236.00 307.00 396.00 | ||
| 20 24 | 54.1 63.5 | 685.8 812.8 | 24 24 | 35.1 41.1 | 11/4 11/2 | 184.2 203.2 | 203.21 228.6 | 222.3 254.0 | 175.00 260.00 | 369.00 519.00 | 136.00 245.00 | 300.00 449.70 | 157.65 240.40 | 347.60 530.00 | 223.17 355.00 | 492.00 754.00 | ||
