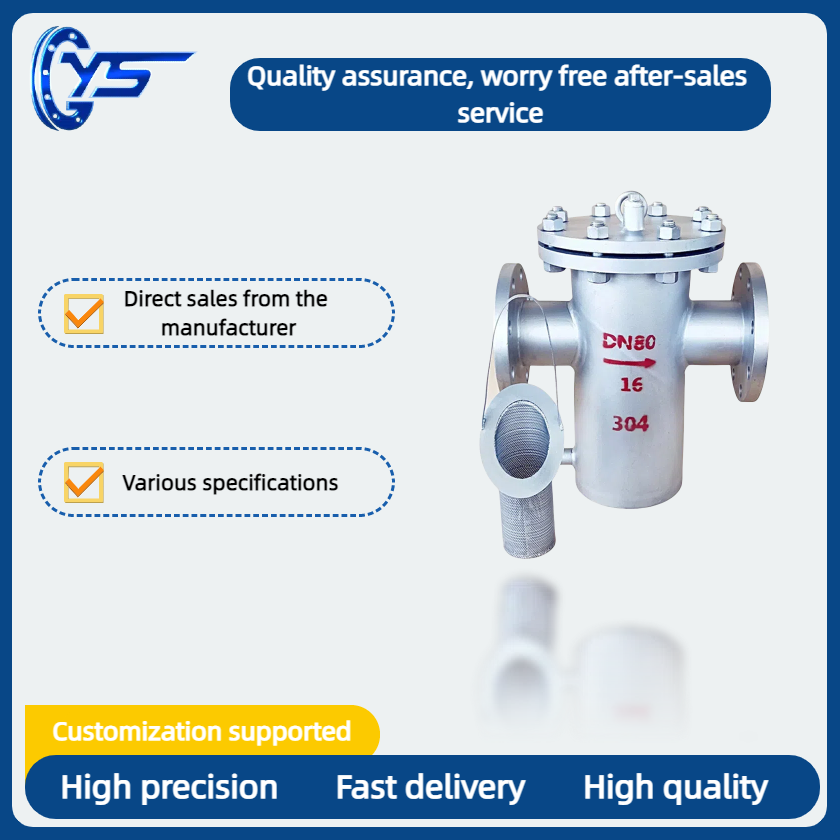

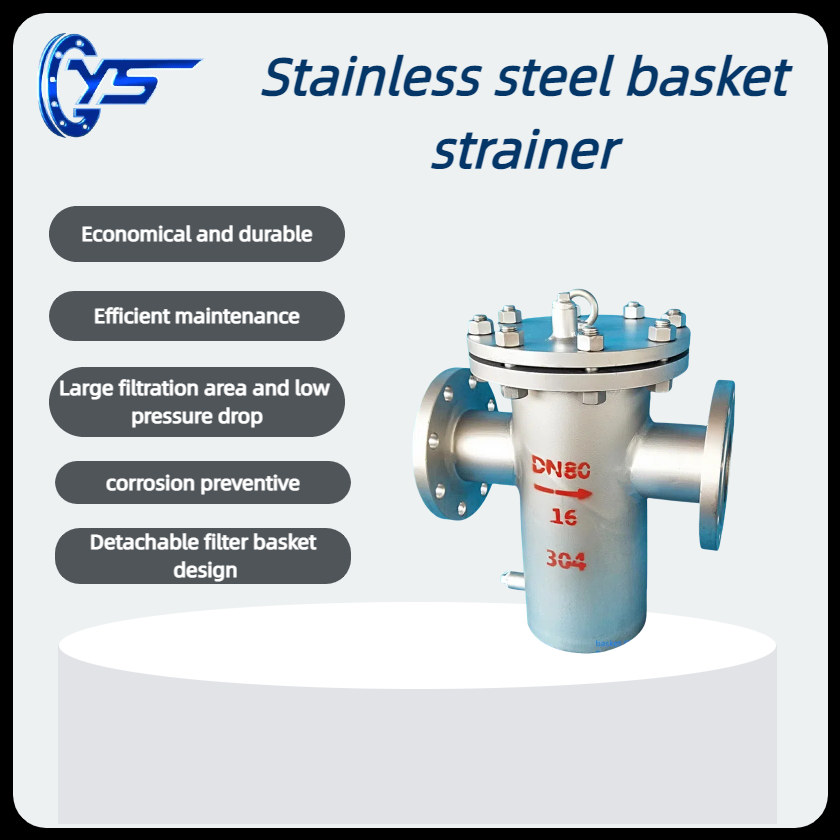

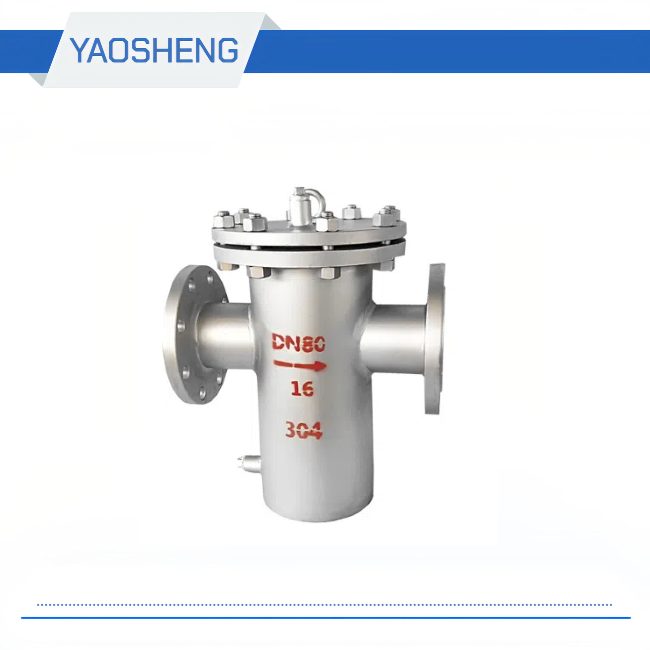

Medium temperature: ≤425 ℃
Medium: water, gas, oil, etc.
Caliber: DN25-300
Pressure: 1.6-4.0MPA
Body material: carbon steel, stainless steel
Connection method: flange
Design Standard: National Standard
| Basket filter Material of main parts | |||
| Part Name | material | ||
| main body | Carbon steel, stainless steel | ||
| Filter | stainless steel | ||
| Basket filter | ||
| Pame Name | Material | |
| Housing Material | Cast Iron, Carbon Steel | Stainless Steel |
| Filter Frame and Screen Material | Stainless Steel | |
| Seal Material | Oil-Resistant Asbestos, Flexible Asbestos, PTFE | |
| Operating Temperature (°C) | -30~+380 | -80~+450 |
| Nominal Pressure (MPa) | 0.6-6.4（150Lb-300Lb） | |
| Filter Rating (mesh/in) | 10-300 | |
| Connection Method | Flange, Butt Weld | |

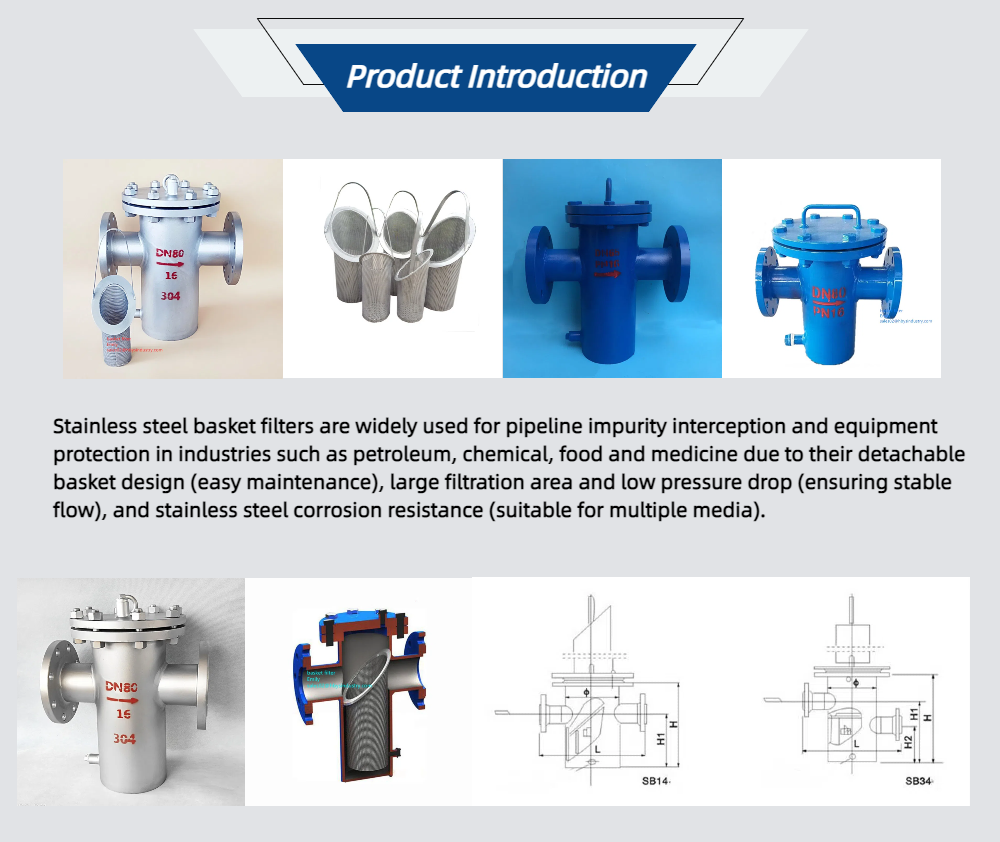

| Basket filter dimensions and connection dimensions | |||||||||
| Model | Nominal diameter (mm) | Size (mm) | B1 drain | ||||||
| L | H | H1 | H2 | f | I | Ⅱ | Ⅲ | ||
| Basket filter | 25 | 220 | 480 | 160 | 260 | 76 | R1 / 2 " | DN20 plane RF | DN20 convex M |
| 32 | 220 | 495 | 160 | 270 | 76 | ||||
| 40 | 280 | 550 | 180 | 300 | 114 | ||||
| 50 | 280 | 550 | 180 | 300 | 114 | ||||
| 65 | 330 | 650 | 220 | 350 | 140 | ||||
| 80 | 340 | 740 | 260 | 400 | 168 | ||||
| 100 | 420 | 880 | 310 | 470 | 219 | R3 / 4 " | |||
| 150 | 500 | 1175 | 430 | 620 | 273 | ||||
| 200 | 560 | 1540 | 530 | 780 | 325 | ||||
| 250 | 660 | 1890 | 640 | 930 | 426 | ||||
| 300 | 750 | 2130 | 640 | 1200 | 478 | ||||
