Medium temperature: gray cast iron valve body: 0-120 ° C ductile iron valve body ≤200 ° C
Medium: ≤1.0MPa steam, water, oil
Caliber: DN32-450
Pressure: 1.0-1.6mpa
Body material: gray cast iron, nodular cast iron
Connection method: flange

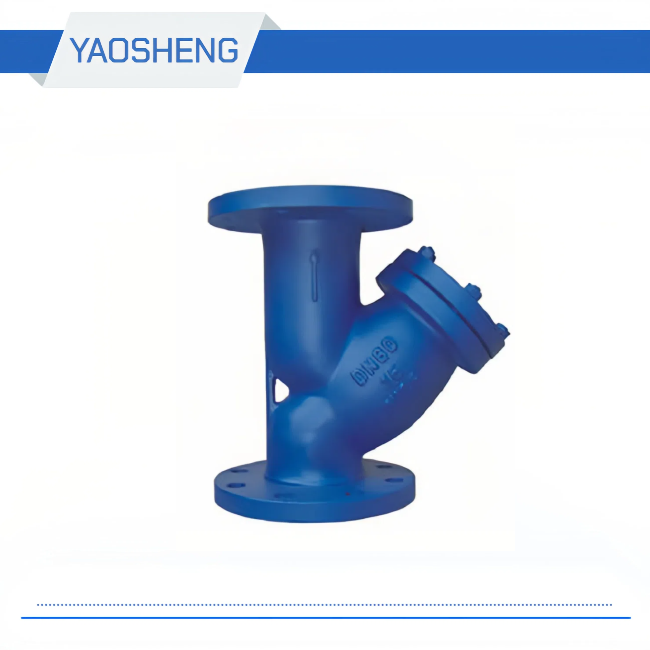

| GL41H-16/16Q Ductile Iron Flange Y Type Strainer Material of main parts | |||
| Part Name | material | ||
| Valve body | Gray cast iron, ductile cast iron | ||
| cap | Gray cast iron, ductile cast iron | ||
| Filter | stainless steel | ||
| Filter GL41H Performance Specifications | |||||||
| model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
| Strength (water) | |||||||
| GL41H-16 | 1.60 | 2.40 | 0-120 ℃ | ≤1.0MPa steam, water, oil | |||
| GL41H-16Q | 1.60 | 2.40 | ≤200 ℃ | ≤1.0MPa steam, water, oil | |||
| Filter GL41H size and connection size | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | D2 | bf | N-φd | ||
| GL41H-16 | 32 | 180 | 135 | 100 | 78 | 18-2 | 4-18 |
| 40 | 220 | 145 | 110 | 85 | 18-3 | 4-18 | |
| 50 | 240 | 160 | 125 | 100 | 20-3 | 4-18 | |
| 65 | 251 | 180 | 145 | 120 | 20-3 | 4-18 | |
| 80 | 275 | 195 | 160 | 135 | 22-3 | 8-18 | |
| 100 | 312 | 215 | 180 | 155 | 24-3 | 8-18 | |
| 125 | 340 | 245 | 210 | 185 | 26-3 | 8-18 | |
| 150 | 378 | 280 | 240 | 210 | 28-3 | 8-23 | |
| 200 | 436 | 335 | 295 | 265 | 30-3 | 12-23 | |
| 250 | 492 | 405 | 355 | 320 | 32-3 | 12-25 | |
| 300 | 554 | 460 | 410 | 375 | 34-4 | 16-25 | |
| 350 | 696 | 520 | 470 | 435 | 34-4 | 16-30 | |
| 400 | 790 | 580 | 525 | 485 | 36-4 | 20-30 | |
