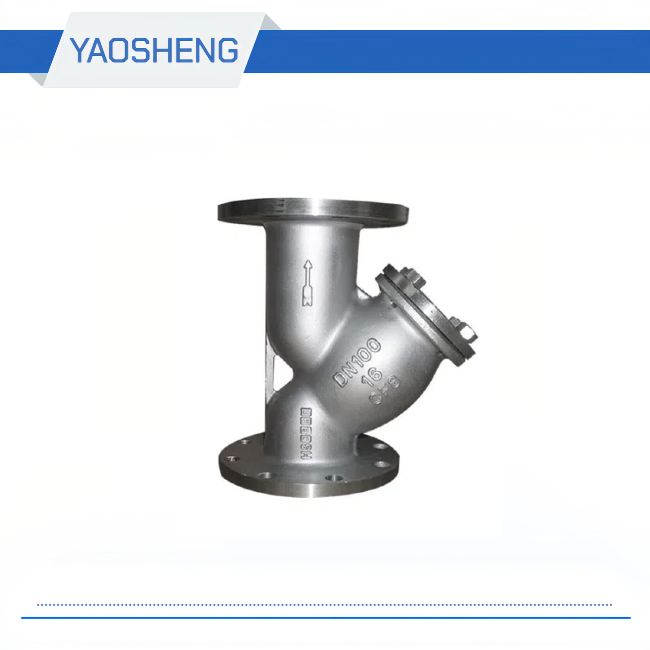

GL41W-16 / 25P stainless steel filter

Medium temperature: -20-150 ℃

Medium: water, gas, oil, nitric acid

Caliber: DN15-300

Pressure: 1.6-2.5MPA

Body material: stainless steel

Connection method: flange

Design Standard: National Standard

Inquire Now Next Product

GL41W-16 / 25P stainless steel filter Material of main parts
Part Name		material
Body / bonnet		CF8 / CF8M
Filter		304/316
Gasket		PTFE
Gag		304/316

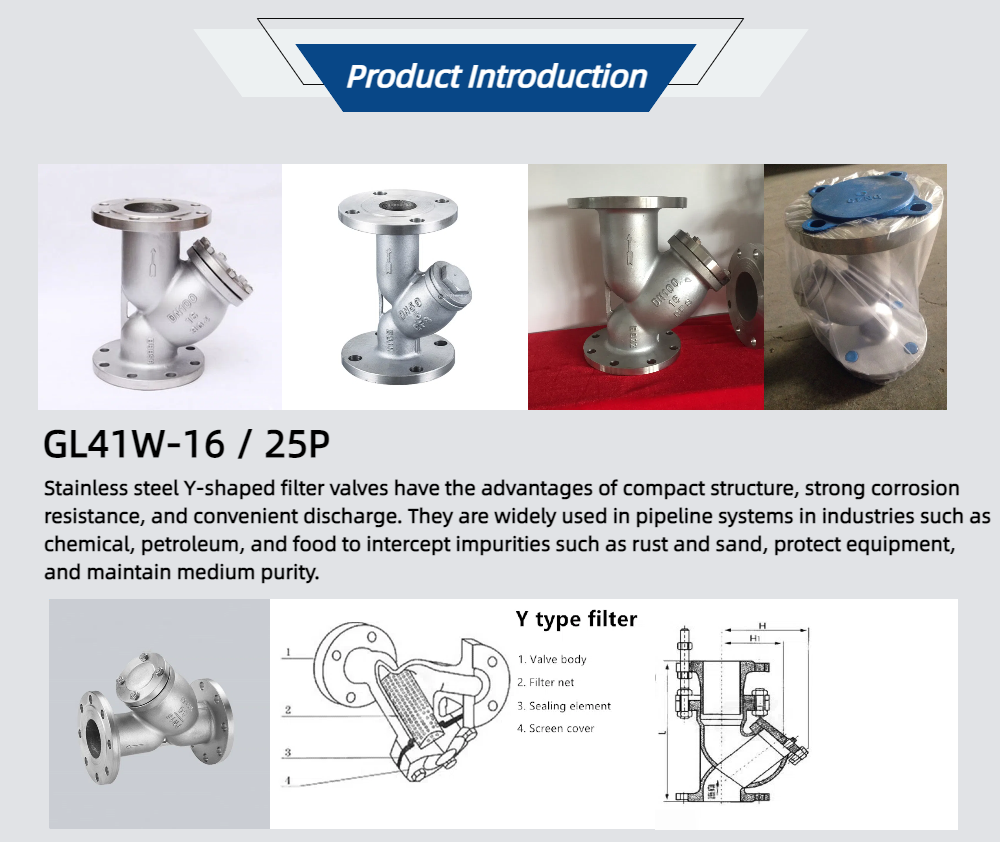

Application: This valve can filter dirt, rust and other sundries.

GL41W-16 / 25P stainless steel filter

Stainless steel filter GL41W performance specification
model	Nominal pressure (MPA)	Test pressure (mpa) water		proper temperature	Applicable medium
		strength	seal
GL41W-16P	1.6	2.40		—20-150 ℃	Water, gas, oil, nitric acid
GL41W-25P	2.5	3.80

Stainless steel filter GL41W appearance size and connection size
model	Nominal diameter (mm)	Size (mm)
model	Nominal diameter (mm)	L	D2	D1	D	bf	n-d1
GL41W-16	15	130	45	65	95	14-2	4-14
	20	140	55	75	105	14-2	4-14
	25	150	65	85	115	14-2	4-14
	32	180	78	100	135	16-2	4-18
	40	200	85	110	145	16-3	4-18
	50	220	100	125	160	16-3	4-18
	65	250	120	145	180	18-3	4-18
	80	280	135	160	195	20-3	8-18
	100	300	155	180	215	20-3	8-18
	125	350	185	210	245	22-3	8-18
	150	390	210	240	280	24-3	8-23
	200	475	265	295	335	26-3	12-23
	250	545	320	355	405	26-3	12-26
	300	605	375	410	460	28-3	12-26
