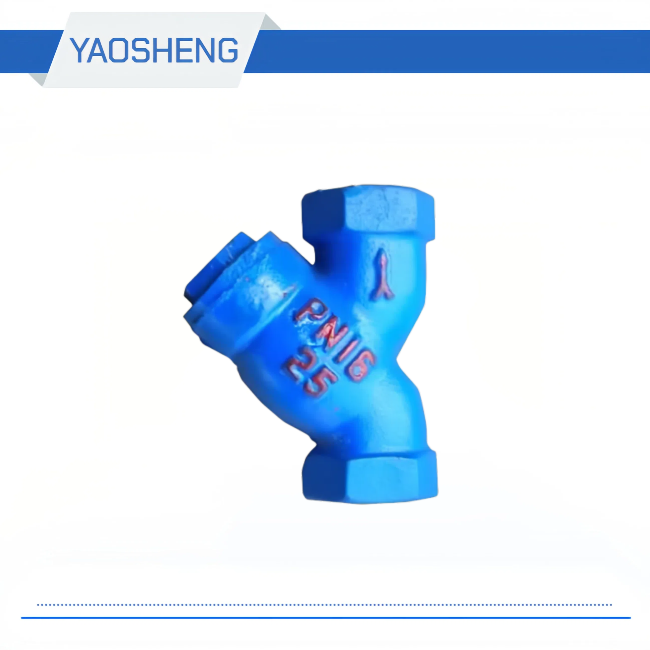

GL11H-16 Cast Iron Y type Thread Strainer

Medium temperature: 0-120 ° C

Medium: water, oil

Caliber: DN15-50

Pressure: 1.6mpa

Body material: gray cast iron,Ductile iron

Connection: internal thread

Inquire Now Next Product

GL11H-16 Cast Iron Y type Thread Strainer Material of main parts
Part Name		material
Valve body		grey cast iron
cap		grey cast iron
Filter		stainless steel

Filter GL11H Performance Specifications
model	Nominal pressure (mpa)	Test pressure (mpa)		proper temperature	Applicable medium
		Strength (water)	Sealed (water)
GL11H-16	1.60	2.40	1.76	0-120 ℃	Water, oil

Filter GL11H size and connection size
model	Nominal diameter (mm)	Size (mm)
		L	G
GL11H	15	90	1/2
	20	100	3/4
	25	110	1
	32	130	1 1/4
	40	150	1 1/2
	50	170	2
