Operation method: manual
Medium: water, oil, gas, etc.
Caliber: 1 / 2-2 "
Pressure: 150-1500LB
Body material: low temperature steel
Connection method: thread, butt welding, socket
| Forged Steel Low Temperature Gate Valve Material of main parts | |||
| Parts name | Material | ||
| Body / bonnet | LF2, LF3, F304, F51 | ||
| gate | F304, F304L, F51 | ||
| Valve stem | 304, 304L, F51 | ||
| Stem nut | 410 | ||

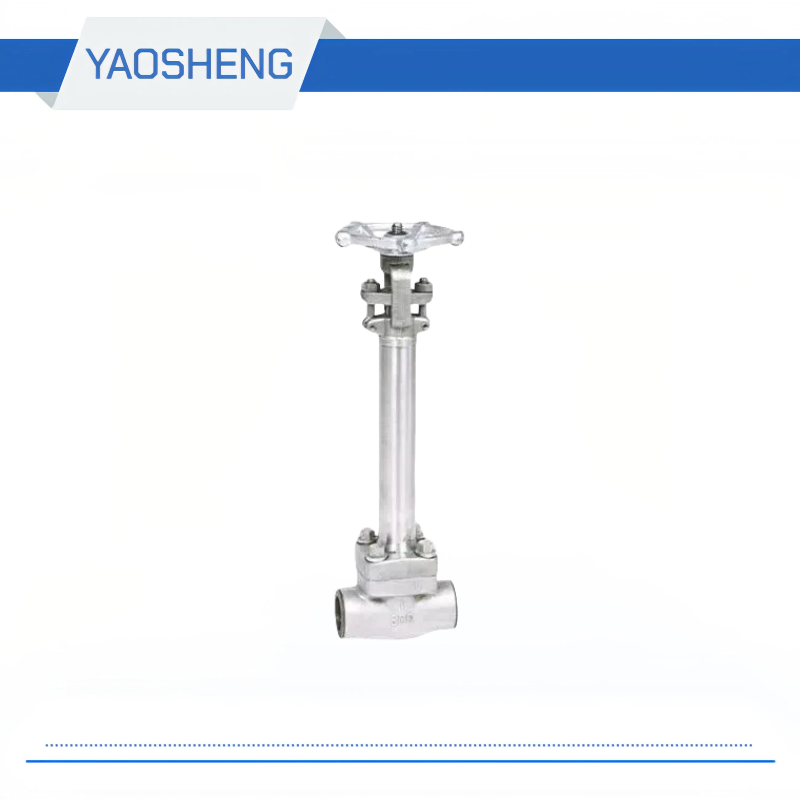

| Forged Steel Low Temperature Gate Valve | |
| Pressure | 1.6MPa-32MPa |
| Temperature | -196℃ |
| Connection | Welding |
| Type | Manual |
| Applicable Media | Applicable to cryogenic liquids and gases such as liquid oxygen , liquid nitrogen, and liquid argon |
| External dimensions and connection dimensions of forged steel low temperature steel gate valves | ||||||||
| Specifications (NPS) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | ||
| Structure length | CL150 | L (RF) L1 (BW) | 108 | 118 | 127 | 165 | 178 | |
| CL300 | 140 | 153 | 165 | 191 | 216 | |||
| CL600 | 165 | 191 | 216 | 160 | 241 | 292 | ||
| Center height (open) mm | -196 | H | 321 | 322 | 359 | 399 | 446 | 480 |
| -46 | 285 | 287 | 309 | 343 | 396 | 420 | ||
| Runner diameter | d | 10.5 | 13.5 | 18 | 24 | 29 | 36.5 | |
