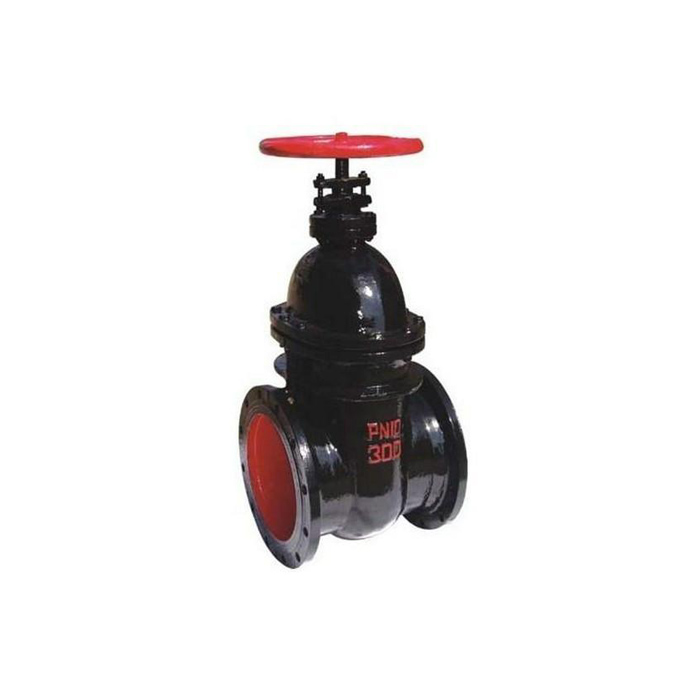

  • Z45T/W-10 Cast Iron Non-rising Stem Cuniform Gate Valve With Handle

Z45T/W-10 Cast Iron Non-rising Stem Cuniform Gate Valve With Handle

Medium temperature: ≤100 ℃
Operation mode: bevel gear, hand wheel, Denso
Medium: water, oil (selected according to seal)
Caliber: DN50-800
Pressure: 1.0-1.6mpa
Body material: gray cast iron, nodular cast iron
Connection method: flange

Product Details

Cast Iron Non-rising Stem Cuniform Gate Valve With Handle Main parts and materials
Parts nameMaterial
Body / bonnetGray cast iron, ductile cast iron
ShutterGray cast iron, ductile cast iron
Valve stemCarbon steel, brass, stainless steel
Stem nutDuctile iron, brass

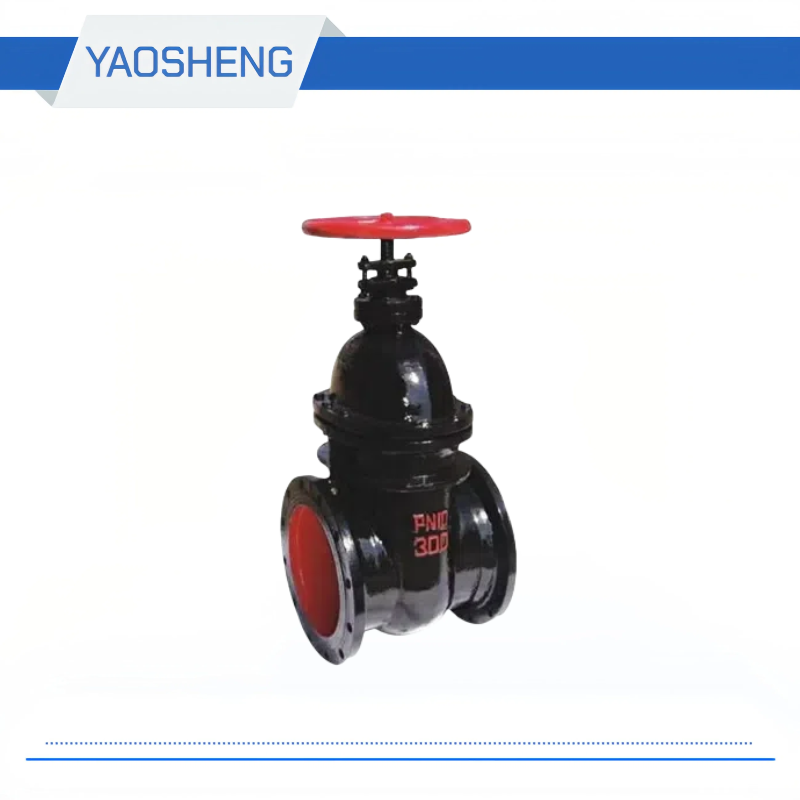

Z45T/W-10 Cast Iron Non-rising Stem Cuniform Gate Valve With Handle

Cast Iron Non-rising Stem Cuniform Gate Valve With Handle Function and specification
TypeNominal pressure
(mpa)
esting pressure(mpa)Suitable
temperature
Suitable
medium
Strength
(Water)
Enclose
(Water)
Z41T-101.00 1.50 1.10 ≤100℃water
Z41W-101.00 1.50 1.10 ≤100℃oil
Z41T-16Q1.60 2.40 1.76 ≤100℃water
Z41W-16Q1.60 2.40 1.76 ≤80℃oil


Cast Iron Non-rising Stem Cuniform Gate Valve With Handle Outline and connecting measurement
TypeNominal
DN(mm)
Measurement(mm)
LDD1D2b-fz-φd
Z41X-10/16Q401651451108518-34*φ18
5017816012510020-34*φ18
6519018014512020-34*φ18
8020319516013522-34*φ18
10022921518015522-38*φ18
12525424521018524-38*φ18
15028028024021024-38*φ23
20033033529526526-38*φ23
25038039035032028-312*φ23
30042044040036828-412*φ23
35045050046042830-416*φ23
40048056551548232-416*φ25
45051061556553232-420*φ25
50054067062058534-420*φ25
60060078072568536-520*φ30
