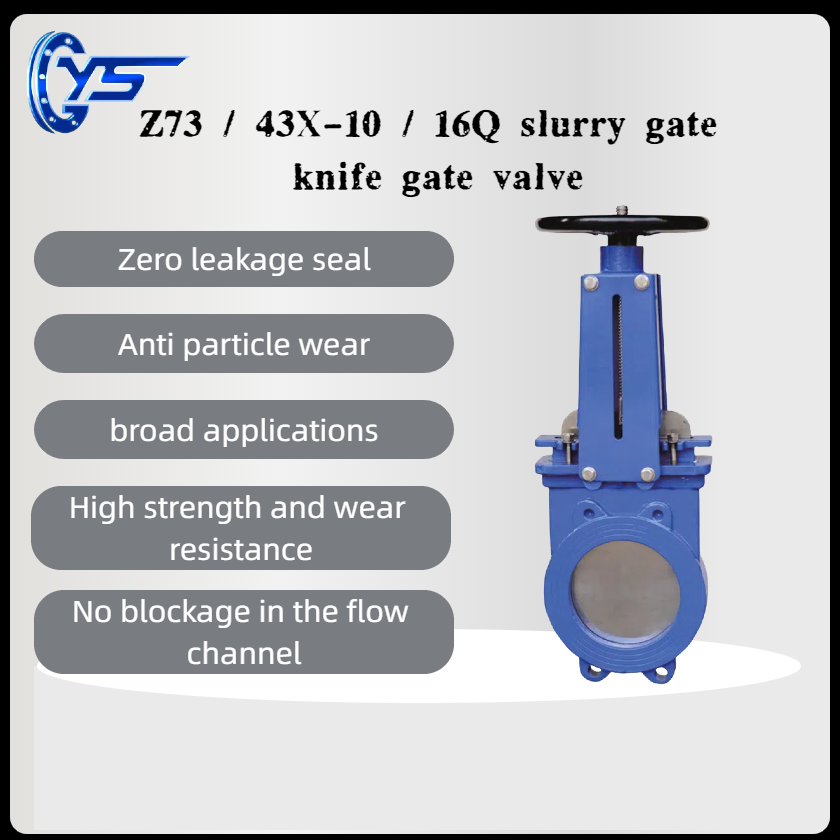

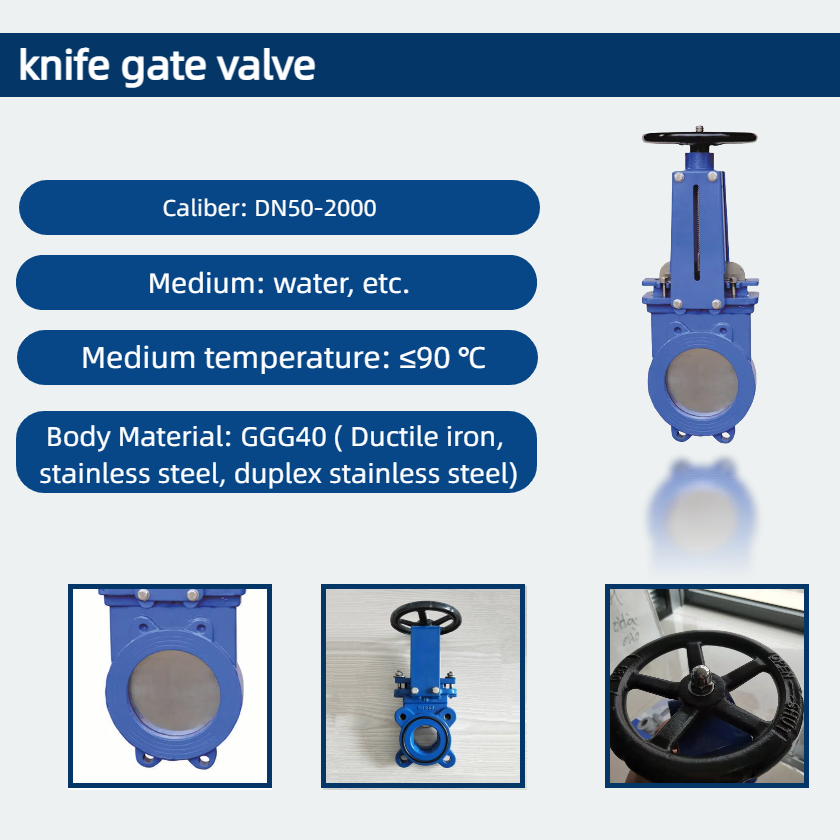

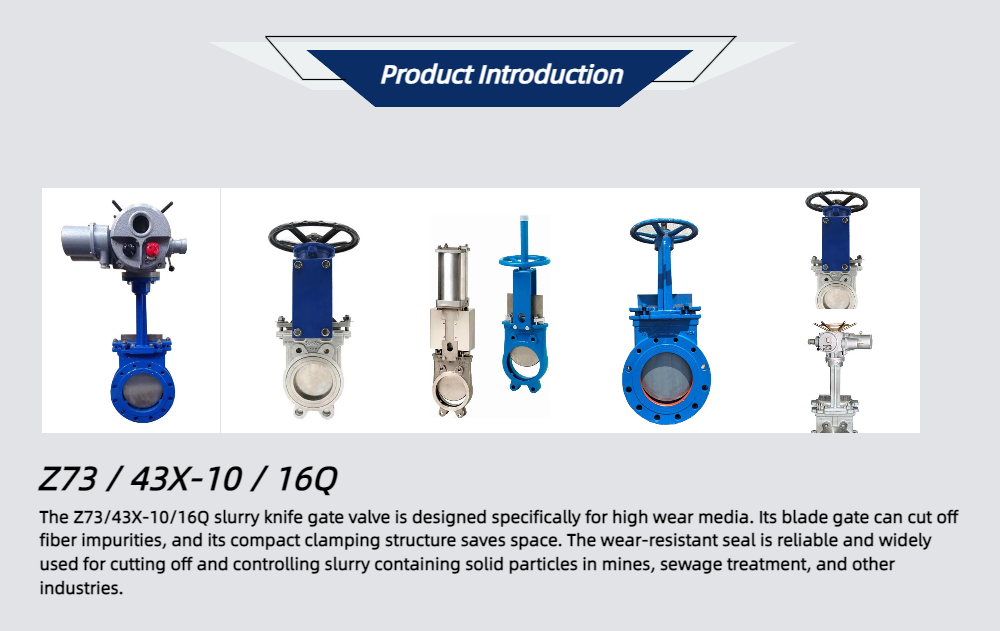

Medium temperature: ≤90 ℃
operation: manual / electric / bevel gear / pneumatic
medium: liquid solid particle content of not more than 4%
Diameter: DN50-2000
Pressure: 1.0-1.6mpa
Body Material: GGG40 ( Ductile iron, stainless steel, duplex stainless steel)
Connection: Wafer
Seated material: Metal/EPDM/Nitril/Viton/Silicone
Optional pressure rate:10Bar/150lbs
slurry gate knife gate valve Dimensions and connection dimensions | ||||||||
model | Nominal diameter (mm) | Size (mm) | ||||||
L | B | C | D | E | H | H1 | ||
Z43 / 73X -10 / 16Q | 50 | 48 | 135 | 90 | 105 | 119 | 295 | 360 |
65 | 48 | 155 | 90 | 115 | 135 | 335 | 415 | |
80 | 51 | 165 | 120 | 124 | 150 | 360 | 455 | |
100 | 51 | 195 | 122 | 135 | 180 | 400 | 515 | |
125 | 57 | 220 | 127 | 160 | 203 | 455 | 595 | |
150 | 57 | 220 | 136 | 175 | 235 | 510 | 675 | |
200 | 60 | 270 | 136 | 205 | 280 | 585 | 805 | |
250 | 70 | 335 | 160 | 240 | 347 | 695 | 965 | |
300 | 76 | 385 | 165 | 275 | 395 | 765 | 1085 | |
400 | 89 | 525 | 168 | 365 | 530 | 995 | 1415 | |
450 | 89 | 565 | 200 | 435 | 570 | 1150 | 1620 | |
500 | 114 | 630 | 240 | 475 | 680 | 1250 | 1770 | |
600 | 114 | 735 | 255 | 580 | 780 | 1460 | 2080 |
slurry gate knife gate valve Material of main parts | |||
Part Name | material | ||
Valve body | GGG40 | ||
gate | stainless steel | ||
Valve stem | 2Cr13 | ||
Sealing ring | NBR / EPDM |
slurry gate knife gate valve Performance specifications | ||||||||
model | Nominal pressure (mpa) | test pressure | proper temperature | Applicable medium | ||||
Shell pressure test | Sealed pressure test | |||||||
Z73 / 43X-10Q | 1.0 | Working pressure * 1.5 times | Working pressure * 1.1 times | ≤90 ℃ | Liquid solid particles not exceeding 4% | |||
Z73 / 43X-16Q | 1.6 | |||||||
Working pressure | ||||||||
DN50-250 | 10KG / cm³ | DN300-DN400 | 6KG / cm³ | DN450 | 5KG / cm³ | |||
DN500-DN600 | 4KG / cm³ | DN700-DN1200 | 2KG / cm³ |
