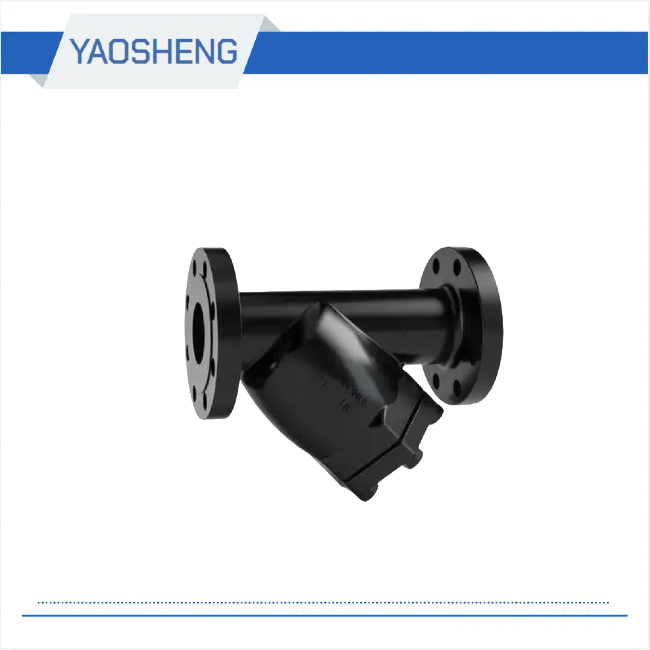

Medium: water, steam, petroleum, etc.
Operation method: manual
Caliber: DN15-300
Pressure: 10-20K
Body material: cast steel, stainless steel
Connection method: flange
| JIS Strainer Material of main parts | ||
| Part Name | material | |
| Valve body | Cast steel, stainless steel | |
| Filter | stainless steel | |
| Gasket | 304+ graphite | |
| Gag | Cast steel, stainless steel | |
| JIS filter GL41H performance specifications | ||||||||
| model | Nominal pressure | Test pressure (mpa) | proper temperature | Applicable medium | ||||
| Strength (water) | Sealed (water) | |||||||
| GL41H-10K | 10K | 2.40 | 1.50 | ≤425 ℃ | Water, steam, oil | |||
| GL41H-20K | 20K | 5.80 | 4.00 | ≤425 ℃ | Water, steam, oil | |||
| JIS filter GL41H appearance size and connection size | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | H | ||||
| GL41H-10K | 65 | 285 | 175 | 140 | 165 | ||
| 80 | 302 | 185 | 150 | 200 | |||
| 100 | 377 | 210 | 175 | 215 | |||
| 125 | 392 | 250 | 210 | 257 | |||
| 150 | 442 | 280 | 240 | 305 | |||
| 200 | 540 | 330 | 290 | 410 | |||
| 250 | 668 | 400 | 365 | 490 | |||
| 300 | 762 | 450 | 400 | 580 | |||
