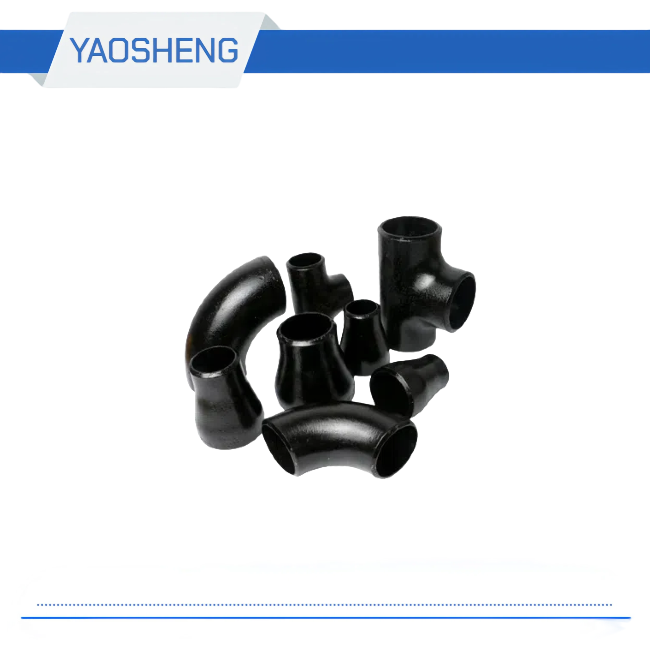

ANSI Pipe Fittings Series

Product Details

ANSI Pipe Fittings Series Main production materials
Material name
ASTM A105, 20 #, Q235, 16Mn
ASTM A182 F304, F316, 316L, 321


Flange typeThickness rangeCaliber rangeImplementation standards
elbowSCH10-SCH1601/2 "-48"ANSI B16.9
Tee1 1/2 "* 1 1/2" -24 "* 18"
Reducer1 "* 3/4" -24 "* 22"
Tube cap1/2 "-48"


ANSI Fittings

ANSI pipe fitting dimensions and connection dimensions
Long radius elbow
Nominal diameter
(inches)
Outer diameterThickness (mm)
DSCH10SCH30STDSCH40XSSCH80
1/221.32.112.412.772.773.733.73
3/426.72.112.412.872.873.913.91
133.42.772.93.383.384.554.55
1 1/442.22.772.973.563.564.854.85
1 1/248.32.773.183.683.685.085.08
260.32.773.183.913.915.545.54
2 1/2733.054.785.165.167.017.01
388.93.054.785.495.497.627.62
3 1/2101.63.054.785.745.748.088.08
4114.33.054.786.026.028.568.56
5141.33.4-6.556.559.539.53
6168.33.4-7.117.1110.9710.97
8219.13.767.048.188.1812.712.7
10273.14.197.89.279.2712.715.09


ANSI Fittings

Tee
Nominal diameter
(inches)
Outer diameterSTDSCH40
D1D2t1t2t1t2
1 1/2 * 1 1/248.348.32.772.772.772.77
2 * 3/460.326.73.912.873.912.87
*1-33.4-3.32-3.38
* 1 1/4-42.2-3.56-3.56
* 1 1/2-48.3-3.68-3.68
*2-60.3-3.91-3.91


American Standard Fittings

Tube cap
Nominal diameter
(inches)
Outside diameter DE heightLimit thicknessHeight E1t
HidemurammSCH40
1/20.8421.3425.44.5725.40.109
3/41.0526.6725.43.8125.40.133
11.31533.438.14.5738.10.133
1 1/41.6642.238.14.8338.10.14
1 1/21.948.238.15.0838.10.145
22.37548.338.15.5944.50.154


American Standard Fittings

Reducer
Nominal diameter
(inches)
Outer diameterSTDSCH40
D1D2t1t2t1t2
1 * 3/433.426.73.382.873.382.87
1 1/2 * 3/448.326.73.682.873.682.87
*1-33.4-3.38-3.38
* 1 1/4-42.2-3.56-3.56
2 * 160.333.43.913.383.913.38
* 1 1/4-42.2-3.56-3.56
