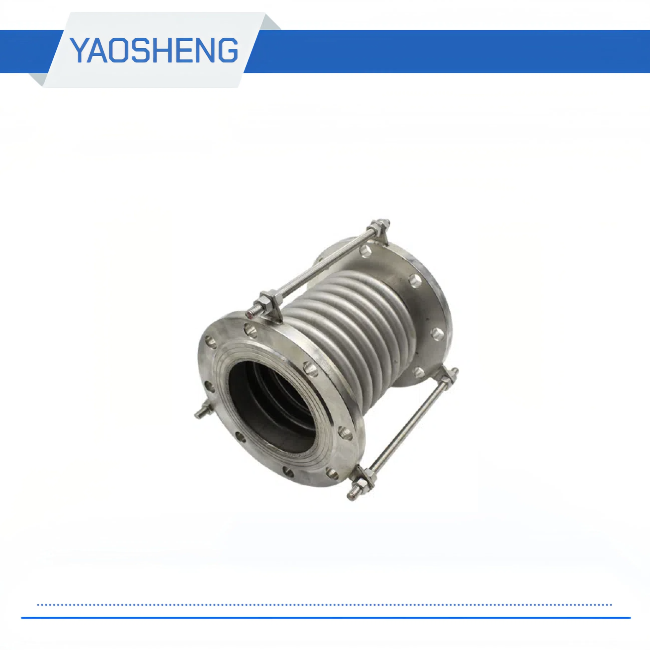

JDZ type axial internal pressure corrugated compensator

Medium: water, oil, steam

Caliber: DN32-2800

Pressure: 1.0-2.5mpa

Flange material: carbon steel stainless steel

Connection method: flange


Product Details

JDZ type axial internal pressure corrugated compensator Material of main parts
Part Namematerial
FlangeCarbon steel, stainless steel
Bellowsstainless steel

Application: It is mainly used for the connection of metal pipes that transport liquid, gas and other materials.

JDZ type axial internal pressure corrugated compensator

JDZ type axial internal pressure corrugated compensator dimensions and connection
modelNominal diameter
(mm)
Wave numberLMaximum outer diameter sizePressure rating MPa
11.62.5
Amount of axial compensation mm f9ⅡN / ram
JDZ type axial internal pressure corrugated compensator32811011020/2618/6315/98
40813013020/4418/8915/106
50815015020/7018/7015/138
65817017026/4422/5519/68
80820020034/3328/4124/54
100822022040/7535/9329/117
125824029066/3658/4550/56
150825029064/5154/5946/65
200828034059/5253/5848/78
250628030059/4252/4547/55
834036087/3579/3971/47
300633034059/59526547/71
838040087/3779/4171/45
350636034059/6752/7447/81
842042087/4479/4871/47
400636034059/6252/6847/75
842042087/4379/4771/52
450636034087/3779/4171/45
8460450131/23118/25106/28
500645034087/6879/7571/82
8520450131/39118/43106/48
600648038087/8579/9471/103
8560500131/49118/53106/60
