Medium: water, oil, steam
Caliber: DN32-2800
Pressure: 1.0-2.5mpa
Flange material: carbon steel stainless steel
Connection method: flange
| JGD41-10/16 Rubber Curved Joints Material of main parts | |||
| Part Name | material | ||
| Flange | Carbon steel, stainless steel | ||
| Sphere | EPDM, NBR | ||

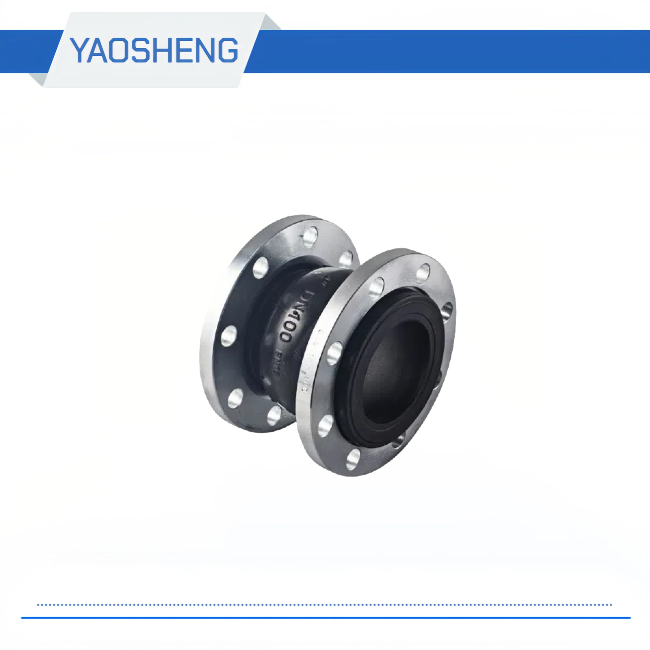

| JGD41-10/16 Rubber Curved Joints | |
| Flexible rubber flexible joint JGD41 appearance size and connection size | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | b | φd | Z | ||
| JGD41-10 / 16 | 32 | 95 | 135 | 100 | 16 | 18 | 4 |
| 40 | 95 | 145 | 110 | 18 | 18 | 4 | |
| 50 | 105 | 160 | 125 | 18 | 18 | 4 | |
| 65 | 115 | 180 | 145 | 20 | 18 | 4 | |
| 80 | 135 | 195 | 160 | 20 | 18 | 4 | |
| 100 | 150 | 215 | 180 | 22 | 18 | 4 | |
| 125 | 165 | 245 | 210 | 24 | 18 | 8 | |
| 150 | 180 | 280 | 240 | 24 | 23 | 8 | |
| 200 | 210 | 335 | 295 | 24 | 23 | 8 | |
| 250 | 230 | 390 | 350 | 26 | 23 | 8 | |
| 300 | 245 | 440 | 400 | 28 | 23 | 12 | |
| 350 | 255 | 500 | 460 | 28 | 23 | 12 | |
| 400 | 255 | 565 | 515 | 30 | 23 | 16 | |
| 450 | 255 | 615 | 565 | 30 | 25 | 16 | |
| 500 | 255 | 670 | 620 | 32 | 25 | 20 | |
| 600 | 260 | 780 | 725 | 36 | 30 | 20 | |
