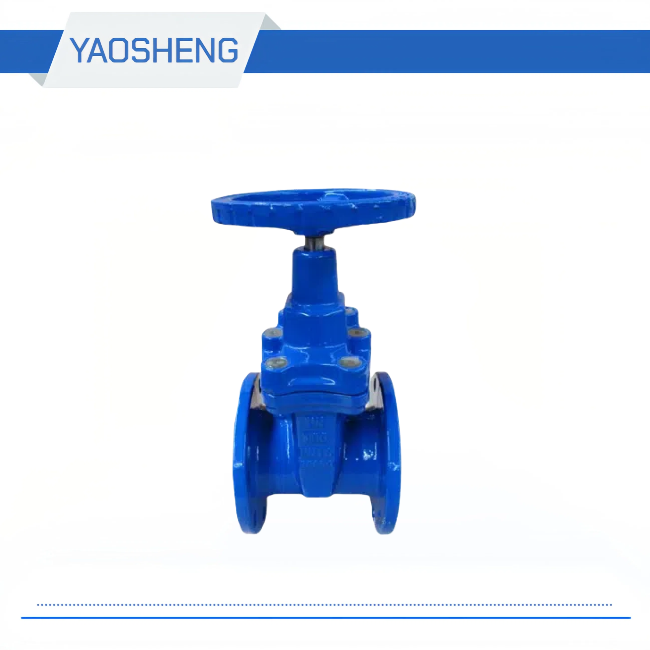

DN 50-300mm DIN F5 Non-rising Stem Gate Valve

Medium temperature: —29—425 ° C
Operation method: manual
Medium: water, steam, oil, etc.
Caliber: DN40-300mm
Pressure: 1.6-4.0mpa
Body material: ASTM A216 WCB, LCB, WC6, WC9, CF8, CF8M
Connection method: flange

Inquire Now Next Product

Product Details

DIN F5 Non-rising Stem Gate Valve Material of main parts
Part Name	material
Body / bonnet	ASTM A216 WCB、LCB	Alloy steel, stainless steel
gate	ASTM A216 WCB、LCB	Alloy steel, stainless steel
Valve stem	ASTM A182 F6a、F304、F316
Stem nut	Ductile iron

DIN F5 Non-rising Stem Gate Valve Performance specifications
Model	Nominal Pressure （mpa）	Test Pressure（mpa）		Proper Temperature	Applicable Medium
		Strength	Seal
DIN F5 Non-rising Stem Gate Valve-16	1.6	2.40	1.76	-29-425℃	Water, steam, oil, etc.
DIN F5 Non-rising Stem Gate Valve-25	2.5	3.75	2.75
DIN F5 Non-rising Stem Gate Valve-40	4.0	6.00	4.40

DIN F5 Non-rising Stem Gate Valve Dimensions and connection dimensions
Model	Nominal Diameter （mm）	size（mm）
Model	Nominal Diameter （mm）	L	D	D0	D1	g-f	n-φd
16	40	240	150	110	88	18-3	4*φ18
	50	250	165	125	102	18-3	4*φ18
	65	270	185	145	122	18-3	8*φ18
	80	280	200	160	138	20-3	8*φ18
	100	300	220	180	158	20-3	8*φ18
	125	325	250	210	188	22-3	8*φ18
	150	350	285	240	212	22-3	8*φ22
	200	400	340	295	268	24-3	12*φ22
	250	450	405	355	320	26-3	12*φ26
	300	500	460	410	378	28-4	12*φ26
25	40	240	150	110	88	20-3	4*φ18
	50	250	165	125	102	20-3	4*φ18
	65	270	185	145	122	22-3	8*φ18
	80	280	200	160	138	24-3	8*φ18
	100	300	235	190	162	24-3	8*φ22
	125	325	270	220	188	26-3	8*φ26
	150	350	300	250	218	28-3	8*φ26
	200	400	360	310	278	34-3	12*φ26
	250	450	425	370	335	36-3	12*φ30
	300	500	485	430	395	40-4	16*φ30
40	40	240	150	110	88	20-3	4*φ18
	50	250	165	125	102	20-3	4*φ18
	65	270	185	145	122	22-3	8*φ18
	80	280	200	160	138	24-3	8*φ18
	100	300	235	190	162	24-3	8*φ22
	125	325	270	220	188	26-3	8*φ26
	150	350	300	250	218	28-3	8*φ26
	200	400	375	320	285	34-3	12*φ30
	250	450	450	385	345	38-3	12*φ33
	300	500	515	450	410	42-4	16*φ33
