Operation method: manual
Medium: water / oil
Caliber: DN15-200
Pressure: 1.6mpa
Body material: gray cast iron, nodular cast iron
Connection method: flange

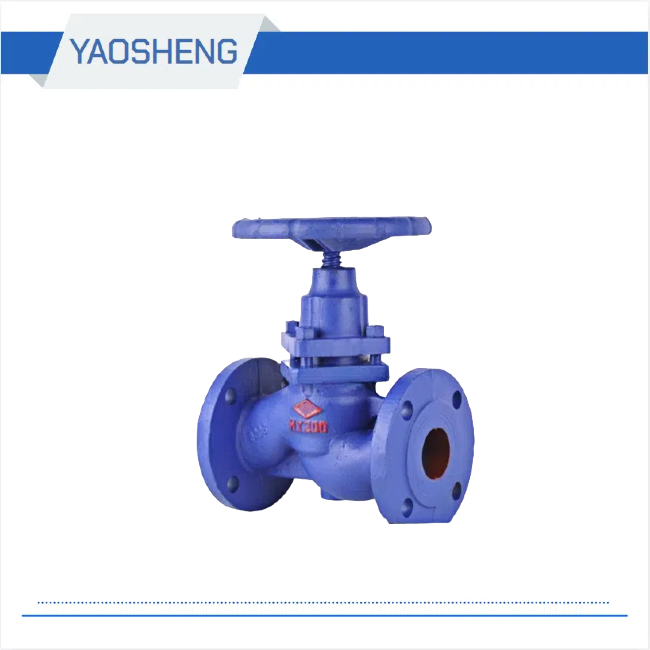

| U41S-16/16Q Cast Iron Flange Plunger Valve Material of main parts | |||
| Part Name | material | ||
| Valve body | Gray cast iron, ductile cast iron | ||
| Plunger | stainless steel | ||
| Valve stem | stainless steel | ||
| support | grey cast iron | ||
| Performance specification for plunger valve U41S | |||||||
| model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
| Strength (water) | Sealed (water) | ||||||
| U41S-16Q | 1.60 | 2.40 | 1.76 | —10 ～ 200 ℃ | Water / oil | ||
| Plunger valve U41S overall dimensions and connection dimensions | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | D2 | bf | Z-φd | ||
| U41S-16 | 15 | 130 | 95 | 65 | 45 | 14-2 | 4-14 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-14 | |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-14 | |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-18 | |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-18 | |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-18 | |
| 65 | 290 | 180 | 145 | 120 | 20-3 | 4-18 | |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 8-18 | |
| 100 | 350 | 215 | 180 | 155 | 24-3 | 8-18 | |
| 125 | 400 | 245 | 210 | 185 | 26-3 | 8-18 | |
| 150 | 480 | 280 | 240 | 210 | 28-3 | 8-23 | |
| 200 | 600 | 335 | 295 | 265 | 30-3 | 12-23 | |
