Operation method: manual
Medium: water / oil
Caliber: DN15-50
Pressure: 1.6mpa
Body material: gray cast iron, ductile iron, carbon steel
Connection method: flange

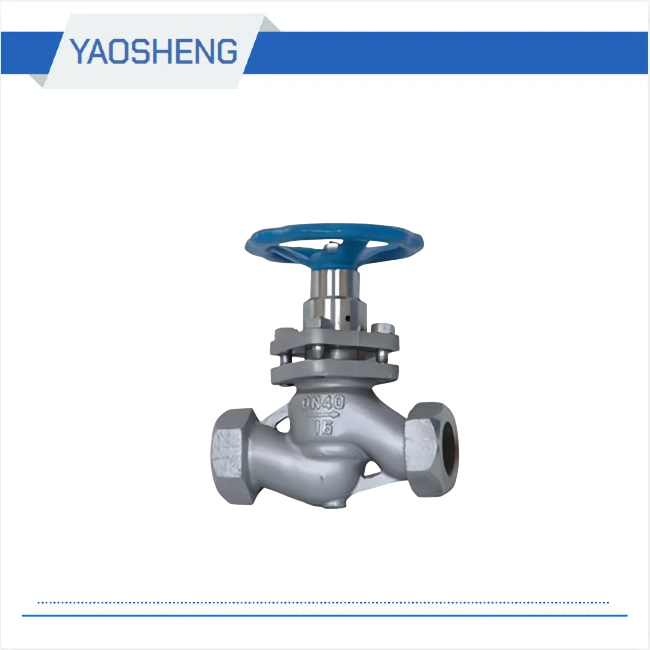

| U11S-16 Thread Plunger Valve Material of main parts | |||
| Part Name | material | ||
| Valve body | Gray cast iron, carbon steel, ductile iron | ||
| Plunger | stainless steel | ||
| Valve stem | stainless steel | ||
| Performance specification of internal thread plunger U11S | |||||||
| model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
| Strength (water) | Sealed (water) | ||||||
| U11S-16Q | 1.60 | 2.40 | 1.76 | —10 ～ 200 ℃ | Water / oil | ||
| External thread plunger U11S dimensions and connection dimensions | |||||
| model | Nominal diameter (mm) | Size (mm) | |||
| L | G | ||||
| U11S-16 | 15 | 90 | 1/2 " | ||
| 20 | 100 | 3/4 " | |||
| 25 | 120 | 1" | |||
| 32 | 140 | 1 1/4 " | |||
| 40 | 170 | 1 1/2 " | |||
| 50 | 200 | 2" | |||
