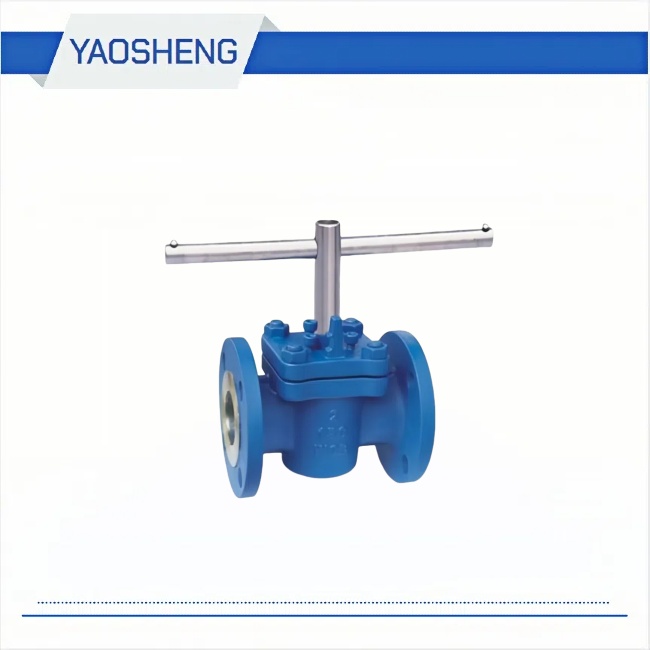

ANSI Sleeve Type Plug Valve

Temperature of Media:High Temperature, Low Temperature, Medium Temperature, Normal Temperature

Power:Manual

Media:Water

Port Size:2"-64"

The main component materials and performance of American standard plug valves
Valve body Bonnet	Plug body	Regulating valve	Adjust the gasket	O-rings	Operation temperature	Applicable Medium
WCB	WCB	F6	PTFE Enhanced PTFE	VITON	-29~340℃	Water, steam, natural gas, petroleum, nitric acid, acetic acid
A105	A105	F6
CF8	F304	F304
CF3	F316	F316	PTFE		acid-resisting 220℃
CF8M	F304L	F304L
CF3M	F316L	F316L

Pressure test of American standard plug valve
Nominal pressure	Strength test		Water seal experiment		Airtight seal test
Nominal pressure	MPa	Lbf/in²	MPa	Lbf/in²	MPa	Lbf/in²
150	3.1	450	2.2	315	0.5~0.7	60~100
300	7.8	1125	5.6	815
600	15.3	2225	11.2	1630
900	23.1	3350	16.8	2440
1500	38.4	5575	28.1	4080
2500	64.6	9367	47.4	6873

Main external dimensions of American standard plug valves
Pound level	size	d	L	D	D1	D2	b	z-φd	f	L0	H	X	W
150	1/2	13	108	89	60	35	-	4-16	2	149	121	-	-
	3/4	19	117	98	70	43	-	4-16	2	149	121	-	-
	1	25	140	128	79	51	11	4-16	2	181	124	-	-
	2 1/2	38	165	127	98	73	14	4-16	2	229	140	-	-
	2	51	178	152	121	92	16	4-19	2	305	159	-	-
	2 1/2	64	191	178	140	105	17	4-19	2	460	191	-	-
	3	76	203	191	152	127	19	4-19	2	460	191	-	-
	4	102	229	229	191	157	24	8-19	2	762	229	-	-
	6	152	267	279	241	216	25	8-22	2	-	536	222	305
	8	203	292	343	298	270	29	8-22	2	-	565	400	460
	10	254	330	406	362	324	30	12-25	2	-	616	400	460
300	1/2	13	140	95	67	35	14	4-16	2	149	121	-	-
	3/4	19	152	117	83	43	16	4-19	2	149	121	-	-
	1	25	159	124	89	51	17	4-19	2	181	124	-	-
	2 1/2	38	191	156	114	73	21	4-22	2	229	140	-	-
	2	51	216	165	127	92	22	8-19	2	305	159	-	-
	2 1/2	64	241	191	149	105	25	8-22	2	460	191	-	-
	3	76	283	210	168	127	29	8-22	2	460	191	-	-
	4	102	305	254	200	157	32	8-22	2	762	229	-	-
	6	152	403	318	270	216	37	12-22	2	-	546	222	305
	8	203	419	381	300	270	41	12-25	2	-	565	400	460
	10	254	457	445	387	324	48	16-29	2	-	616	400	460
