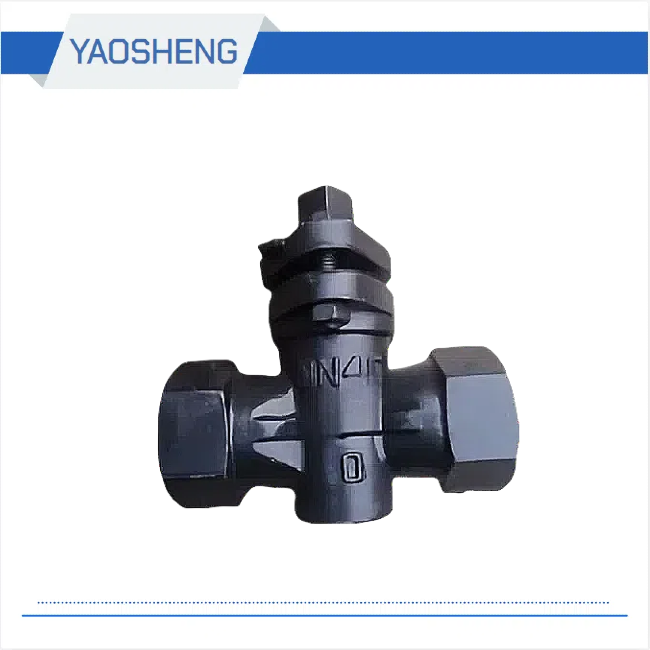

Medium temperature: ≤100 ℃
Medium: Oil
Caliber: DN15-50
Pressure: 1.0mpa
Body material: gray cast iron
Connection: thread
| X13W/T-10 Thread Plug Valve Material of main parts | |||
| Part Name | material | ||
| Valve body | grey cast iron | ||
| Stopcock | grey cast iron | ||
| filler | Graphite, asbestos packing | ||
| Plug X13W Performance Specifications | |||||||
| model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
| Strength (water) | Sealed (water) | ||||||
| H13W-10 | 1.00 | 1.50 | 1.10 | ≤100 ℃ | Oil | ||
| Plug valve X13W overall dimensions and connection dimensions | |||||
| model | Nominal diameter (mm) | Size (mm) | |||
| L | G | ||||
| X13W-10 | 15 | 79 | 1/2 | ||
| 20 | 88 | 3/4 | |||
| 25 | 108 | 1 | |||
| 32 | 126 | 1 1/4 | |||
| 40 | 153 | 1 1/2 | |||
| 50 | 175 | 2 | |||
