  • X43W-10P GB stainless steel plug valve

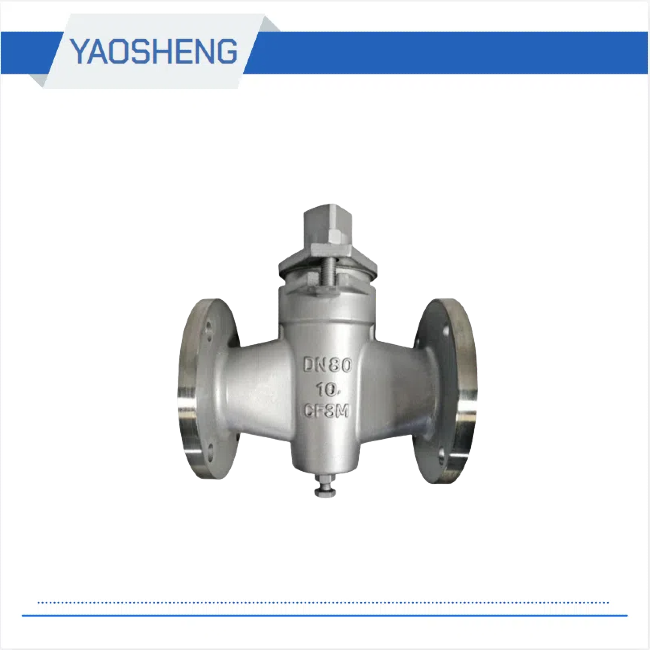

X43W-10P GB stainless steel plug valve

Medium temperature: -29-200 ℃

Medium: water, steam, oil, nitric acid, etc.

Caliber: DN50-DN400

Pressure: 1.0-1.6MPA

Body material: stainless steel

Connection method: flange

Design Standard: National Standard


Product Details

X43W-10P GB stainless steel plug valve Material of main parts
Part Namematerial
Valve bodyCF8 / CF3 / CF8M / CF3M
StopcockCF8 / CF3 / CF8M / CF3M
capCF8 / CF3 / CF8M / CF3M
sealFlexible graphite

Application: This valve is suitable for opening and closing on pipelines of non-corrosive media such as water, steam and oil.

X43W-10P GB stainless steel plug valve

X43W-10P GB stainless steel plug valve Performance standard
modelNominal pressure
(MPA)
Test pressure (mpa) waterproper temperatureApplicable medium
strengthseal
X43W-10P1.0 1.50 1.10 ≤200 ℃Gas, oil, nitric acid


X43W-10P GB stainless steel plug valve dimensions and connection dimensions
modelNominal diameter
(mm)
Size (mm)
LDD1D2bfz-φd

158095654512-24 * φ14

2090105755514-24 * φ14

25110115856514-24 * φ14
X43W-10321301351007816-24 * φ18
401501451108518-34 * φ18
5017016012510018-34 * φ18
6522018014512020-34 * φ18
8025019516013520-34 * φ18
10030021518015522-38 * φ18
12535024521018524-38 * φ18
15040028024021024-38 * φ23
20046033529526524-38 * φ23
25053039035032026-312 * φ23
30058044040036828-412 * φ23
