  • DN 40-200mm DIN Angle Globe Valve

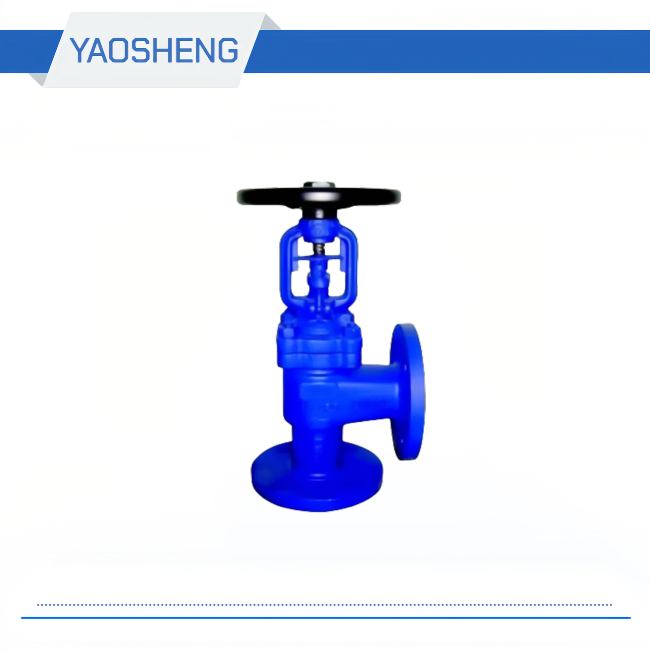

DN 40-200mm DIN Angle Globe Valve

Medium temperature: ≤350 ℃
Operation mode: manual, electric
Medium: water, steam, oil, etc.
Caliber: DN15-400mm
Pressure: 1.6-4.0mpa
Body material: GS-C25, CF8, CF8M
Connection method: flange
Design Standard: EN12516

Product Details

DIN Angle Globe Valve Main parts and materials
Parts nameMaterial
Valve bodyGS-C25、CF8、CF8M
Valve seat13CR、SS304、SS316、stellite
Disc13CR、F304、F316+Stellite
Valve stem2CR13、F304、F316

Application: petroleum, chemical, pharmaceutical, fertilizer, power and other industries.

DN 40-200mm DIN Angle Globe Valve

DIN Angle Globe Valve Function and specification
TypeNominal pressure
(mpa)
esting pressure(mpa)Suitable
temperature
Suitable
medium
Strengthseal
16/25/401.6/2.5/4.01.5*PN1.1*PN≤350℃Water, steam, oil, etc.


DIN Angle Globe Valve Outline and connecting measurement
TypeNominal
DN(mm)
Measurement(mm)
LDD1D2b-fz-φd
DIN Angle Globe Valve159095654516-24*φ14
2095105755818-24*φ14
25100115856818-24*φ14
321051401007818-24*φ18
401151501108818-34*φ18
5012516512510220-34*φ18
6514518514512220-34*φ18
8015520016013820-38*φ18
10017522018015820-38*φ18
12520025021018822-38*φ18
15022528524021222-38*φ22
20027534029526824-312*φ22
25032540535532026-312*φ26
30037546041037828-412*φ26
35042552047043830-416*φ26
40047558052549032-416*φ30
