  • J11T/W-16 JIS Thread Globe Valve

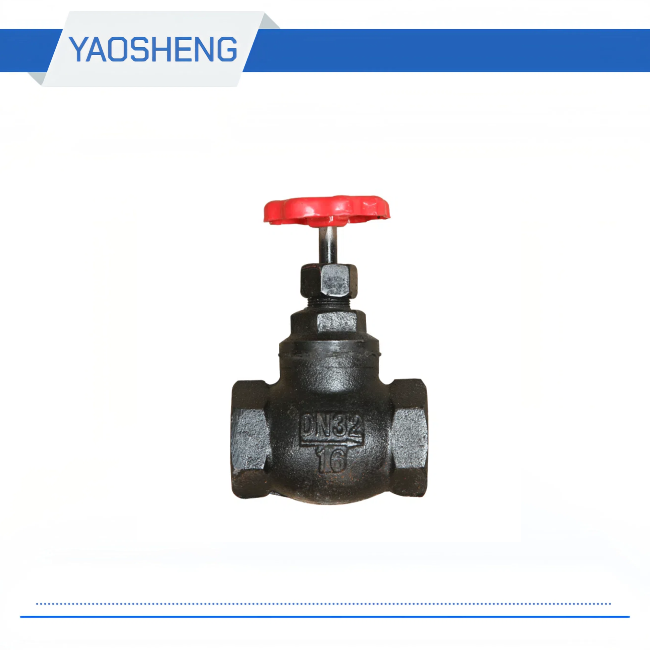

J11T/W-16 JIS Thread Globe Valve

Medium temperature: ≤200 ℃

Operation method: manual

Medium: water, steam

Caliber: DN15-50

Pressure: 1.6mpa

Body material: gray cast iron

Connection: thread


Product Details

J11T/W-16 JIS Thread Globe Valve Material of main parts
Part Namematerial
Body / bonnetgrey cast iron
gategrey cast iron
Valve stemCarbon steel

J11T / W-16 female thread globe valve (Japanese style)

J11T/W-16 JIS Thread Globe Valve Performance specifications
modelNominal pressure
(mpa)
Test pressure (mpa)proper temperatureApplicable medium
Strength (water)Sealed (water)
J11T-161.6 2.40 1.80 ≤200 ℃steam


J11T/W-16 JIS Thread Globe Valve Dimensions and connection dimensions
modelNominal diameter
(mm)
Size (mm)
G
L
LH
J11T-16
Soviet type globe valve
151/26595
203/47594
25190124
321 1/4105123.5
401 1/2120138
502140148
