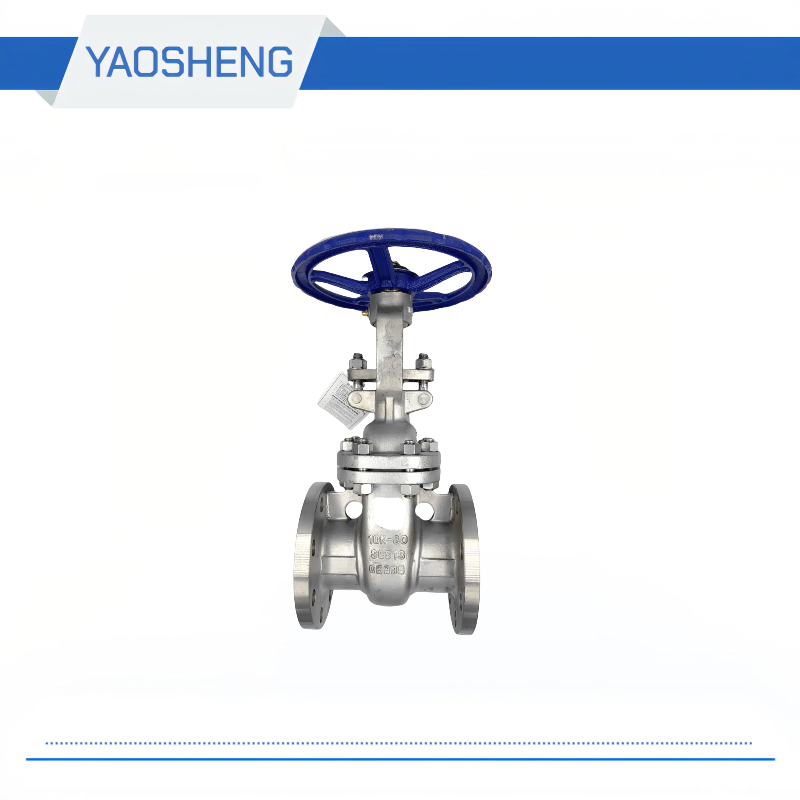

DN 50-300mm JIS 10k Rising Stem Gate Valve

Medium: water, steam, petroleum, etc.

Operation method: manual

Caliber: DN15-600

Pressure: 10K-40K

Body material: cast steel

Connection method: flange

Inquire Now Next Product

DN 50-300mm JIS 10k Rising Stem Gate Valve Material of main parts
Parts name	Material
Body / bonnet	SCS13, SCS14
gate	SCS13
Valve stem	STS304

Performance standard of DN 50-300mm JIS 10k Rising Stem Gate Valve

Working pressure

10k

Working temperature

-20℃~232℃

Applicable medium

Water, oil, steam, etc.

DN 50-300mm JIS 10k Rising Stem Gate Valve appearance size and connection size
model	Nominal diameter (mm)	Size (mm)
model	Nominal diameter (mm)	L	D	D1	D2	b	nφd
Z41H / W-10K	2"	178	155	120	96	16	4-19
	2 1/2 "	190	175	140	116	18	4-19
	3 "	203	185	150	126	18	8-19
	4 "	229	210	175	151	18	8-19
	5 "	254	250	210	182	20	8-23
	6 "	267	280	240	212	22	8-23
	8"	292	330	290	262	22	12-23
	10 "	330	400	355	324	24	12-25
	12 "	356	445	400	368	24	16-25
