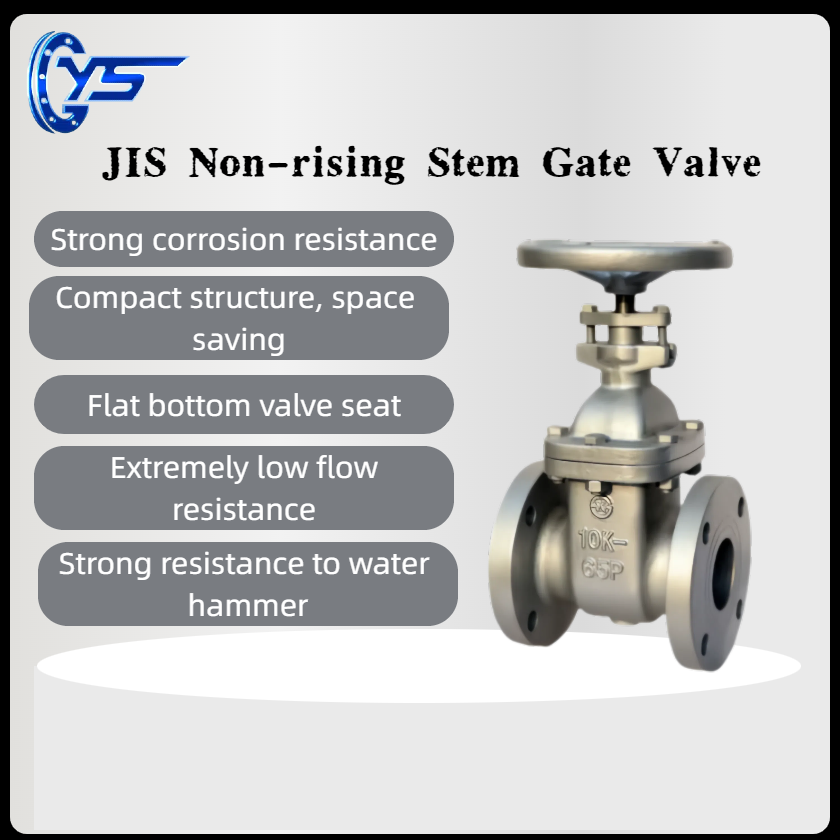

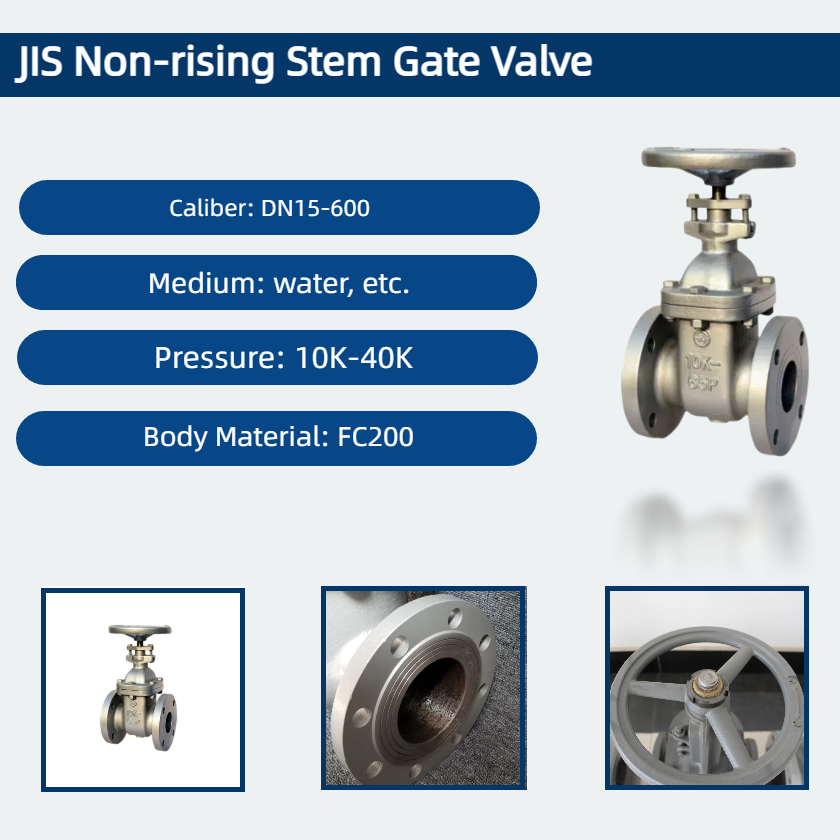

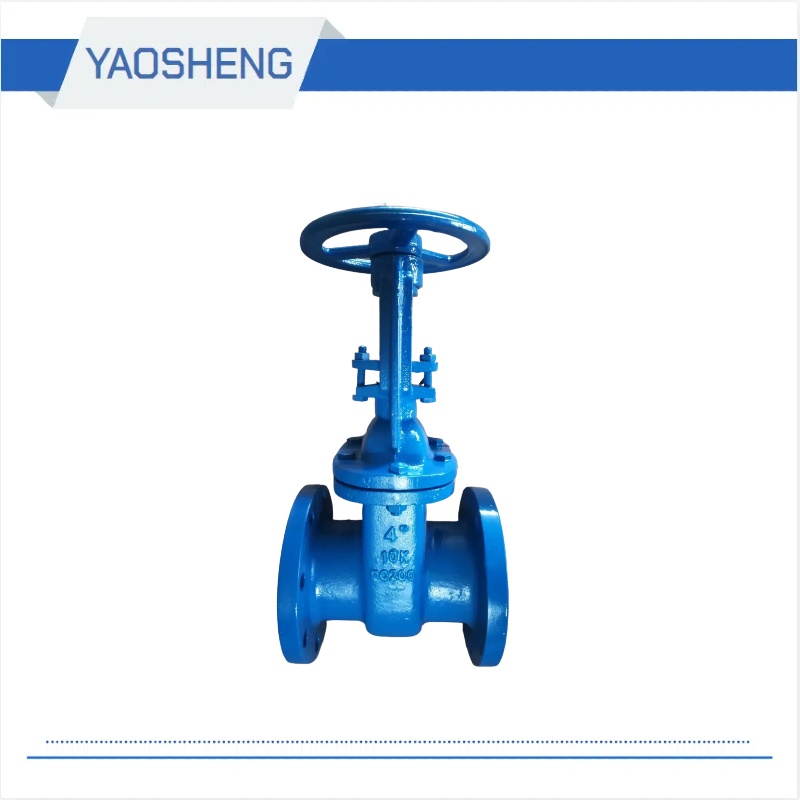

DN 50-300mm JIS Non-rising Stem Gate Valve

Medium: water, etc.

Operation method: manual

Caliber: DN15-600

Pressure: 10K

Body material: FC200

Connection method: flange

Inquire Now Next Product

DN 50-300mm JIS Non-rising Stem Gate Valve Main parts and material
Parts name	Material
Body / bonnet	FC200
gate	FC200
Valve stem	SUS403

Performance standard of JIS Non-rising Stem Gate Valve

Applicable medium

water

JIS Non-rising Stem Gate Valve appearance size and connection size
model	Nominal diameter (mm)	Size (mm)
model	Nominal diameter (mm)	L	D	D1
JIS concealed gate valve -10K	50	178	155	120
	65	190	175	140
	80	203	185	150
	100	229	210	175
	125	254	250	210
	150	267	280	240
	200	292	330	290
	250	330	400	355
	300	356	445	400
