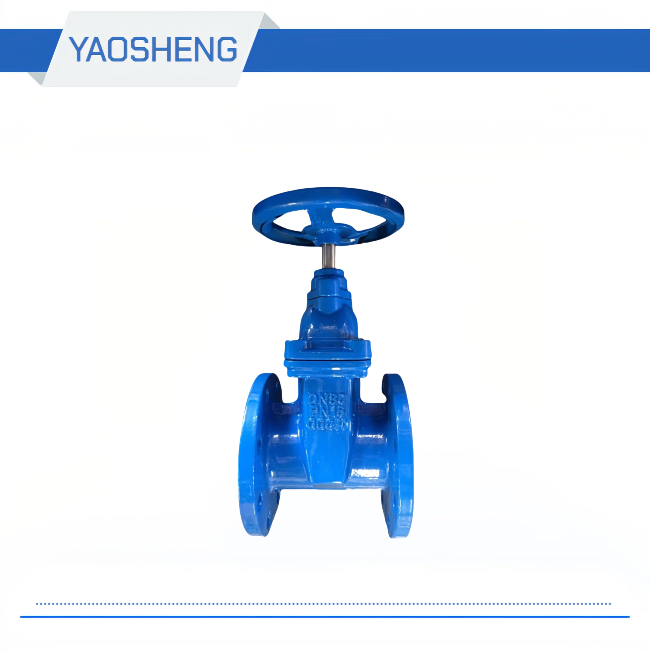

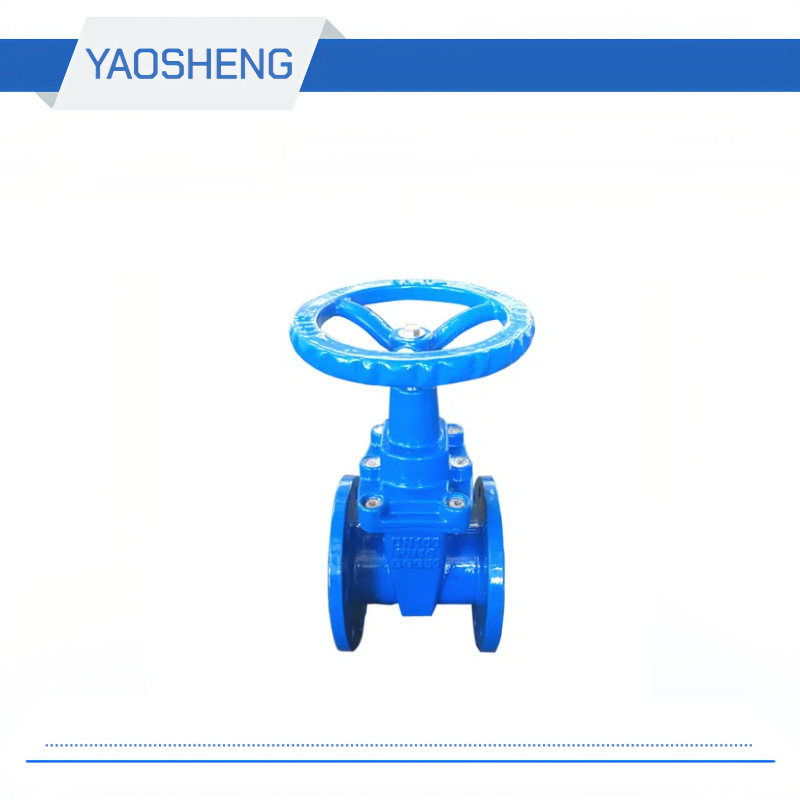

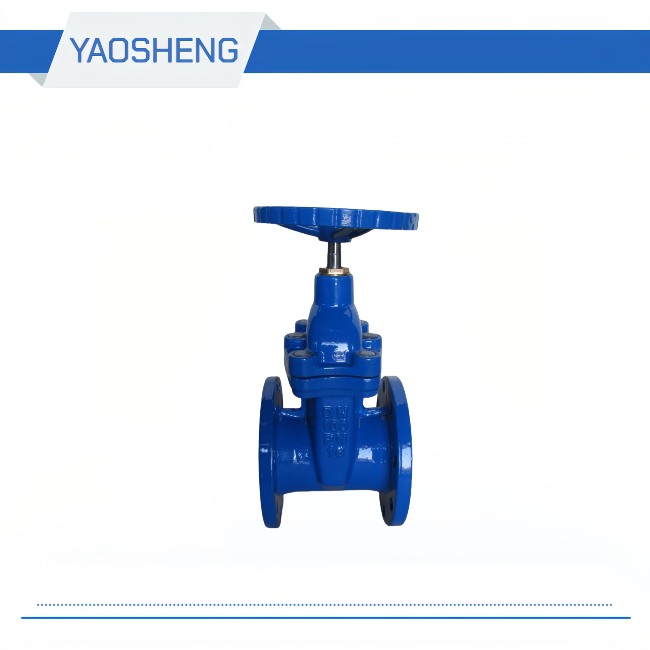

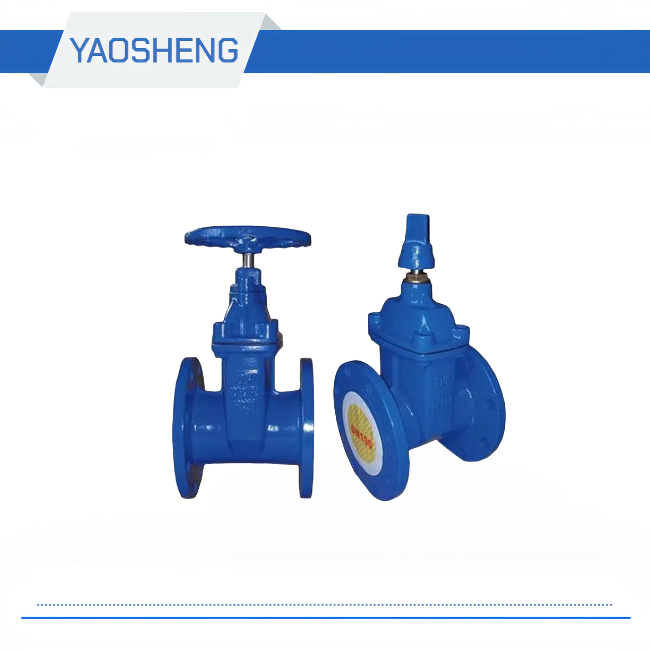

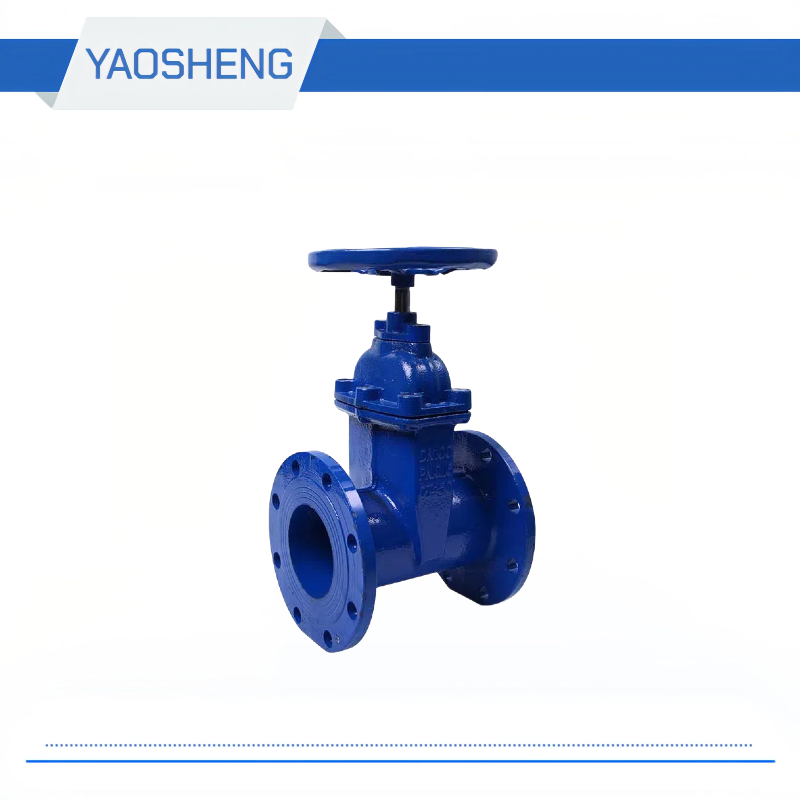

BS Non-rising Stem Resilient Soft Seated O Type Gate Valve

Medium temperature: ≤80 ℃

Operation mode: manual, electric

Medium: water

Caliber: DN350-600mm

Pressure: 1.0-1.6mpa

Body Material: Ductile Iron

Connection method: flange

Inquire Now Next Product

Product Details

BS Non-rising Stem Resilient Soft Seated o Type Gate Valve Material of main parts
Part name	Material
Body/ bonnet	Ductile iron
gate	Ductile iron + EPDM
Valve stem	stainless steel
Stem nut	Brass / Ductile lron

BS Non-rising stem Resilient Soft Seated o Type Gate Valve Performance Specification
model	Nominal pressure (mpa)	Test pressure(mpa)		proper temperature	Applicable medium
		Strength(water)	Sealed (water)
Z45X-10	1.00	1.50	1.10	≤80“C	water
Z45X-16	1.60	2.40	1.76

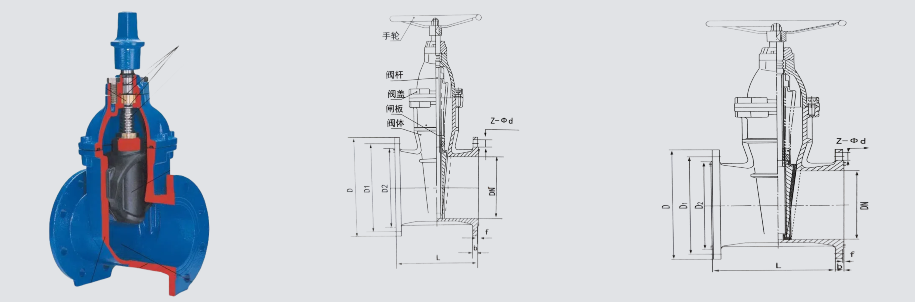

Bs Non-rising Stem Resilient Soft Seated 0 Type Gate Valve Dimensions and Connection Dimensions
model	Nominal diameter(mm)	Size(mm)
		L	D	C	f	t	N-φd
		L	D	C	f	t	PN10	PN16
Z45X-10/16Q	350	381	520	460-470	4	26.5	16-φ23	16-φ28
	400	406	580	515/525	4	28	16-φ28	16-φ31
	450	432	640	565/585	4	30	20-φ28	20-φ31
	500	457	715	620/650	4	31.5	20-φ28	20-φ34
	600	508	840	725/770	5	36	20-φ31	20-φ37

Features

-Adopting an integral rubber coated gate design, utilizing elastic deformation compensation to achieve tight sealing, effectively solving the problem of water leakage in traditional gate valves

-The inner cavity of the valve body is coated with epoxy resin to prevent rust and corrosion, suitable for sewage systems and drinking water pipelines

-Precision machined valve stem reduces operating torque, making the switch lightweight and effortless

-Ductile iron material enhances impact resistance, is less prone to fracture, and extends service life

-The flat bottomed valve seat structure is flush with the pipeline, avoiding the accumulation of debris, ensuring smooth fluid flow and reliable sealing

-Used for intercepting or regulating the flow of fluid pipelines such as tap water, sewage, energy systems, etc
