  • Z45X-10 / 16 DIN O-type F4 concealed gate valve

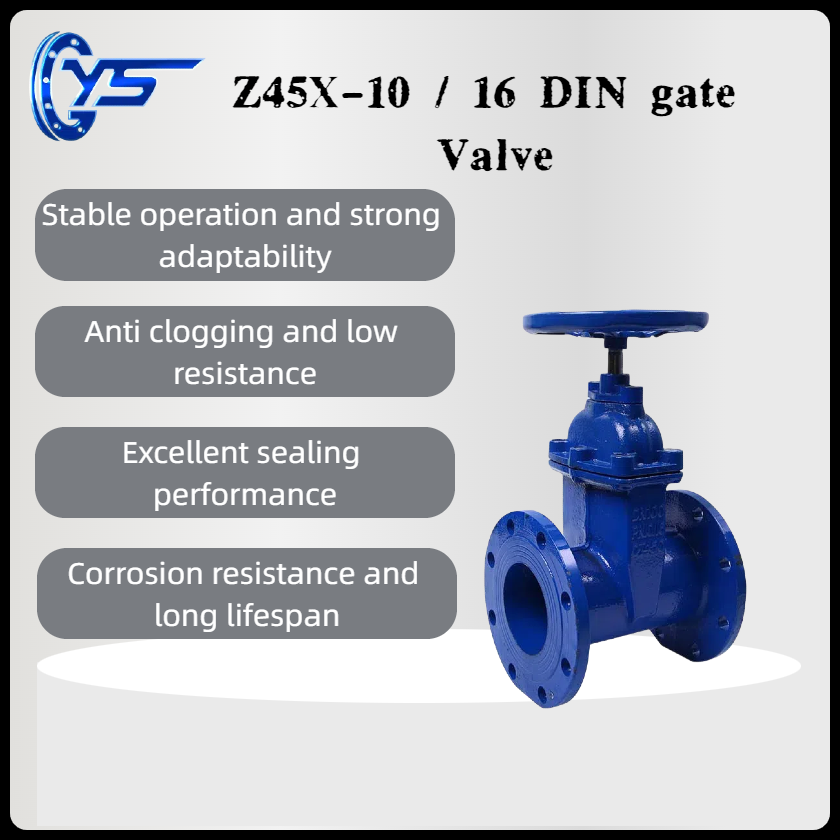

Z45X-10 / 16 DIN O-type F4 concealed gate valve

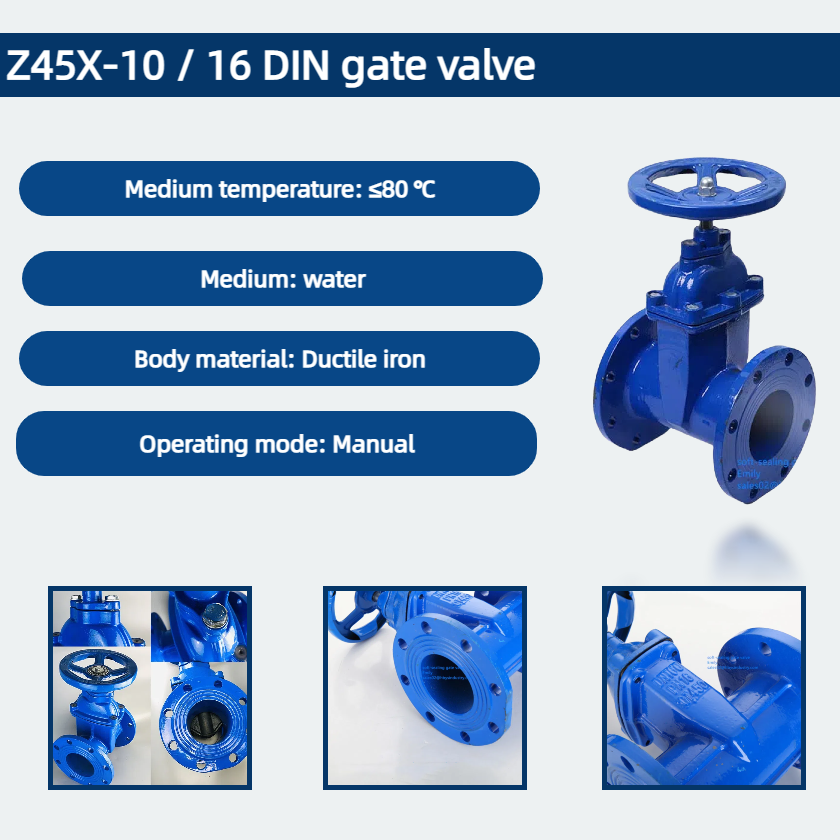

Medium temperature: ≤80 ℃
Operating mode: Manual
medium: Water
caliber: DN40-800mm
Pressure: 1.0-1.6mpa
Body material: Ductile iron
Connection method: Flange

Product Details

DIN O-type F4 concealed gate valve Material of main parts
Part Namematerial
Body / bonnetDuctile iron
gateDuctile iron + EPDM
Valve stemstainless steel
Stem nutBrass / Ductile Iron

Application: Cut off or connect pipeline medium on roads under hydraulic conditions.

Z45X-10 / 16 German standard O-type F4 concealed gate valve

DIN O type F4 dark rod gate valve Z45X performance specification
modelNominal pressure
(mpa)
Test pressure (mpa)proper temperatureApplicable medium
Strength (water)Sealed (water)
Z45X-101.00 1.50 1.10 ≤80 ℃water
Z45X-161.60 2.40 1.76 ≤80 ℃water


DIN O type F4 concealed gate valve Z45X dimensions and connection dimensions
modelNominal diameter
(mm)
Size (mm)
LDCBN-φd
PN10 / 16PN10PN16PN10PN16
Z45X-10 / 16Q50150165125994 * φ19
651701851451194 * φ19
801802001601334 * φ198 * φ19
1001902201801548 * φ19
1252002502101848 * φ19
1502102852402108 * φ23
2002303402952658 * φ2312 * φ23
25025040535035531912 * φ2312 * φ28
30027046040041037012 * φ2312 * φ28
