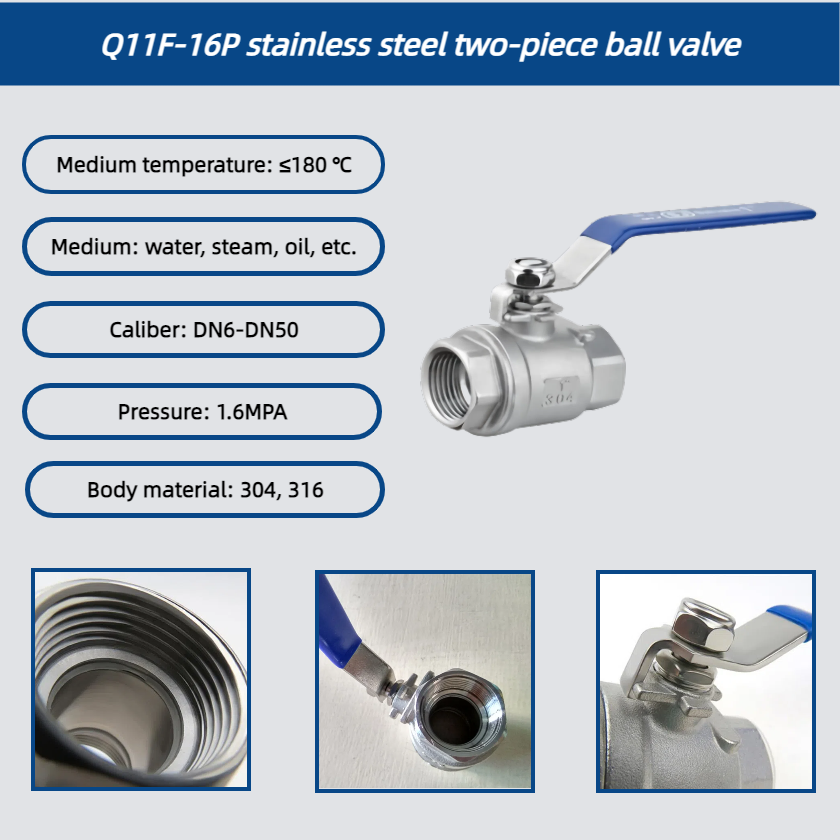

Medium temperature: ≤180 ℃
Medium: water, steam, oil, etc.
Caliber: DN6-DN50
Pressure: 1.6MPA
Body material: 304, 316
Connection method: Thread
operation method: handle

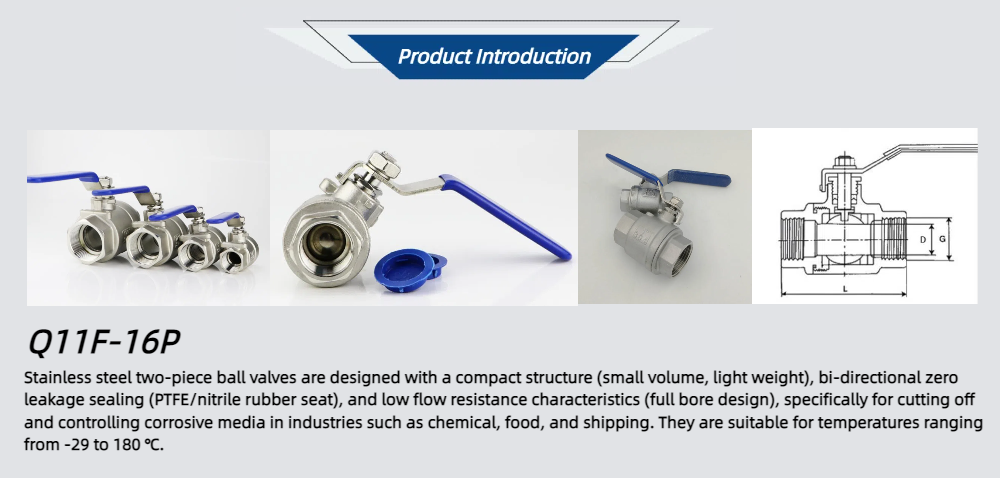

| Q11F-16P stainless steel two-piece ball valve Material of main parts | |
| Part Name | material |
| Valve body | 304, 316 |
| Sphere | 304, 316 |
| Valve stem | 304, 316 |
| Sealing ring | PTFE |

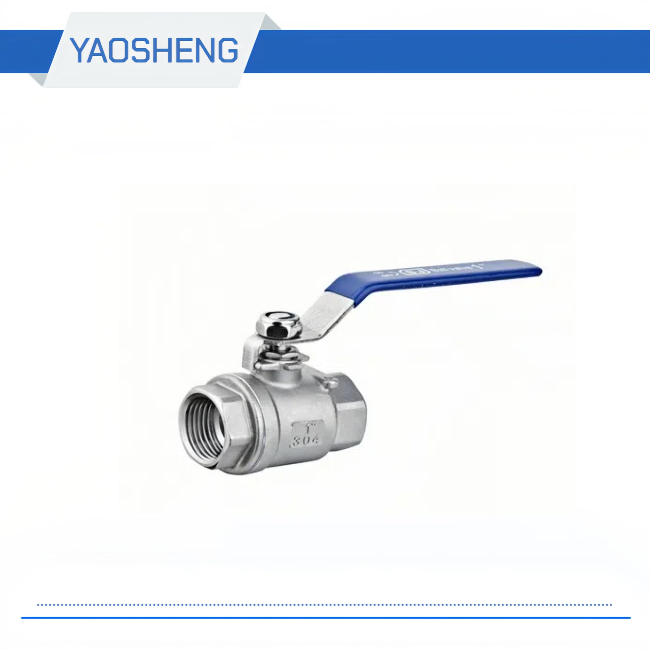

| Q11F-16P Stainless steel two-piece ball valve | |
| Operating Pressure | 1.6MPa |
| Operating Temperature | -20℃~232℃ |
| Applicable Media | Water, oil, gas, steam, etc., widely used in industrial piping systems |
| Q11F-16P stainless steel two-piece ball valve dimensions and connection dimensions | |||||
| model | Nominal diameter (mm) | Size (mm) | |||
| G | B | L | E | ||
| Q11F-16 | 6 | 1/4 " | 10 | 55 | 11.5 |
| 10 | 3/8 " | 12 | 55 | 11.5 | |
| 15 | 1/2 " | 15 | 57 | 14 | |
| 20 | 3/4 " | 20 | 65 | 15 | |
| 25 | 1" | 25 | 79 | 15 | |
| 32 | 1 1/4 " | 32 | 90 | 18 | |
| 40 | 1 1/2 " | 38 | 98 | 19 | |
| 50 | 2" | 50 | 115 | 19 | |
