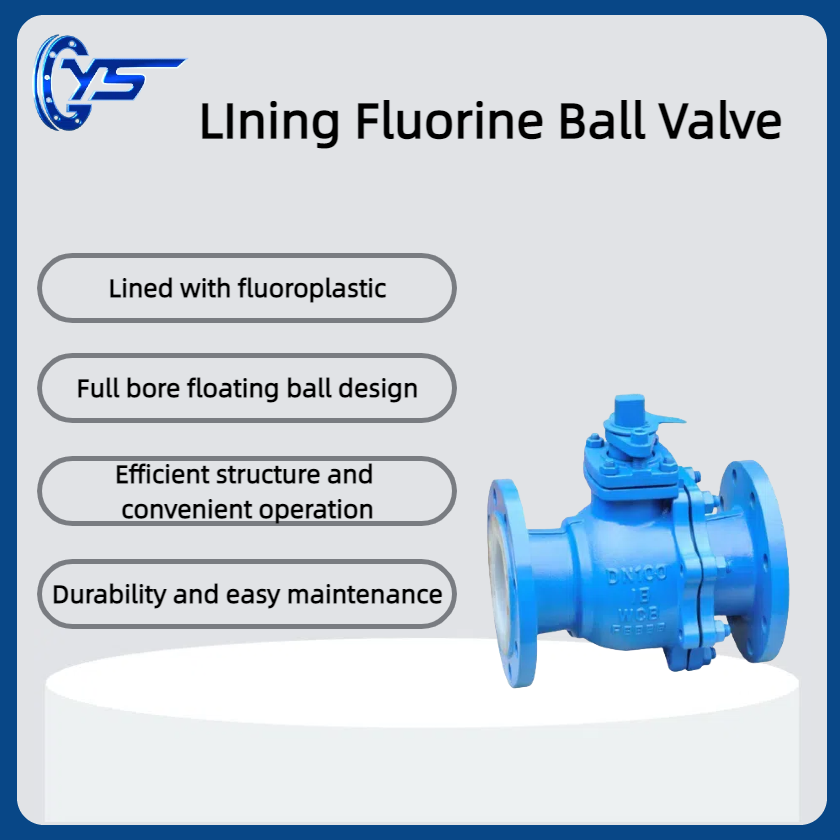

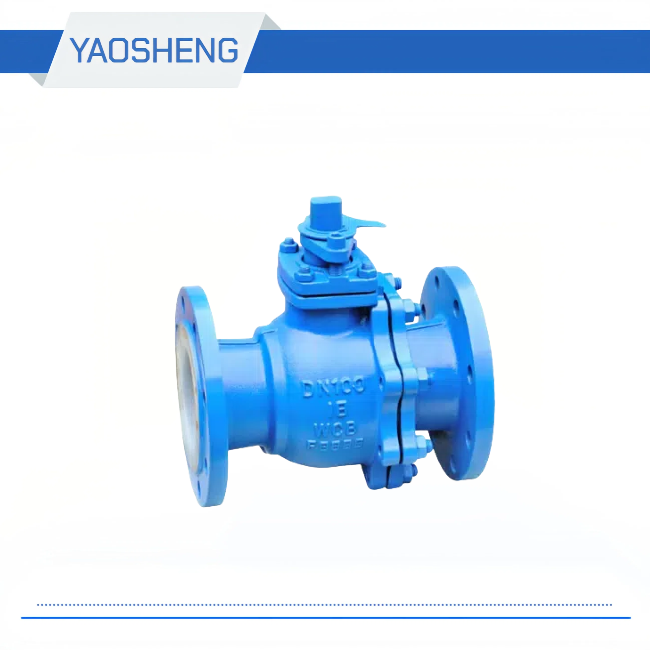

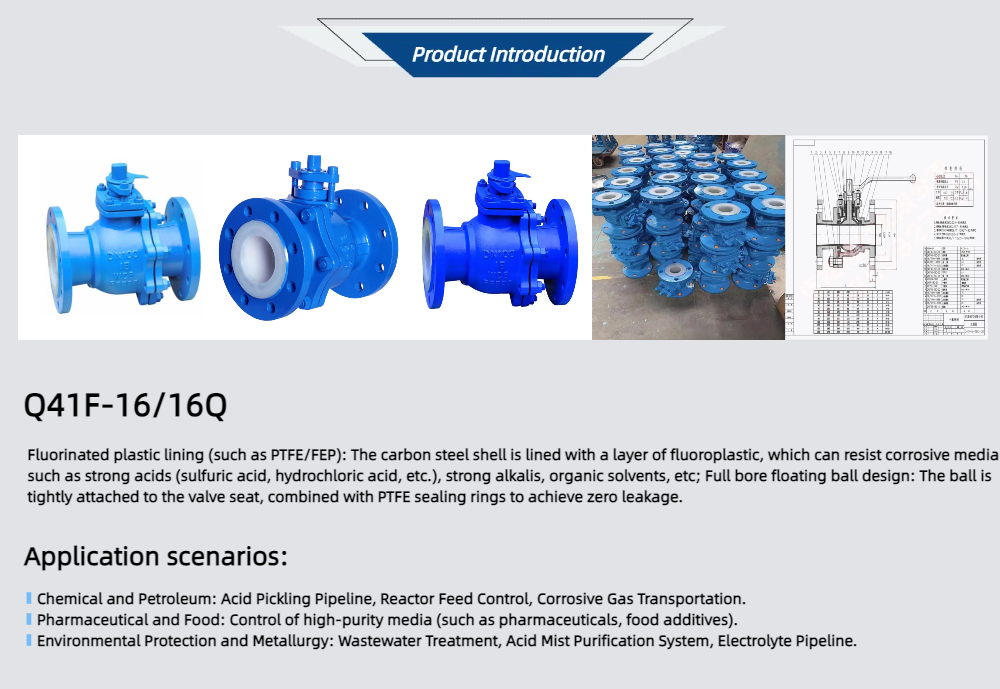

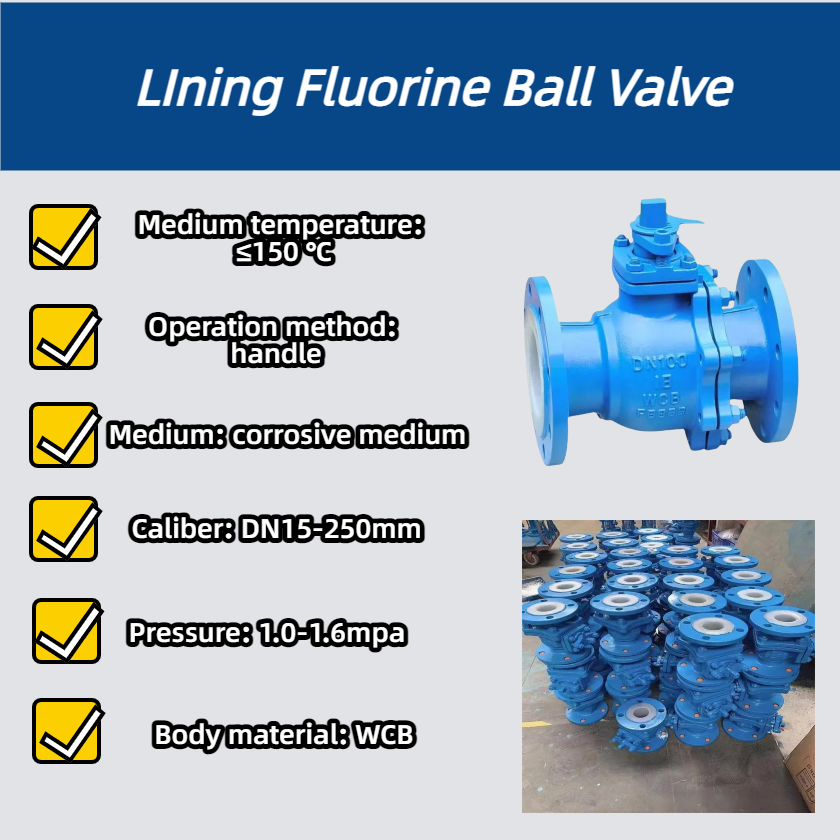

Medium temperature: ≤150 ℃
Operation method: handle
Medium: corrosive medium
Caliber: DN15-250mm
Pressure: 1.0-1.6mpa
Body material: WCB
Connection method: flange
| Manual Lining Fluorine Ball Valve Main parts and materials | |||
| Parts name | Material | ||
| Valve body | WCB | ||
| Sealing ring | PTFE | ||
| Valve stem | stainless steel | ||
| Sphere | WCB | ||
| Manual Lining Fluorine Ball Valve Function and specification | |||||||
| Type | Nominal pressure （mpa） | esting pressure（mpa） | Suitable temperature | Suitable medium | |||
| Strength (Water) | Enclose (Water) | ||||||
| Q41F46-16 | 1.0 | 1.50 | 1.10 | ≤150℃ | Corrosive medium | ||
| Q41F46-16 | 1.6 | 2.40 | 1.76 | ≤150℃ | Corrosive medium | ||
| Manual Lining Fluorine Ball Valve Outline and connecting measurement | |||||||
| Type | Nominal DN(mm） | Measurement（mm） | |||||
| L | D | D1 | D2 | b-f | z-φd | ||
| Q41F46-10/16 | 15 | 130 | 95 | 65 | 45 | 14-3 | 4*φ13.5 |
| 20 | 140 | 105 | 75 | 55 | 16-3 | 4*φ13.5 | |
| 25 | 150 | 115 | 85 | 65 | 16-3 | 4*φ13.5 | |
| 32 | 165 | 140 | 100 | 78 | 18-3 | 4*φ17.5 | |
| 40 | 180 | 150 | 110 | 85 | 18-3 | 4*φ17.5 | |
| 50 | 200 | 165 | 125 | 100 | 20-3 | 4*φ17.5 | |
| 65 | 220 | 185 | 145 | 120 | 20-3 | 4*φ17.5 | |
| 80 | 250 | 200 | 160 | 135 | 22-3 | 4*φ17.5 | |
| 100 | 280 | 220 | 180 | 155 | 24-3 | 8*φ17.5 | |
| 125 | 320 | 250 | 210 | 185 | 24-3 | 8*φ17.5 | |
| 150 | 360 | 285 | 240 | 210 | 26-3 | 8*φ22 | |
| 200 | 400 | 340 | 295 | 265 | 28-4 | 8*φ22 | |
