Medium temperature: ≤100 ℃
Operation method: manual
Medium: water
Caliber: DN20-150
Pressure: 1.6mpa
Body material: gray cast iron
Connection method: flange

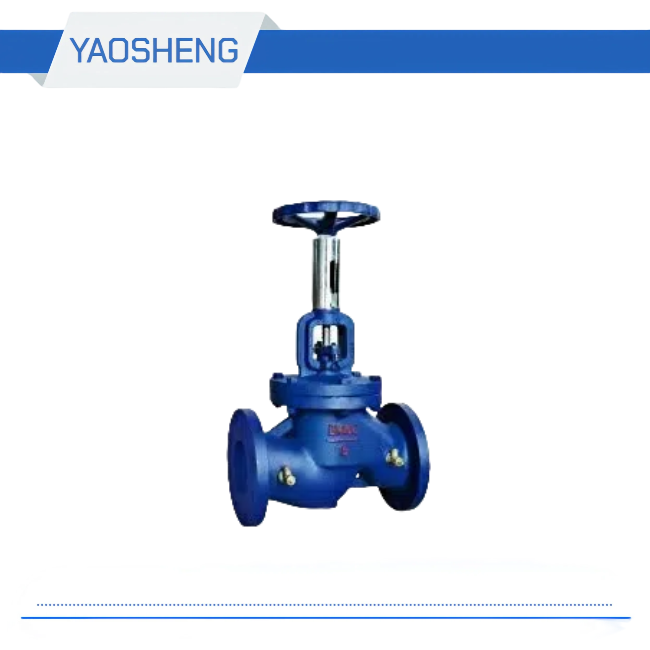

| Balance Valve JP41F Material of main parts | |||
| Part Name | material | ||
| Valve body | grey cast iron | ||
| gate | grey cast iron | ||
| filler | Flexible graphite | ||
| Stem nut | brass | ||
| Performance Specifications of Balance Valve JP41F | |||||||
| model | Nominal pressure (mpa) | Test pressure (mpa) | proper temperature | Applicable medium | |||
| Strength (water) | Sealed (water) | ||||||
| JP41F-16 | 1.60 | 2.40 | 1.76 | 0 ～ 100 ℃ | water | ||
| Balance and connection dimensions of JP41F | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | D2 | bf | N-φd | ||
| JP41F-16 | 25 | 160 | 115 | 85 | 65 | 16-2 | 4-14 |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-18 | |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-18 | |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-18 | |
| 65 | 290 | 180 | 145 | 120 | 20-3 | 4-18 | |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 4-18 | |
| 100 | 350 | 215 | 180 | 155 | 24-3 | 4-18 | |
| 125 | 400 | 245 | 210 | 185 | 26-3 | 4-18 | |
| 150 | 480 | 280 | 240 | 210 | 28-3 | 8-23 | |
