Operation method: manual
Medium: water
Caliber: DN200-350
Pressure: 1.0-1.6mpa
Body material: gray cast iron
Connection method: flange

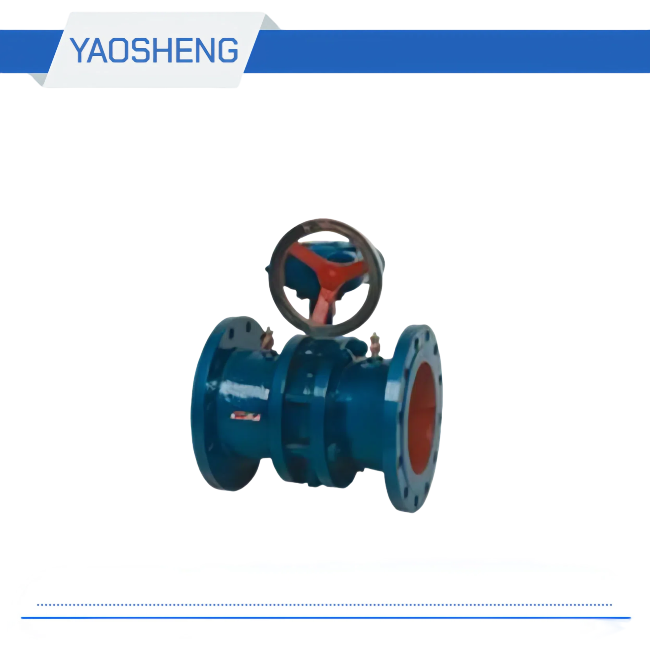

| DP41X/F-10/16 Butterfly Balanced Valve Material of main parts | |||
| Part Name | material | ||
| Valve body | grey cast iron | ||
| Butterfly valve | D371X / F-10 / 16 | ||
| Angle globe valve | copper | ||
| Butterfly counterbalance valve DP41X / F overall dimensions and connection dimensions | ||||||
| model | Nominal diameter (mm) | Size (mm) | ||||
| L | D | D1 | D2 | Z-φd | ||
| DP41X / F-16 | 200 | 385 | 335 | 295 | 265 | 12-23 |
| 250 | 450 | 405 | 335 | 320 | 12-25 | |
| 300 | 485 | 460 | 410 | 375 | 12-25 | |
| 350 | 487 | 520 | 470 | 435 | 16-25 | |
