Medium temperature: ≤80 ℃
Operation mode: bevel gear, hand wheel
Medium: water
Caliber: DN50-800
Pressure: 1.0-2.5mpa
Body Material: Ductile Iron
Connection method: flange

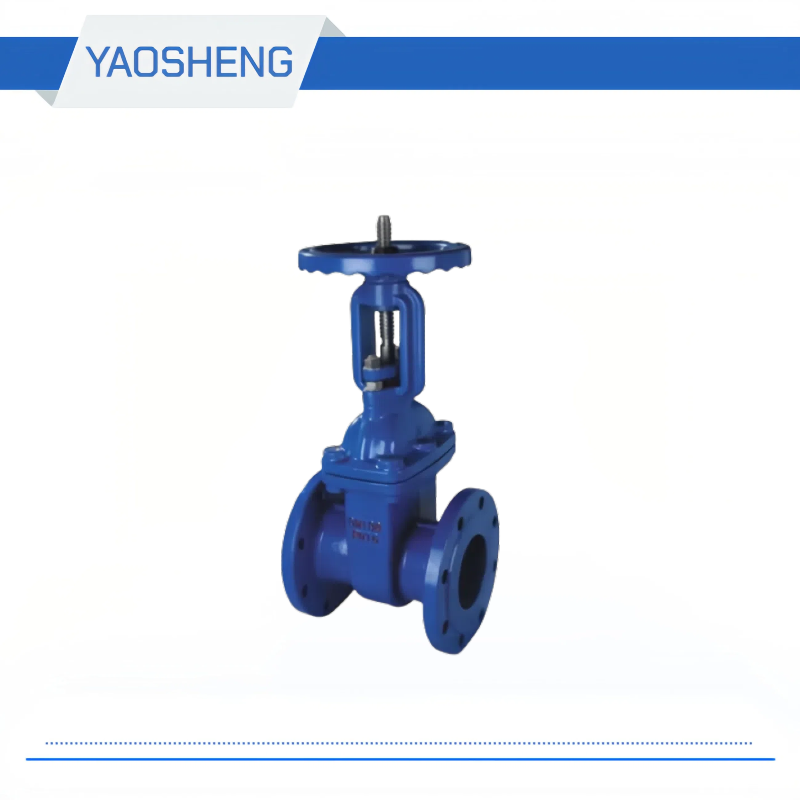

| Rising Stem Soft Sealing Gate Valve Main parts and materials | |||
| Parts name | Material | ||
| Body / bonnet | Ductile iron | ||
| Shutter | Ductile iron+EPDM/NBR | ||
| Valve stem | stainless steel | ||
| Stem nut | Ductile iron / copper | ||
| Rising Stem Soft Sealing Gate Valve Function and specification | |||||||
| Type | Nominal pressure （mpa） | esting pressure（mpa） | Suitable temperature | Suitable medium | |||
| Strength (Water) | Enclose (Water) | ||||||
| Z41X-10 | 1.00 | 1.50 | 1.10 | ≤80℃ | water | ||
| Z41X-16 | 1.60 | 2.40 | 1.76 | ≤80℃ | water | ||
| Rising Stem Soft Sealing Gate Valve Outline and connecting measurement | |||||||
| Type | Nominal DN(mm） | Measurement（mm） | |||||
| L | D | D1 | D2 | b | z-φd | ||
| Z41X-10/16Q | 50 | 178 | 165 | 125 | 99 | 19-3 | 4*φ19 |
| 65 | 190 | 185 | 145 | 118 | 19-3 | 4*φ19 | |
| 80 | 203 | 200 | 160 | 132 | 19-3 | 8*φ19 | |
| 100 | 229 | 220 | 180 | 156 | 21-3 | 8*φ19 | |
| 125 | 254 | 250 | 210 | 184 | 22-3 | 8*φ19 | |
| 150 | 267 | 285 | 240 | 211 | 23-3 | 8*φ23 | |
| 200 | 292 | 340 | 295 | 266 | 23-3 | 8*φ23/12*φ23 | |
| 250 | 330 | 395/405 | 350/355 | 319 | 26-3 | 12*φ23/12*φ28 | |
| 300 | 356 | 445/460 | 400/410 | 370 | 28.5-4 | 12*φ23/12*φ28 | |
