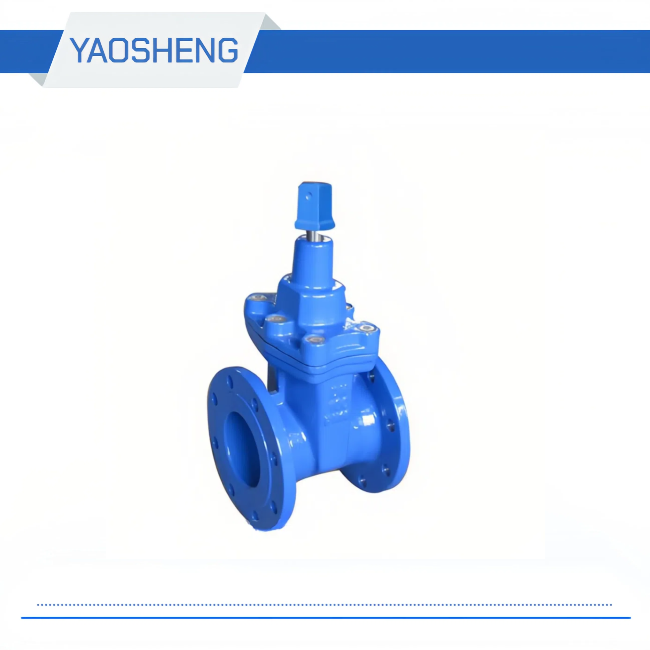

Medium temperature: ≤80 ℃
Operation mode: manual, electric
Medium: water
Caliber: DN50-800mm
Pressure: 1.0-1.6mpa
Body Material: Ductile Iron
Connection method: flange
| BS Rising Stem Gate Valve Material of main parts | ||
| Part Name | material | |
| Body / bonnet | Ductile iron | |
| gate | Ductile iron + EPDM | |
| Valve stem | stainless steel | |
| Stem nut | Brass / Ductile Iron | |
| BS Rising Stem Gate Valve Perfoemance Specification | |||||
| Model | Nominal pressure (MPa) | Teat pressure (MPa) | Proper temperature | Applicable medium | |
| Strength(water） | Sealed(water) | ||||
| Z45X-10 | 1.00 | 1.50 | 1.10 | ≤80℃ | water |
| Z45X-16 | 1.60 | 2.40 | 1.76 | ||
| BS Rising Stem Gate Valve Dimensions and Connection Dimensions | ||||||||
| model | Nominal diameter (mm) | Size (mm) | ||||||
| L | D | D1 | D2 | t | N-φd | |||
| PN10 / 16 | PN10 / 16 | PN10 / 16 | PN10 | PN16 | ||||
| Z45X-10 / 16Q | 50 | 178 | 160 | 125 | 99 | 17 | 4 * φ18 | |
| 65 | 190 | 180 | 145 | 118 | 17 | 4 * φ18 | ||
| 80 | 203 | 195 | 160 | 132 | 18 | 8 * φ18 | ||
| 100 | 229 | 215 | 180 | 156 | 19 | 8 * φ18 | ||
| 125 | 254 | 245 | 210 | 184 | 20 | 8 * φ18 | ||
| 150 | 267 | 280 | 240 | 211 | 21 | 8 * φ22 | ||
| 200 | 292 | 335 | 295 | 266 | 20 | 8 * φ22 | 12 * φ22 | |
| 250 | 330 | 390/400 | 350/355 | 319 | 22 | 12 * φ22 | 12 * φ26 | |
| 300 | 356 | 440/455 | 400/410 | 370 | 24.5 | 12 * φ22 | 12 * φ26 | |
| 350 | 381 | 500/510 | 460/470 | 429 | 26.5 | 16 * φ22 | 16 * φ26 | |
| 400 | 406 | 560/575 | 515/525 | 480 | 28 | 16 * φ26 | 16 * φ30 | |
| 450 | 432 | 615/640 | 565/585 | 530/548 | 30 | 20 * φ26 | 20 * φ30 | |
| 500 | 457 | 670/715 | 620/650 | 582/609 | 31.5 | 20 * φ26 | 20 * φ33 | |
| 600 | 508 | 780/840 | 725/770 | 682/720 | 36 | 20 * φ30 | 20 * φ36 | |
