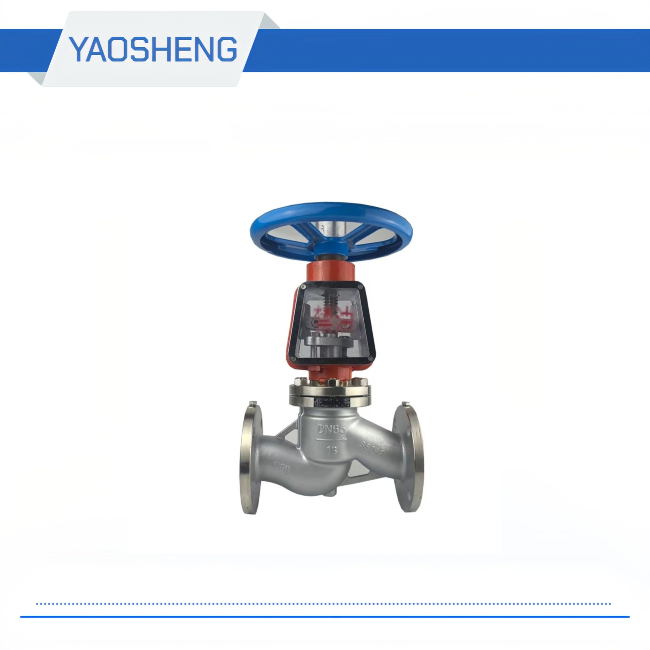

Medium temperature: ≤200 ℃
Operation method: manual
Medium: oxygen
Caliber: DN15-400
Pressure: 2.5-4.0mpa
Body material: stainless steel
Connection method: flange
Implementation Standard: National Standard
| Oxygen Pipe Globe Valve Material of main parts | |||||
| Part name | Material | ||||
| Body / bonnet | CF8/CF3/CF8M/CF3M | ||||
| Shutter | CF8/CF3/CF8M/CF3M | ||||
| Valve stem | F304/F304L/F316/F316L | ||||
| Stem nut | Ductile iron / brass | ||||
| Oxygen Pipe Globe Valve Performance specificatios | |||||||||
| model | Nominal pressure （LB） | test pressure（mpa） | proper temperature | Applicable medium | |||||
| strength | seal | ||||||||
| YJ41W-25P/T | 2.5 | 3.75 | 2.75 | ≤200℃ | Oxygen | ||||
| YJ41W-40P/T | 4.0 | 6.00 | 4.40 | ||||||
| Oxygen Pipe Globe Valve Dimensions and connection dimensions | |||||||||
| model | Nominal diameter （mm） | size（mm） | |||||||
| L | D | D1 | D2 | b | z-φd H1 | ||||
| YJ41W-25P/T | 15 | 130 | 95 | 65 | 45 | 16 | 4*φ14 | ||
| 20 | 150 | 105 | 75 | 55 | 16 | 4*φ14 | |||
| 25 | 160 | 115 | 85 | 65 | 16 | 4*φ14 | |||
| 32 | 180 | 135 | 100 | 78 | 18 | 4*φ18 | |||
| 40 | 200 | 145 | 110 | 85 | 18 | 4*φ18 | |||
| 50 | 230 | 160 | 125 | 100 | 20 | 4*φ18 | |||
| 65 | 290 | 180 | 145 | 120 | 22 | 8*φ18 | |||
| 80 | 310 | 195 | 160 | 135 | 22 | 8*φ18 | |||
| 100 | 350 | 230 | 190 | 160 | 24 | 8*φ23 | |||
| 125 | 400 | 270 | 220 | 188 | 28 | 8*φ25 | |||
| 150 | 480 | 300 | 250 | 218 | 30 | 8*φ25 | |||
| 200 | 600 | 360 | 310 | 278 | 34 | 12*φ25 | |||
| 250 | 650 | 425 | 370 | 332 | 36 | 12*φ30 | |||
| 300 | 750 | 485 | 430 | 390 | 40 | 16*φ30 | |||
| 400 | 950 | 610 | 550 | 505 | 48 | 16*φ34 | |||
