Size:1/4in, 3/8in, 1/2in, 3/4IN, 1in, 1 1/4in, 1 1/2in, 2in, 2 1/2in
Pressure:Low Pressure, 5K,10K,16K
Power:Manual
Media:Water,Oil,Steam, Water,Oil,Steam
Quality:Top

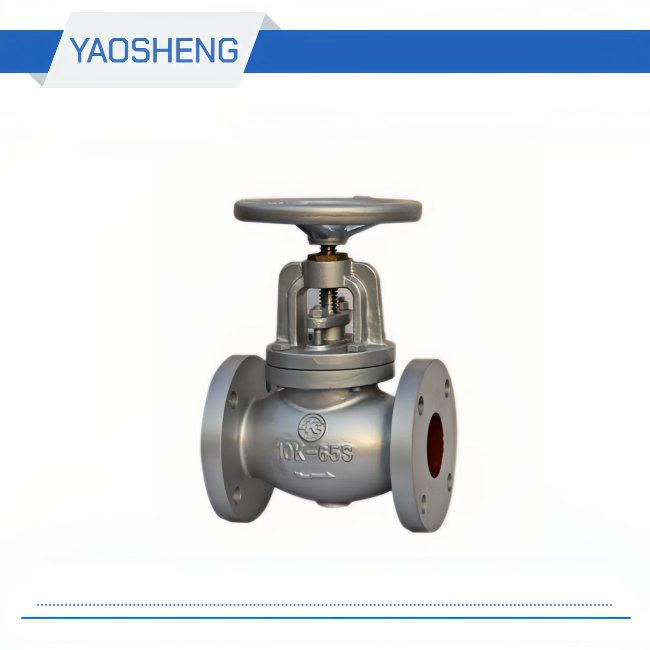

| JIS 10K Globe Valve | |
| Product features | Japanese standard globe valve |
| Connection type | flange |
| Working temperature | room temperature |
| Flow direction | Unidirectional |
| Material | Cast Iron |
| Applicable medium | water |
| Model | J41T-10K |
| Pressure environment | atmospheric pressure |
| Material | Cast Iron |
| J41T-10K | |||||||
| model | Nominal diameter (mm) | Size (mm) | |||||
| L | D | D1 | D2 | b | z-φtd | ||
| J41H-10K | 50 | 203 | 155 | 120 | 100 | 16 | 4-19 |
| 65 | 216 | 175 | 140 | 120 | 18 | 4-19 | |
| 80 | 241 | 185 | 150 | 130 | 18 | 8-19 | |
| 100 | 292 | 210 | 175 | 155 | 18 | 8-19 | |
| 125 | 356 | 250 | 210 | 185 | 20 | 8-23 | |
| 150 | 406 | 280 | 240 | 215 | 22 | 8-23 | |
| 200 | 495 | 330 | 290 | 265 | 22 | 12-23 | |
