  • electric dark rod wedge gate valve Z945T / W

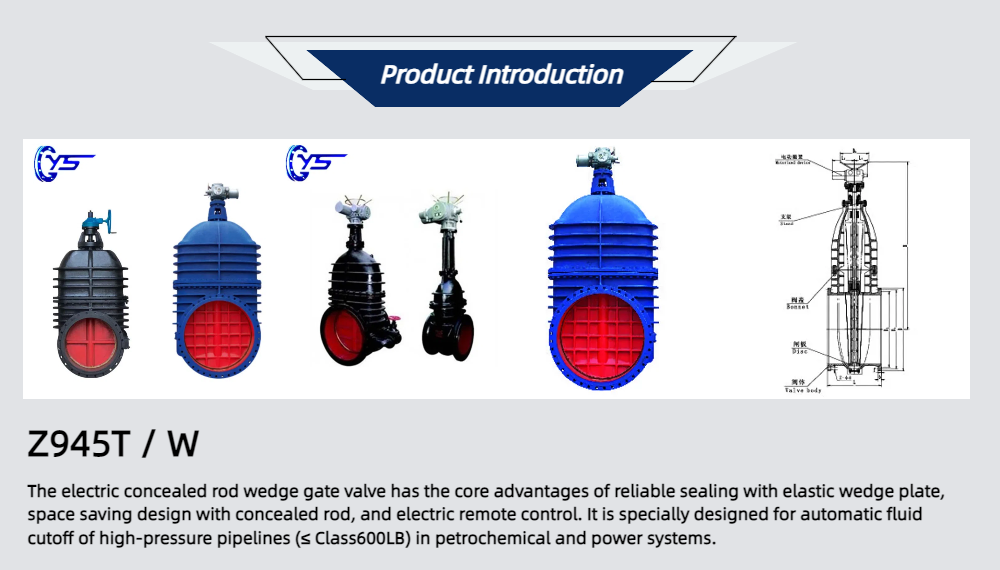

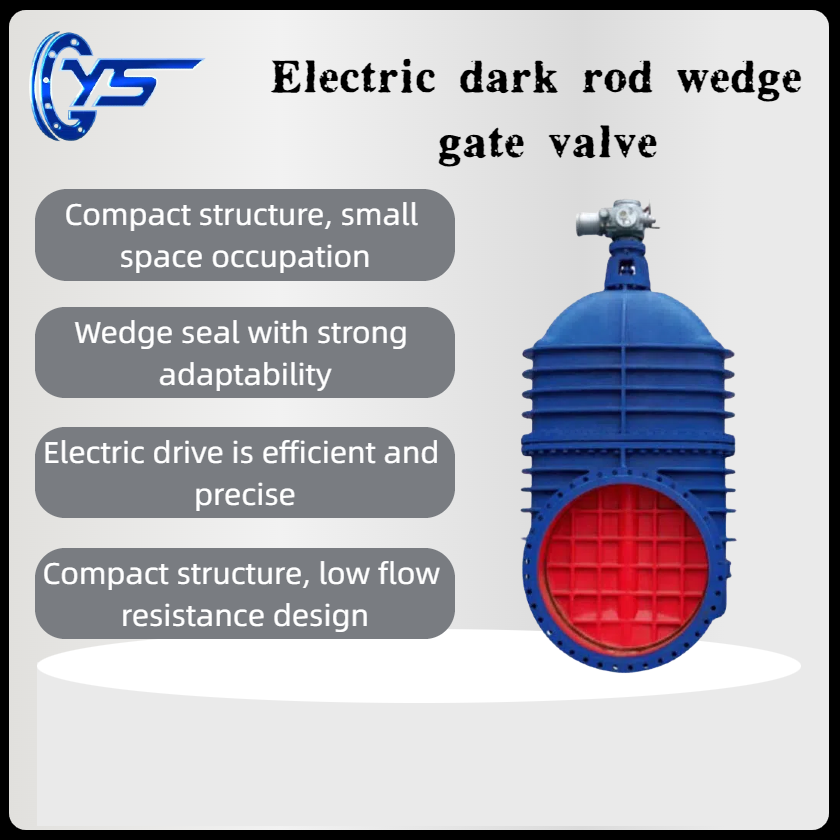

electric dark rod wedge gate valve Z945T / W

Medium temperature: ≤100 ℃

Operation method: Denso

Medium: water, oil (selected according to seal)

Caliber: DN50-1800

Pressure: 0.6-1.0mpa

Body material: gray cast iron, nodular cast iron

Connection method: flange


Product Details

electric dark rod wedge gate valve Z945T / W Material of main parts
Part Namematerial
Body / bonnetGray cast iron, ductile cast iron
gateGray cast iron, ductile cast iron
Valve stemCarbon steel, stainless steel
Stem nutDuctile iron, brass

Application: This valve is mainly used for opening and closing on the pipeline.

Z945T / W-6 / 6Q / 10 / 10Q Electric Wedge Gate Valve

Performance specification of electric dark rod wedge gate valve Z945T / W
modelNominal pressure
(mpa)
Test pressure (mpa)proper temperatureApplicable medium
Strength (water)Sealed (water)
Z945T-101.00 1.50 1.10 ≤100 ℃water
Z945W-101.00 1.50 1.10 ≤100 ℃Oil
Z945T-60.60 0.90 0.66 ≤100 ℃water
Z945W-60.60 0.90 0.66 ≤100 ℃Oil


Outer dimensions and connection dimensions of electric dark rod wedge gate valve
modelNominal diameter
(mm)
Size (mm)
LDD1D2bfz-φd
Z945T / W-105017816012510020-34 * φ18
6519018014512020-34 * φ18
8020319516013522-34 * φ18
10022921518015522-38 * φ18
12525424521018524-38 * φ18
15028028024021024-38 * φ23
20033033529526526-38 * φ23
25038039035032028-312 * φ23
30042044040036828-412 * φ23
35045050046042830-416 * φ23
40048056551548232-416 * φ25
45051061556553232-420 * φ25
50054067062058534-420 * φ25
60060078072568536-520 * φ30
