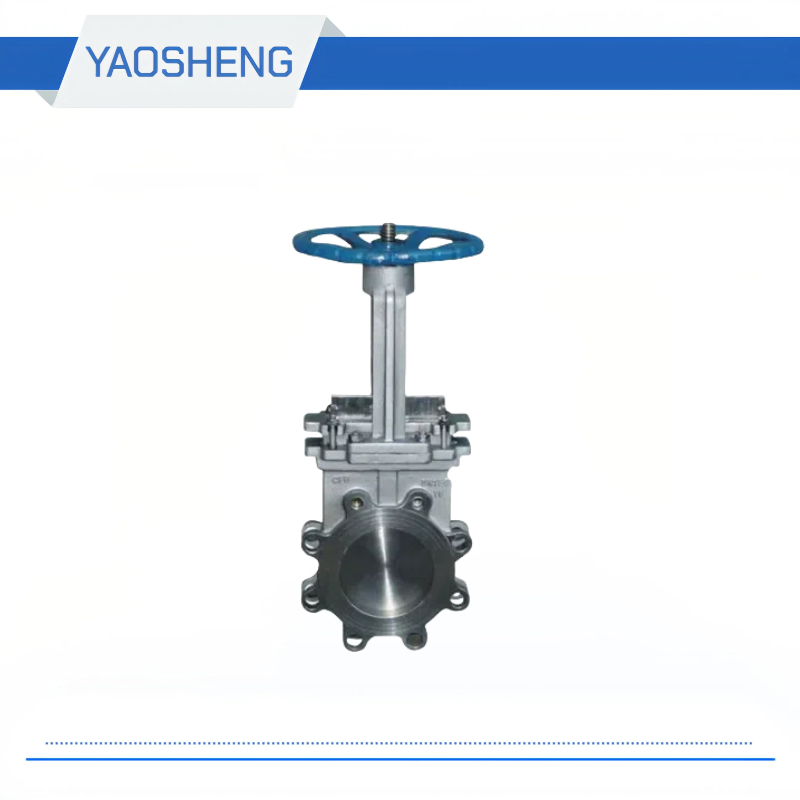

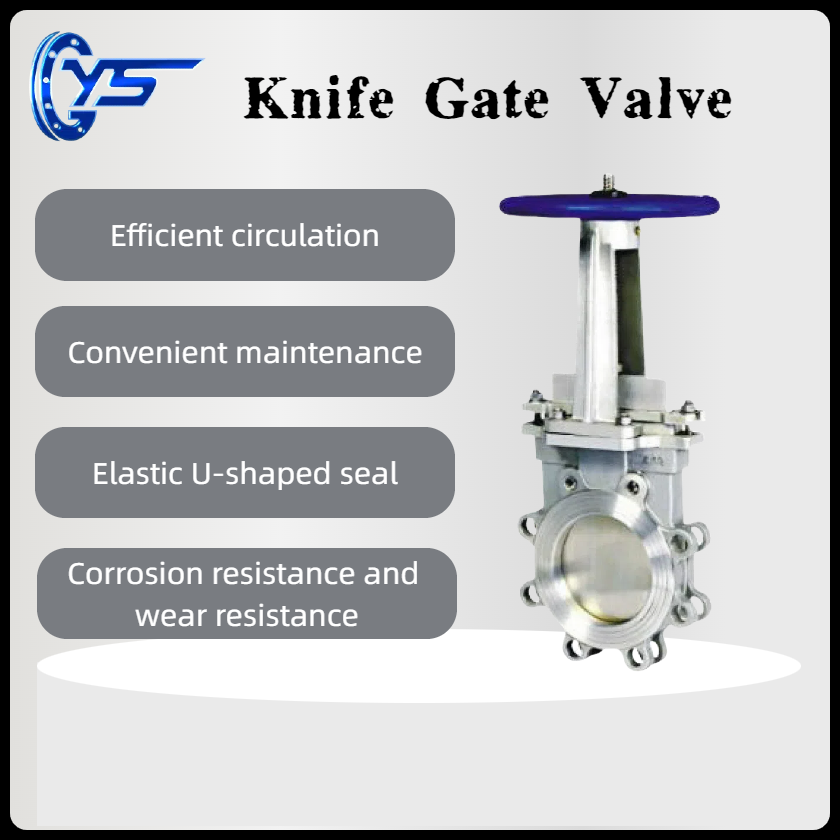

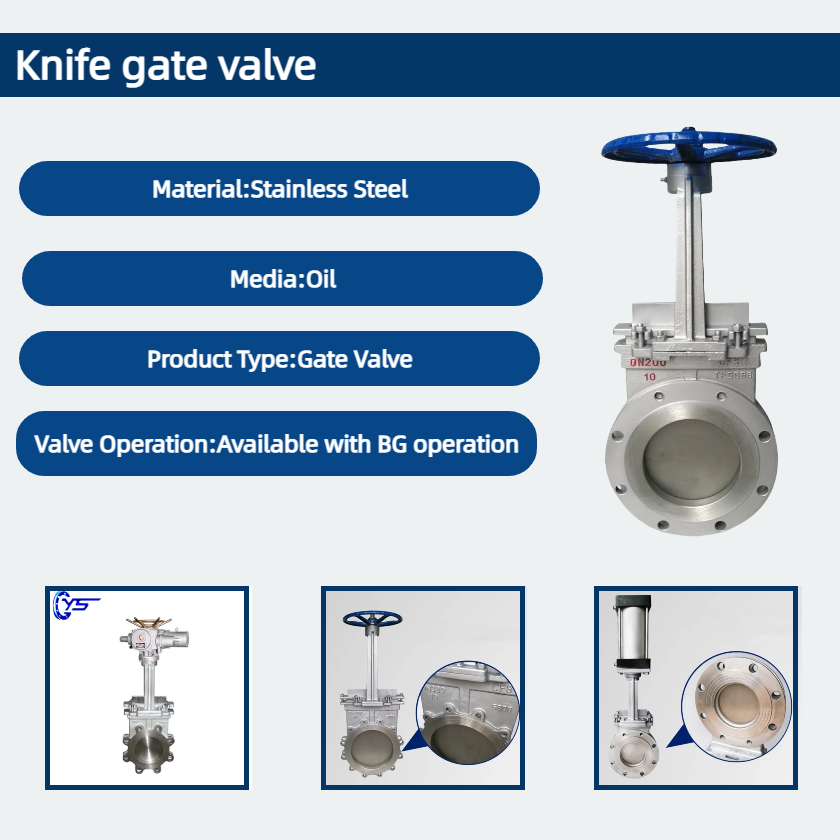

Material:Stainless Steel
Temperature of Media:Medium Temperature
Pressure:Medium Pressure
Power:Manual
Media:Water,oil
Product Type:Gate Valve
Valve Material:Stainless Steel 304 / 316/316L
Valve Operation:Available with BG operation

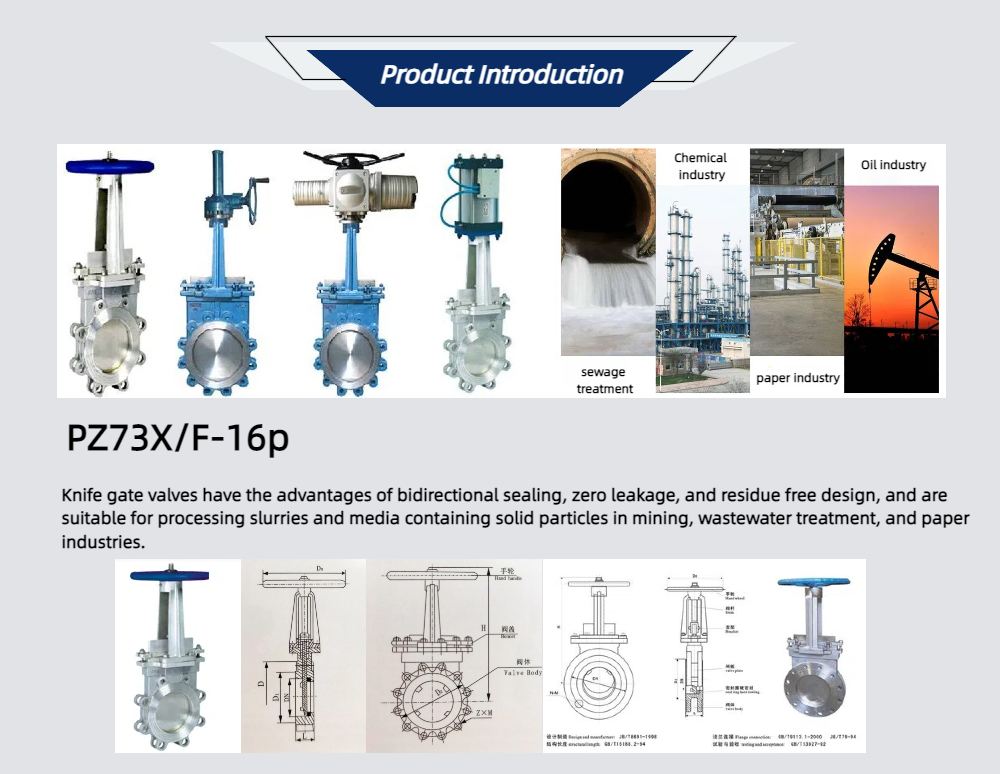

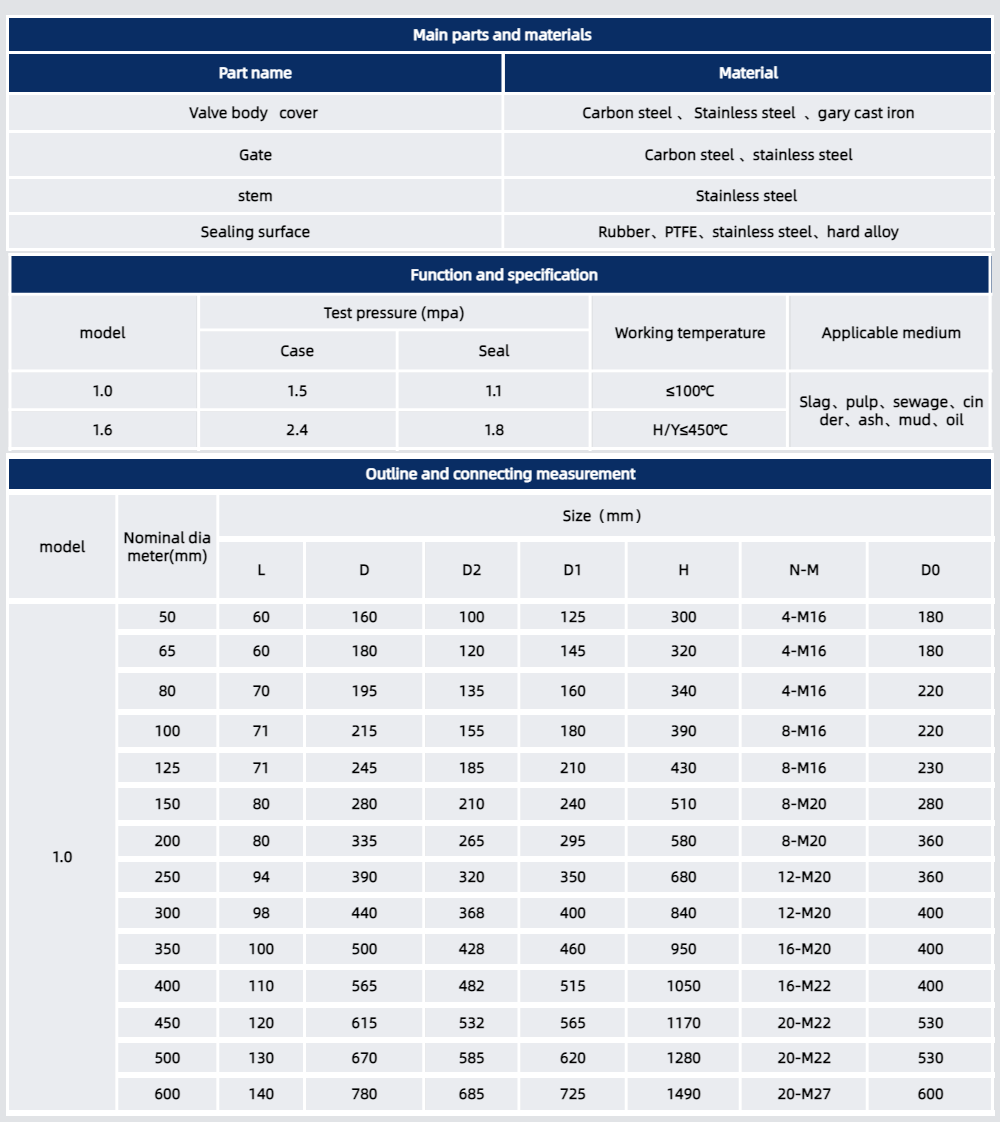

| Main parts and materials | |
| Part name | Material |
| Valve body cover | Carbon steel 、Stainless steel |
Gate | stainless steel |
| stem | Stainless steel |
| Sealing surface | Rubber、PTFE、stainless steel |
| Function and specification | ||||
| Model | Taet pressure(MPa) | Working temperature | Applicable medium | |
| Case | Seal | |||
| 1.0 | 1.5 | 1.1 | ≤100℃ | Slage、pulp、sewage、Cinder、ash、mud、oil |
| 1.6 | 2.4 | 1.8 | H/Y≤425℃ | |
| Outline and connecting measurement | ||||||||
| Model | Nominal diameter(mm) | Size (mm) | ||||||
| L | D | D2 | D1 | H | N-M | D0 | ||
| 1.0 | 50 | 60 | 160 | 100 | 125 | 300 | 4-M16 | 180 |
| 65 | 60 | 180 | 120 | 145 | 320 | 4-M16 | 180 | |
| 80 | 70 | 195 | 135 | 160 | 340 | 4-M16 | 220 | |
| 100 | 71 | 215 | 155 | 180 | 390 | 8-M16 | 220 | |
| 125 | 71 | 245 | 185 | 210 | 430 | 8-M16 | 230 | |
| 150 | 80 | 280 | 210 | 240 | 510 | 8-M20 | 280 | |
| 200 | 80 | 335 | 265 | 295 | 580 | 8-M20 | 360 | |
| 250 | 94 | 390 | 320 | 350 | 680 | 12-M20 | 360 | |
| 300 | 98 | 440 | 368 | 400 | 840 | 12-M20 | 400 | |
| 350 | 100 | 500 | 428 | 460 | 950 | 16-M20 | 400 | |
| 400 | 110 | 565 | 482 | 515 | 1050 | 16-M22 | 400 | |
| 450 | 120 | 615 | 532 | 565 | 1170 | 20-M22 | 530 | |
| 500 | 130 | 670 | 585 | 620 | 1280 | 20-M22 | 530 | |
| 600 | 140 | 780 | 685 | 725 | 1490 | 20-M27 | 600 | |
