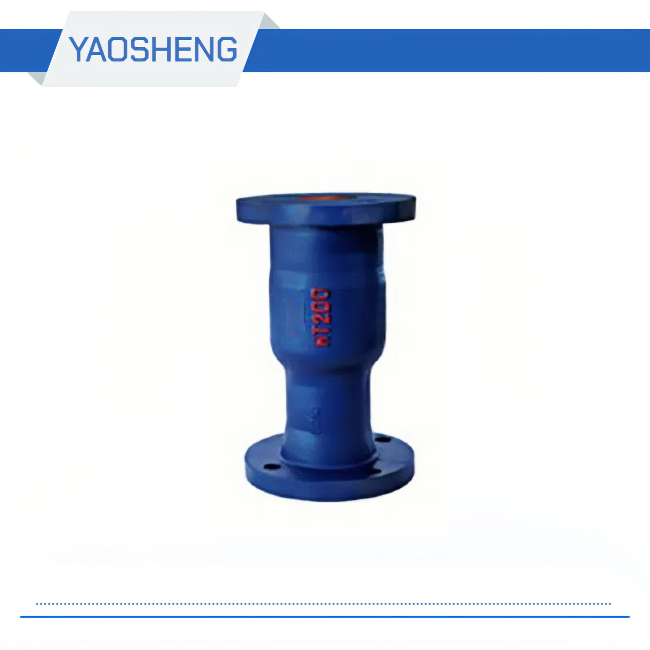

  • H42S-16 Vertical Horizontal Check Valve ( for Verticl Or Horizontal Use)

H42S-16 Vertical Horizontal Check Valve ( for Verticl Or Horizontal Use)

Medium: water, steam

Use temperature: ≤200 ℃

Caliber: DN40-100

Pressure: 1.6mpa

Body material: gray cast iron

Connection method: flange


Product Details

H42S-16 Vertical Horizontal Check Valve Material of main parts
Part Namematerial
Valve bodygrey cast iron
Discstainless steel
BonnetGray cast iron + brass

Application: This valve can be used to control pipeline medium backflow in petroleum, chemical, water supply and drainage systems.

H42S-16 Check valve

Performance specifications of vertical and horizontal check valve H42S
modelNominal pressure
(mpa)
Test pressure (mpa)proper temperatureApplicable medium
Strength (water)Sealed (water)
H42S-161.60 2.40 1.76 ≤200 ℃steam


Vertical and horizontal check valve H42S overall dimensions and connection dimensions
modelNominal diameter
(mm)
Size (mm)
LDD1D2bfZ-φd
H42S-16402001451108518-34-18
5023016012510020-34-18
6529018014512020-34-18
8031019516013522-38-18
10035021518015524-38-18
