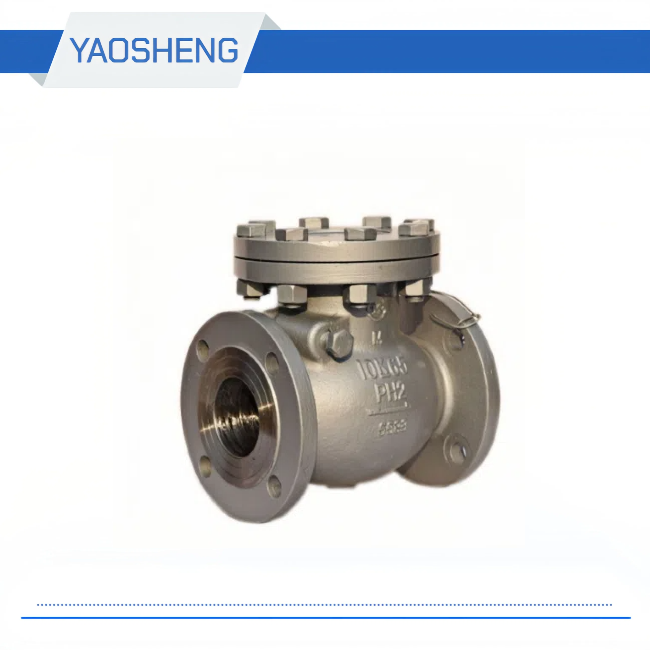

Material:Stainless Steel
Temperature of Media:Normal Temperature
Pressure:Low Pressure
Power:Manual
Media:Oil
Port Size:50A-600A
| Main parts and materials | |
| Parts name | Material |
| Valve body Bonnet | Grey iron Grey steel Stainless steel |
| Wedge | Grey Iron Grey steel Stainless steel |
| Function and specification | |||||
| Type | Nominal pressure(MPa) | Testing pressure | Suitable temperature(℃) | Suitable medium | |
| Strength (Water)(MPa) | Enclose (Water)(MPa) | ||||
| H44T/W-16 | 1.6 | 2.4 | 1.8 | ≤200 | Vapour Water Oil |
| Outline and connecting measurement | ||||||||
| Type | DN(mm) | Measurement(mm) | Reference Weight(kg) | |||||
| L | D | D1 | D2 | b-f | Z×φd | |||
| H44T/W-16 | 50 | 200 | 165 | 125 | 99 | 20-2 | 4-φ19 | 13 |
| 60 | 240 | 185 | 145 | 118 | 20-2 | 4-φ19 | 17.4 | |
| 80 | 260 | 200 | 160 | 132 | 22-2 | 8-φ19 | 24.4 | |
| 100 | 300 | 220 | 180 | 156 | 24-2 | 8-φ19 | 33.2 | |
| 125 | 350 | 250 | 210 | 184 | 26-2 | 8-φ19 | 52 | |
| 150 | 400 | 285 | 240 | 211 | 26-2 | 8-φ23 | 75.2 | |
| 200 | 500 | 340 | 2985 | 266 | 30-2 | 12-φ23 | 117 | |
